Practical application example.
In order to determine all electrical lines of a house within one working
process, proceed as follows:
Remove the bridge in the main distribution between " PE " and " N ".
Warning: For safety reasons, the system must not be live!

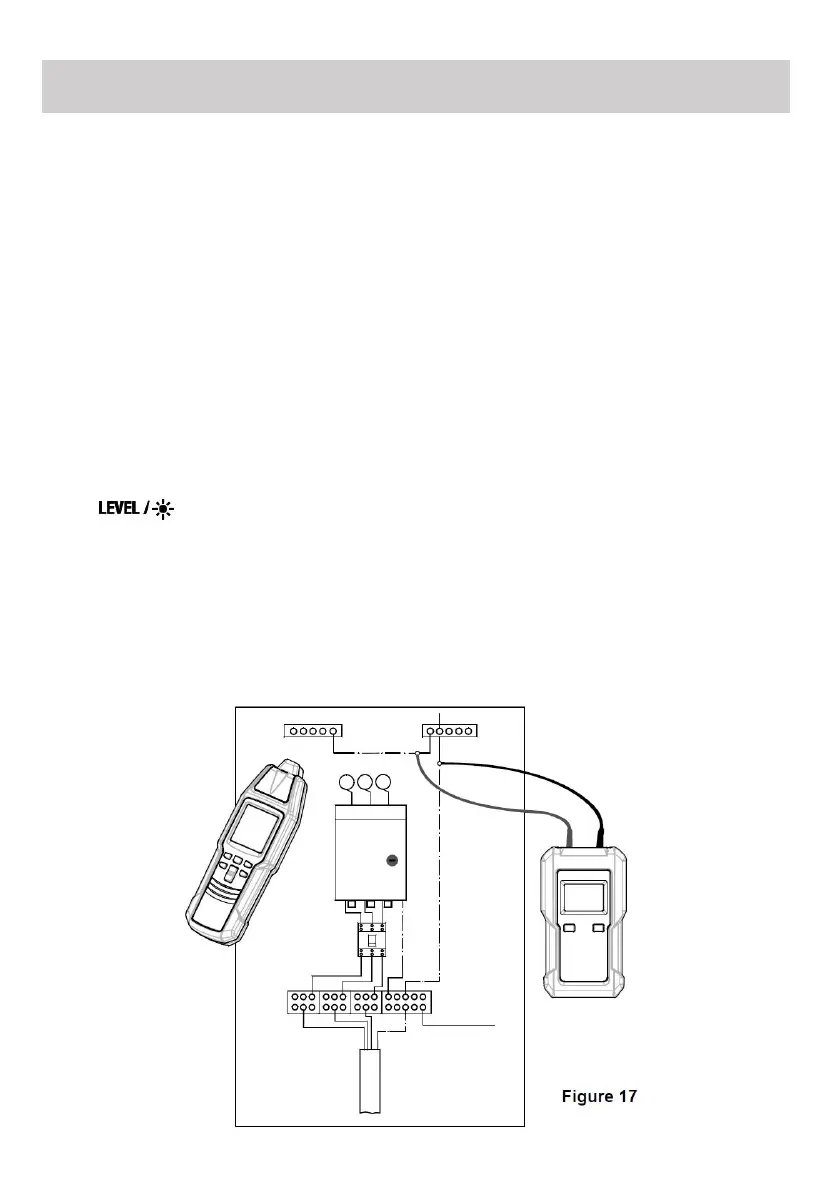

Connect the transmitter to the system in compliance with Figure 17.
Now, the neutral conductor present in the system may be followed.
Note:
Increasing the transmission level from level 1 to level 3 with the
" " button increases the detecting distance of the receiver by
a factor of about 4.
Setup of the receiver: manual mode, minimal sensitivity. If necessary,
adjust the sensitivity of the receiver according to the actual condition
during detection.
Max. tracing depth: about 2 meters
Locating a complete house wiring ( one-pole application )
