Requirements:
All circuits within the cable must not be live.
The lead terminals must be twisted and electrically connected
between each other.
You need several transmitters with different transmission codes.

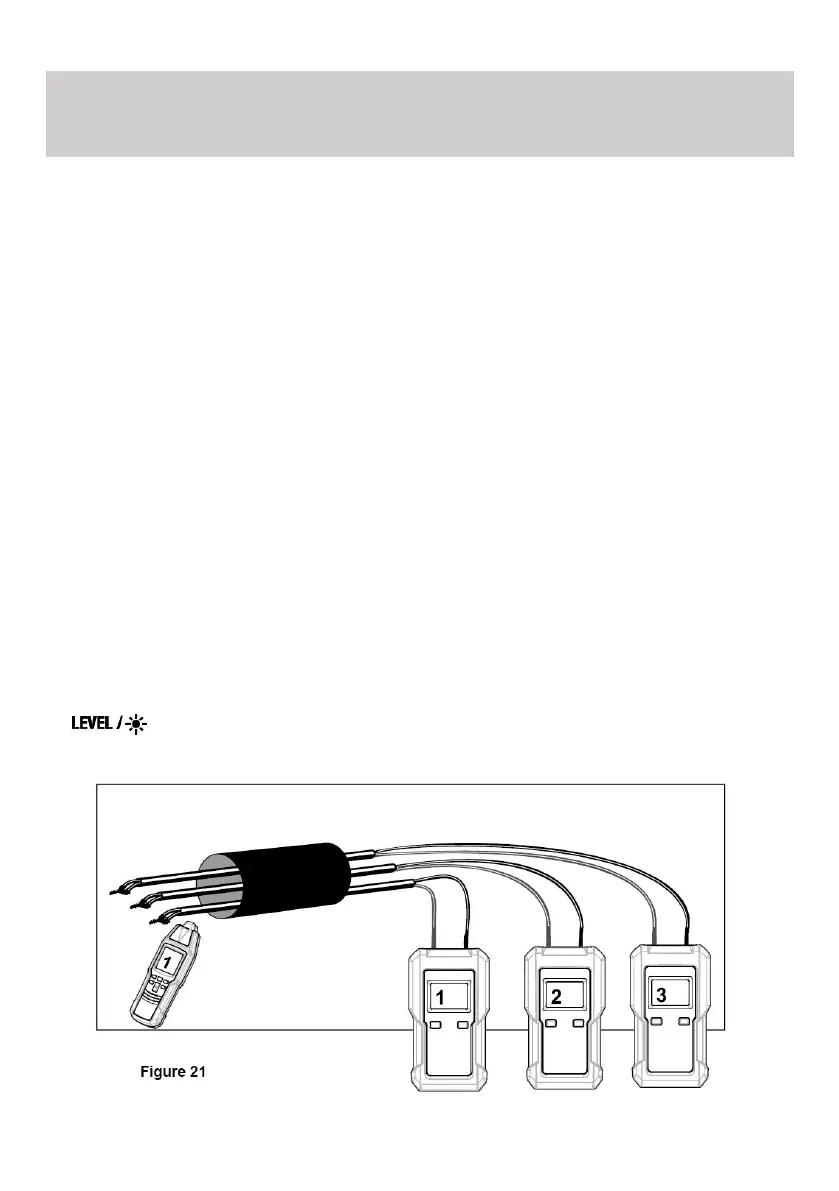

Connect the transmitter according to Figure 21.
Carry out this example as described in the application example.
For this application example, please notice that the stripped lead
terminals are twisted with each other.The electrical connection between
the stripped lead terminals must be good.
If you have only one transmitter, the sorting of the sheathed cables
can done by sequentially reconnecting the transmitter.
Note:
Increasing the transmission level from level 1 to level 3 with the
" " button increases the detecting distance of the receiver by a
factor of about 4.
Sorting or determination of conductors already installed
( double-pole application )
