33
FLX-20
™
OPERATION

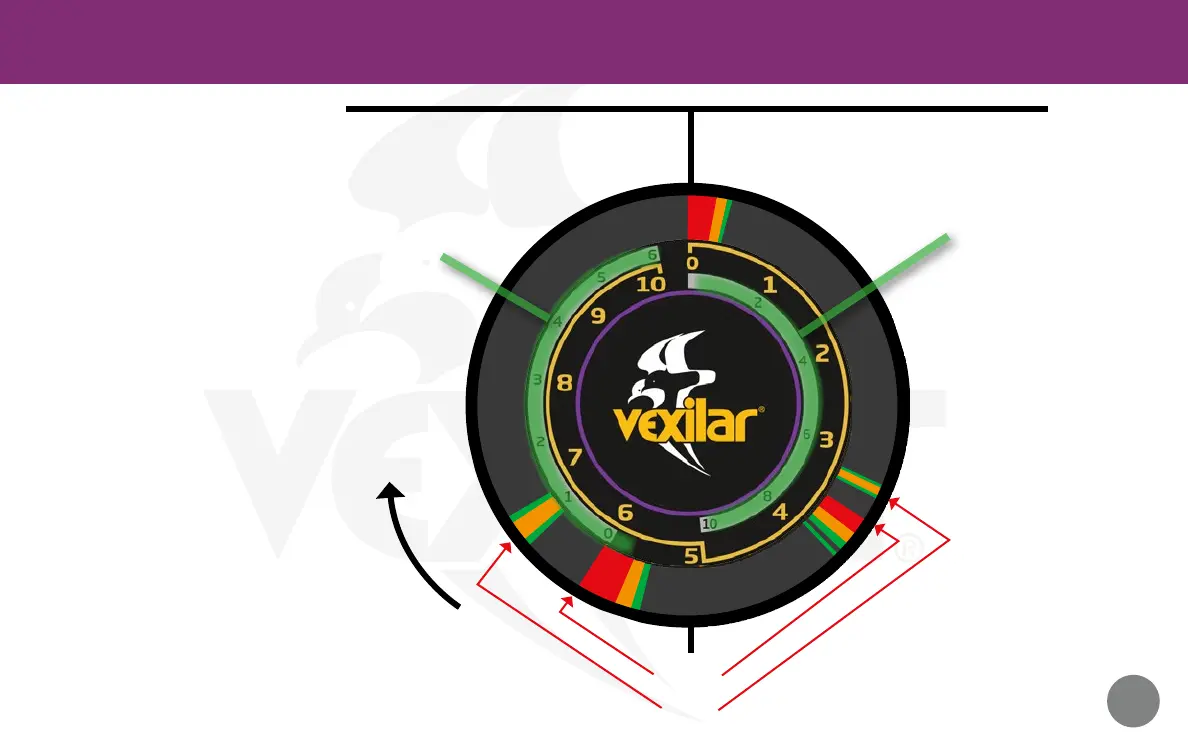

THE RIGHT HALF represents the entire water
column from the transducer to the bottom. Read
the depth using the inner white scale.
THE LEFT HALF represents the zoom view.
From the bottom up to 6 or 12 feet. Read the
distance from the bottom using the
large white scale.
The Zoom scale reads in the opposite
direction as the full view scale. The
bottom will always be at the 7 O’clock
position. Objects will appear above this
point. You can only see objects as far
o the bottom as the zoom setting permits,
either 6 feet or 12 feet. Objects above this depth
will only appear on the right side which shows the
entire water column.
Interpret the depth by
multiplying the value
indicated on the white
scale by the multiplying
factor here:
10' Range = 10
20' Range = x2
30' Range = x3
40' Range = x4
80' Range = x8
100' Range = x10
Auto Zoom
Auto Zoom (AZ) puts the asher
into a split-screen view, with the
complete water column on the
right and a magnied view from
the bottom up on the left. When
you switch to Auto Zoom Mode,
the asher automatically selects
the magnied bottom view for
you, provided the asher is set to a
depth range in which the bottom
is in view. There are two Auto
Zoom modes: 6 foot and 12 foot.
Bottom
Fish
