45

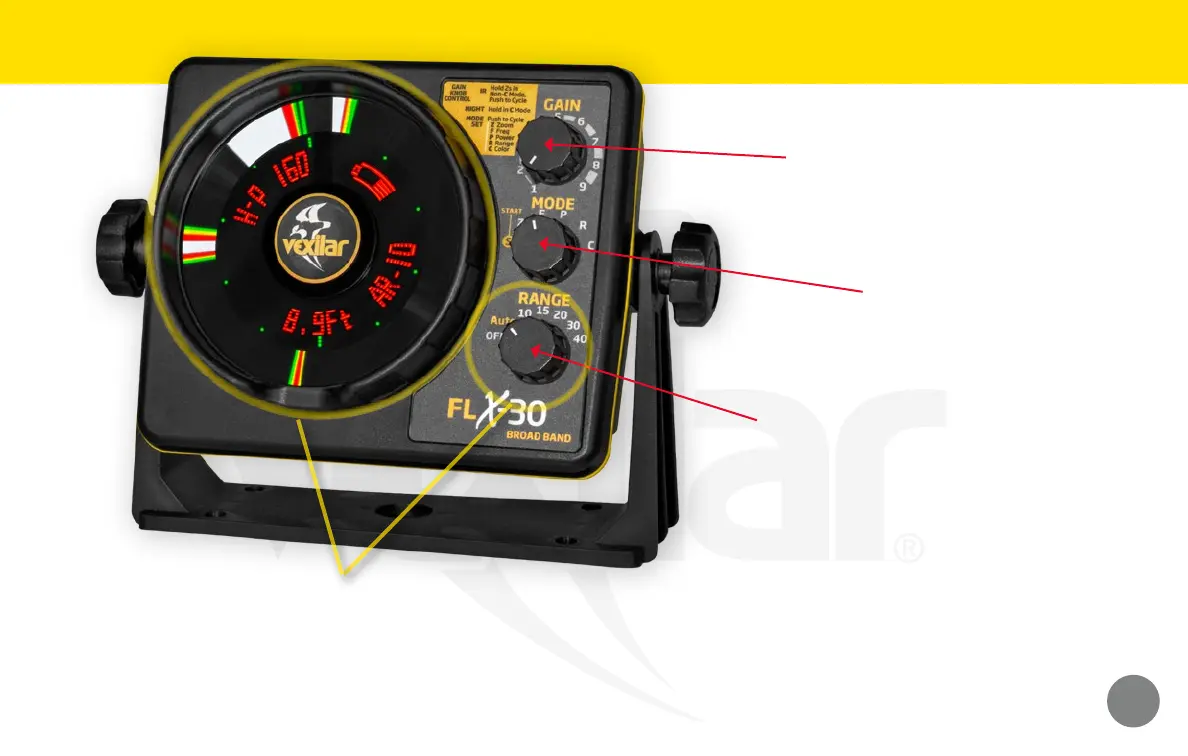

Mode Control
This sets the FLX-30’s
current operating mode.
See following pages.
Gain Control
Keep the gain low. Increase it only enough
to see clear bottom or your bait. The Gain
Control also controls a number of other
features. See following pages.
The “AUTO” setting automatically selects the correct depth range to maximize the display area. The shallowest range in the Auto
setting is 0–10 feet. If you are shing only 8 feet of water, in the “AUTO” Mode setting the entire dial of the display will be dedicated
to 10 feet and less. To override the AUTO feature, simply change the Range Control to the desired depth setting. The digital display on
the inner dial of your Vexilar unit will display the current depth and also the current range setting. For example, the display will read:
Depth “8.9Ft AR-10” (for Auto Range = 10 feet).
Setting the Range
The FLX-30 is equipped with a digital depth
readout on the inner display dial. “AUTO”
stands for “Auto Range.” You can also select
ranges manually.
FLX-30
™
BB OPERATION
