Multi-Layer Display

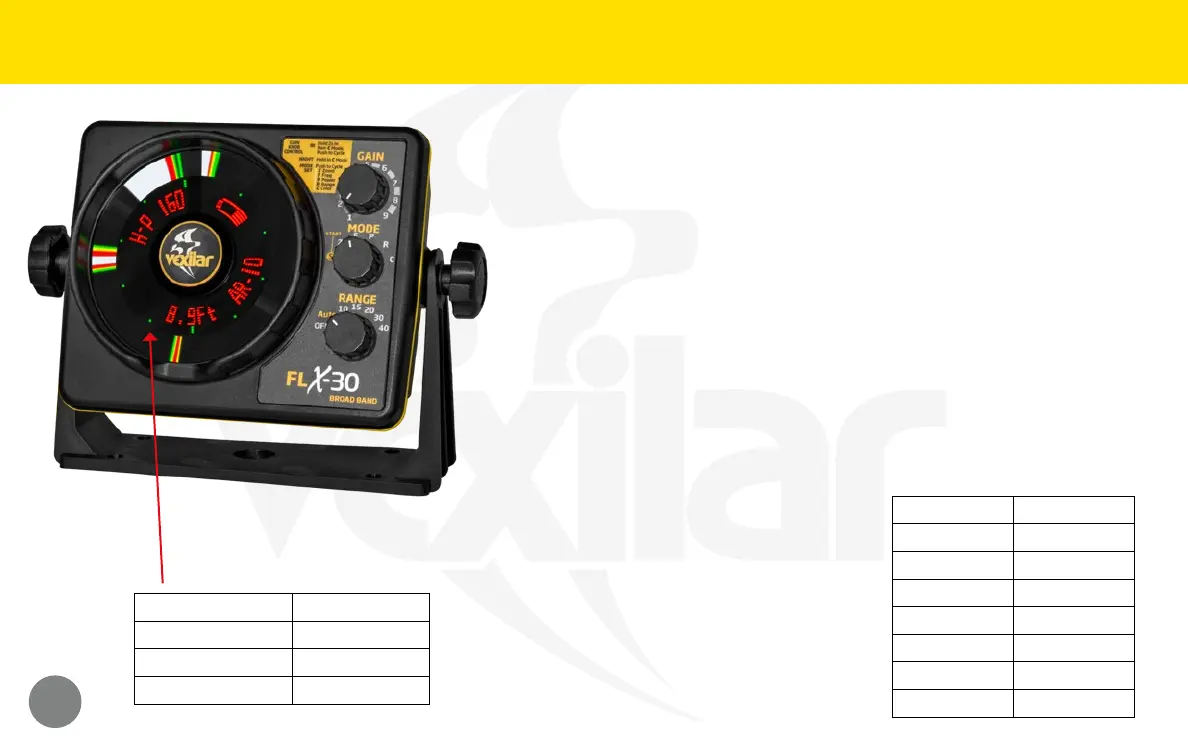

The FLX-30 incorporates a three-layer LED, spinning wheel display. The outer
color display layer is like our standard three-color Vexilar asher display. However,
with data transfer technology, we can oer more color palettes.
The inner layer on the display shows green marker for every foot of depth. This
makes it easy to position your bait one or two feet o the bottom without guessing.
As you change depth ranges, the green markers will correspond to the depth
changes as shown in the table in the lower-left of this page.
The third inner layer of the display will be in red, where you nd your Digital
Depth and Range settings. This area is also used to display battery levels, IR
setting levels and your mode settings.
Frequency vs Beam Angle
Each frequency has a dierent beam angle.
The lower the frequency, the wider the area
of coverage.
Green Foot Markers Range Settings
1ft 10 – 30ft
5ft 40 – 75ft
10ft 80 – 300ft
FLX-30
™
BB OPERATION
Frequency Beam Angle
160kHz 15°
180kHz 13°
200kHz 12°
225kHz 10°
250kHz 9°
275kHz 8.2°
300kHz 7.8°
To Next Page
