VIA Technologies EPIA-M850 User Manual

18

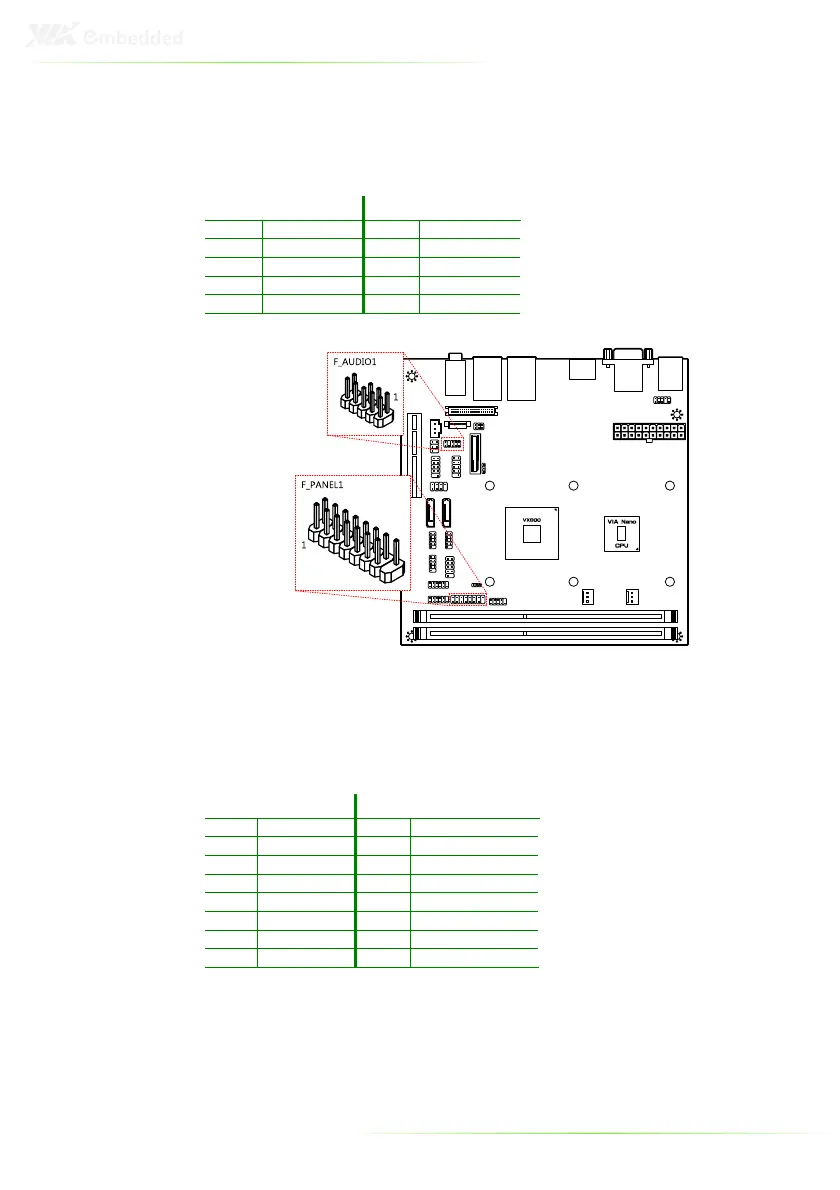

Front audio pin header
The mainboard has one pin header for connecting to front audio
Headphone-out and Mic-in jacks.
Pin Signal Pin Signal
1 LINE2R 2 LINE2L
3 NC 4 NC
5 MIC2_IN_R 6 MIC2_IN_L
7 — 8 NC
9 GND 10 GND
Front panel pin header
The mainboard has one pin header for connecting to front panel
switches and status LEDs.
Pin Signal Pin Signal
1 +5VDUAL 2 +5V
3 +5VDUAL 4 HD_LED
5 PW_LED 6 PWR_BTN
7 +5V 8 GND
9 NC 10 -RST_SW/-SUSB
11 NC 12 GND
13 SPEAK_BZ 14 +5V
15 — 16 NC
