Memory Slot: DDR2 DIMM
The VIA EPIA-SN Mini-ITX mainboard provides two 240-DIMM slots for DDR2
667/533 SDRAM memory modules and supports memory sizes up to 4GB.
VT8251
CN896
VIA
C7 NanoBGA2

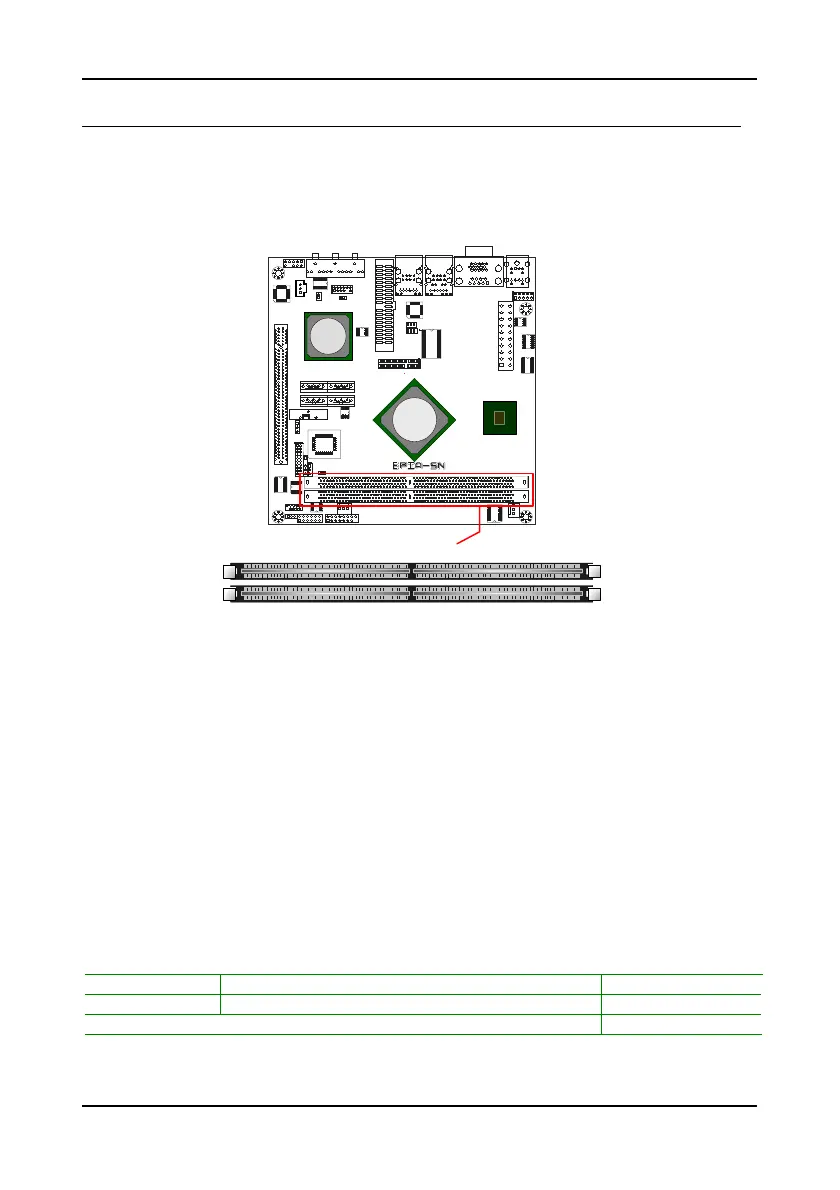

DDR2 DIMM slots
DDR2 SDRAM Module Installation Procedures
• Locate the DIMM slot in the motherboard.
• Unlock a DIMM slot by pressing the retaining clips outward.
• Align a DIMM on the socket such that the notch on the DIMM
matches the break on the slot.
• Firmly insert the DIMM into the slot until the retaining clips snap
back in place and the DIMM is properly seated.
Available DDR2 SDRAM Configurations
Refer to the table below for available DDR2 SDRAM configurations on the
mainboard.
Slot Module Size Total
DIMM1 64MB, 128MB, 256MB, 512MB, 1GB, 2GB 64MB - 2GB
DIMM2 64MB, 128MB, 256MB, 512MB, 1GB, 2GB 64MB - 2GB
Maximum supported system memory 64MB - 4GB
