the CD in CD-ROM drive labeled as D).
3. Follow any on-screen instructions to complete the software
installation.
4. Restart your system.
5. Once you have rebooted the computer, this 7.1 Channel PCI
Sound card is ready to be used.

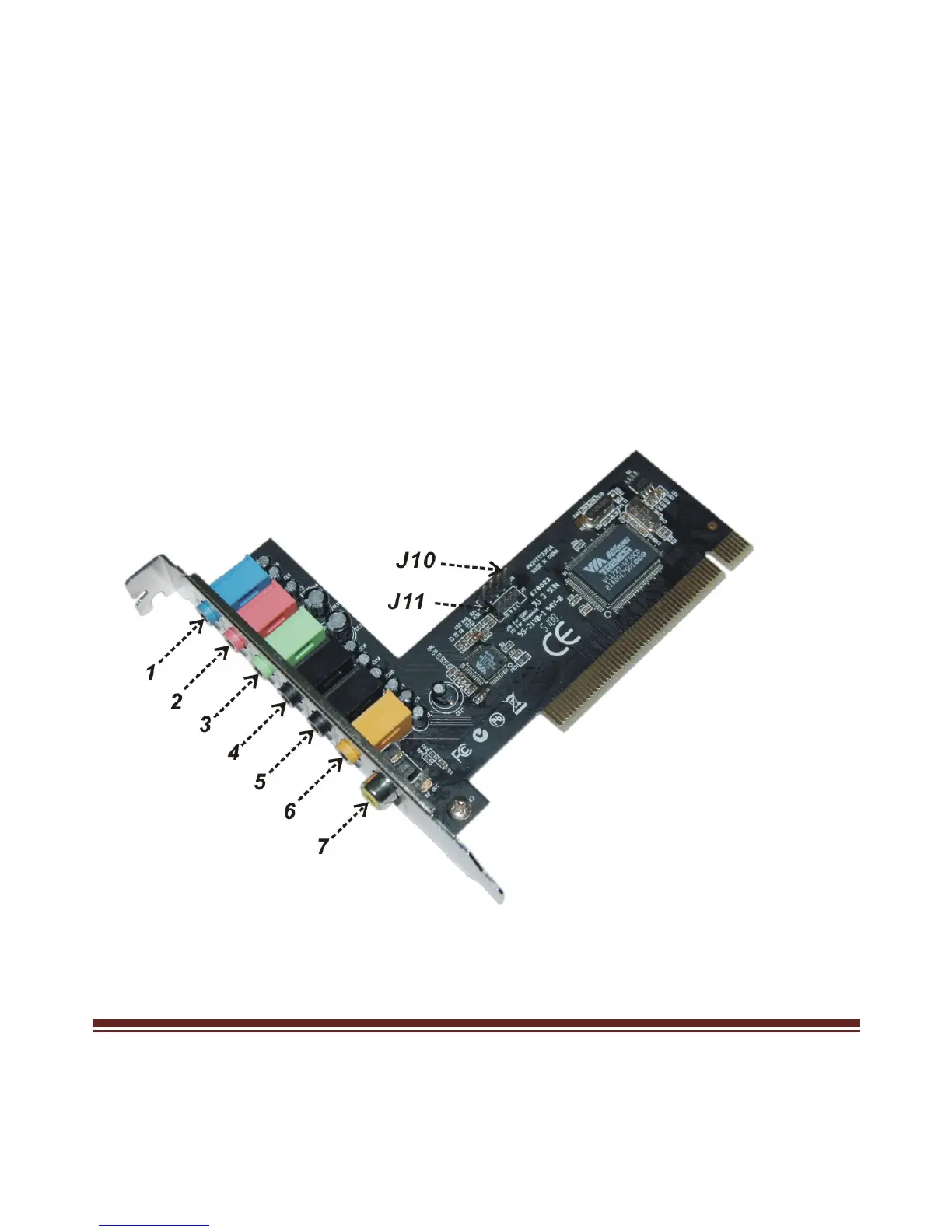

Physical Connections
The rear panel of this 7.1 Channel PCI Sound Card has the following
jacks:
