1. Boiler drum complete with valves
2. Complete boiler jacket according to the given size
3. Heating water flange
4. Return water flange
5. Control box with s thermomanometer
6. Tow bar
7. Slant bushing
8. Suspension pin
9. Sealing Ø 90 x 60 x 3
10. Choker screw
11. Label of smoke flap control
12. Plastic ball M10
13. Front draught controller
14. Filling and draining cock
15. Bushing HEYCO
16. Blind flange 19
17. Blind flange 15,9
18. Washer 10,5
19. Nut M10
20. Washer 5,3
21. Screw M5 x 12
22. Lock 2,5 x 20

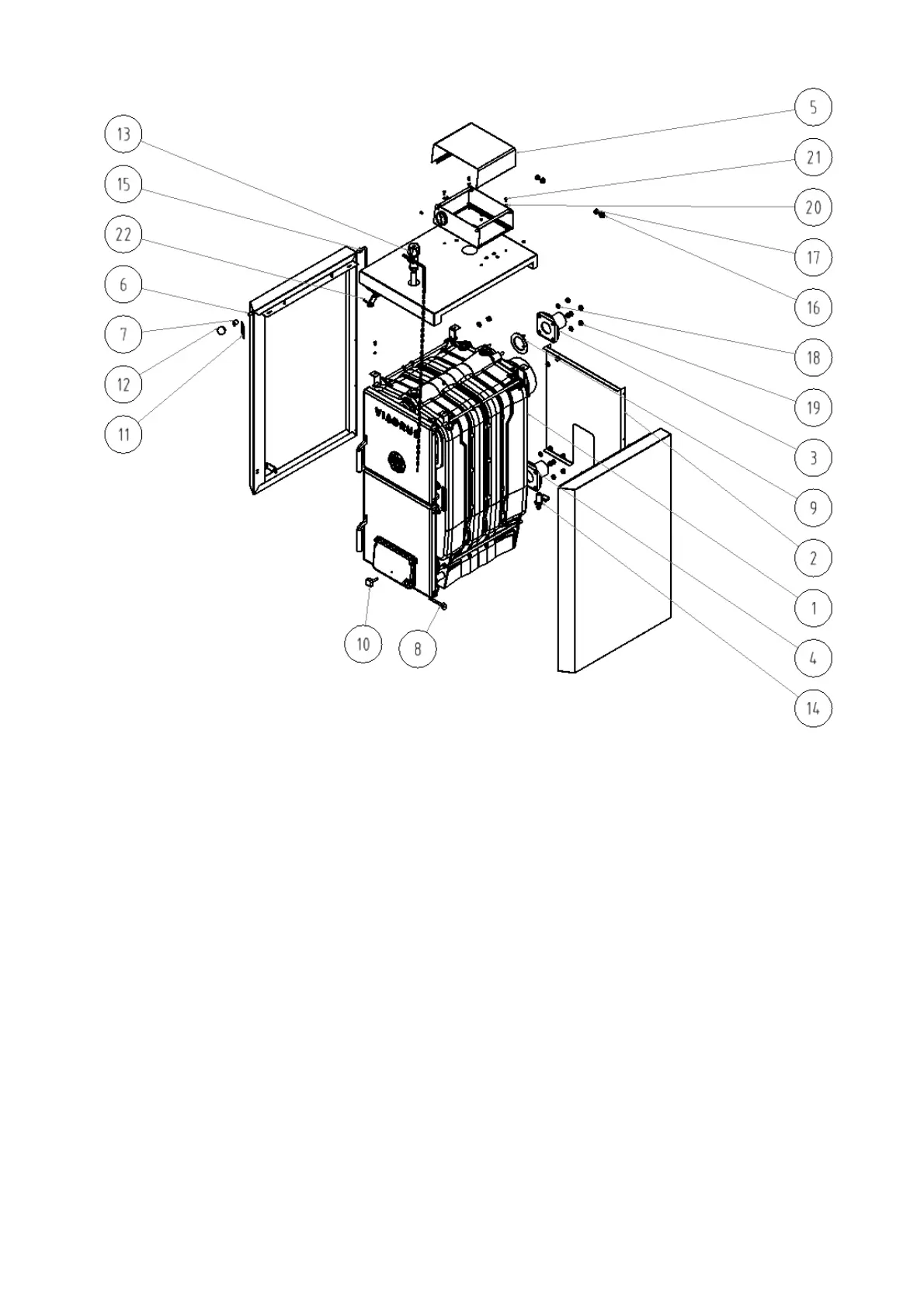

Fig. no. 4 Assembly of VIADRUS HERCULES U 22 boiler with the box
