Step Seven.

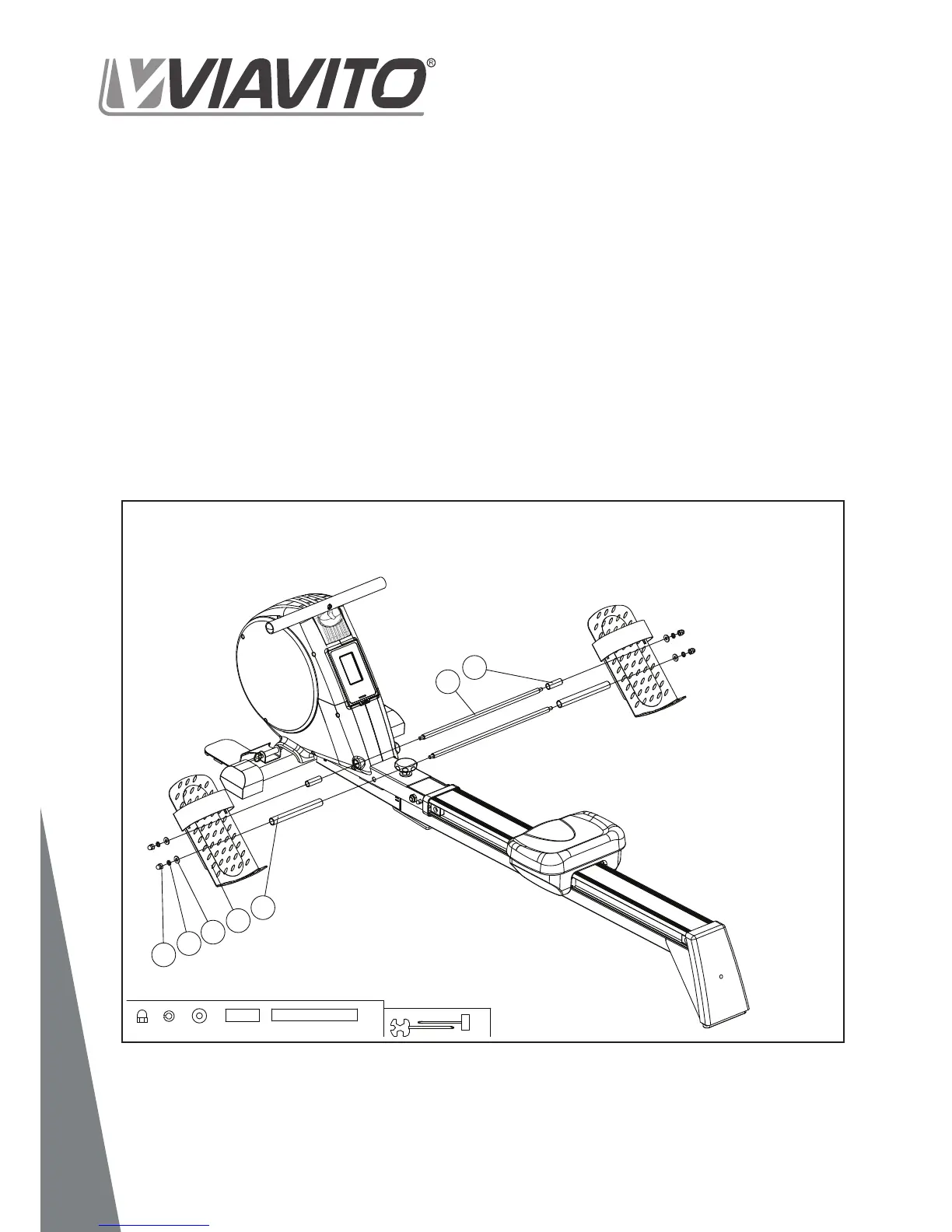

01 Push the pedal rods (119) through the
openings in the main frame at the front
of the rail.
02 Slide one rubber sleeve (124) onto each
end of the rod (119) nearest to the back
of the rower. Slide one spacer sleeve
(114) onto each end of the rod (119)
nearest the front of the rower.
03 Slide the pedals (65) onto the front
pedal rod (119) and secure them with
the washer (115), the lock washer (116)
and the nut (117) in that order on both
sides of both pedal rods. The pedals
are labelled left and right but can go on
either side, with the butt of the pedal
down.
04 Check both straps are secure and that
the pedals are secure and pivot on
the bar.
7
*2
*1
114
119
117
116
115
65
124
To Next Page
