P.7
2.Setting Rudder Servo Direction (REVERSE SWITCHES)

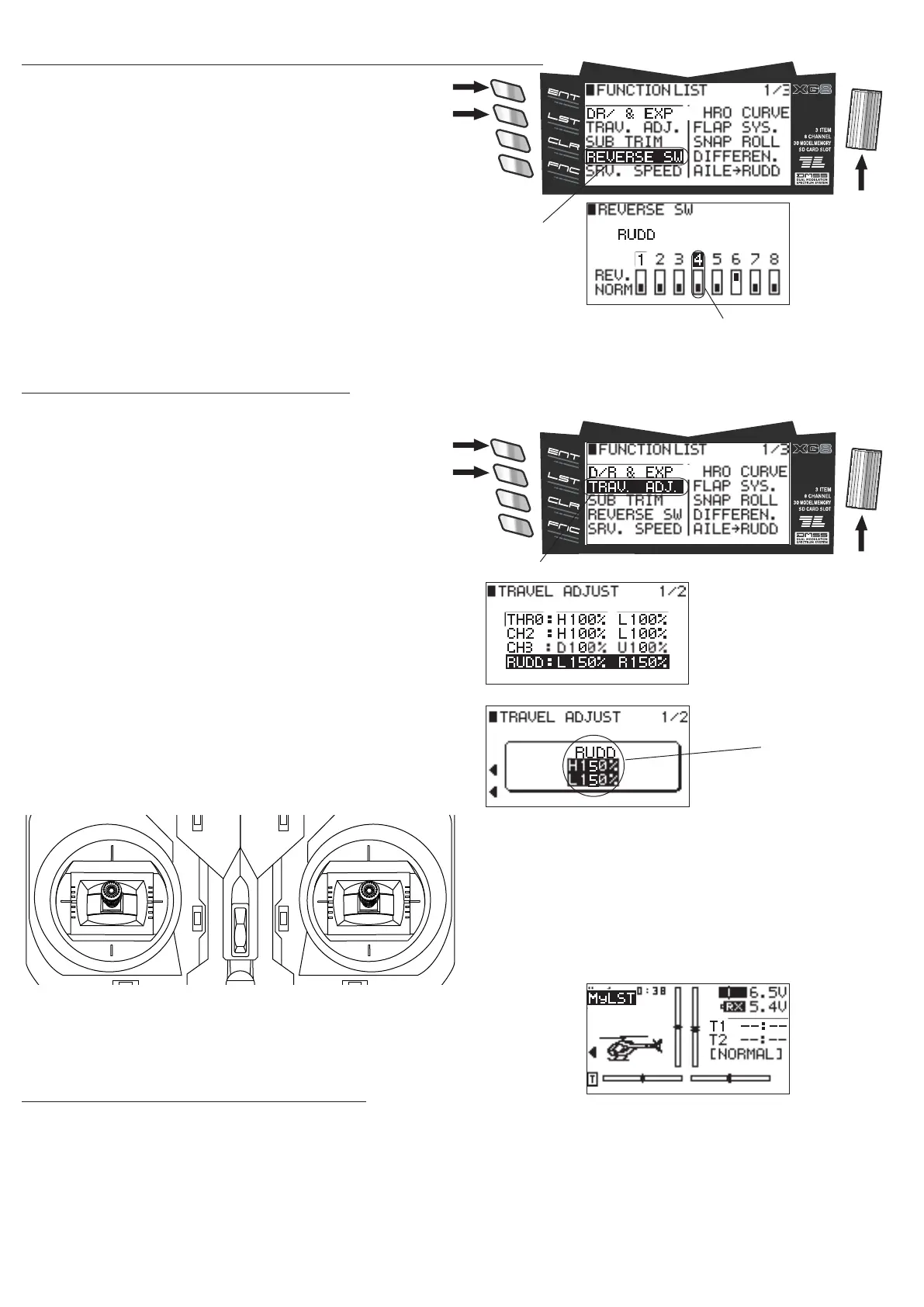

① Press the 【LIST】 key to display 「FUNCION LIST
1/3」.
Turn the dial to display 「REVERSE SW」 and press.
② Turn the dial to reverse 「4 (RUDD)」 as necessary.
③ Press the 【ENT】 key to return to the regular screen.
3. Setting the TRAVEL ADJ. Values
① Press the 【LIST】 key to display 「FUNCTION LIST」.
Turn the dial to select 「TRAV.ADJ.」 and press.
② Turn the dial to select each item and press.
③ Turn the dial to input the number shown in the
gure.
※ Use the appropriate control stick to switch between
H/L, U/D or L/R.
④ Press the 【ENT】 key to return to the regular screen.
Setting for other models of Radio set.
※ 1 If you use a transmitter other than the JR XG8 (or DSX11 as described above), please refer to the
manufactures instruction manual.
※ 2 Please refer to your tail gyro instruction manual for advise on tail rotor setup and initial transmitter
settings.
※ 3 If you are using a FBL system other than the TAGS01, please refer to your FBL system manual.
①
①
④
③
②
②,③
① select
「REVERSE SW」
① Select「TRAV. ADJ.」
※ Note: The rudder reverse switch direction will depend
on the servo and gyro/FBL unit used. Please refer to
your gyro/FBL unit instruction manual for further details.
③ Input the number
※ Note that the 「THRO」 direction and travel adjust
settings will depend on the ESC used.
