Electronic Dashboard
The electronic dashboard includes an easy-to-read
electronic display and maintenance minder. The electronic
display monitors critical mower information including fuel
level, running hours, and cutting height (see Figure 3).
Total Trip / Hours
Total Trip / Hours
MODE
RESET
Total Trip / Hours Total Trip / Hours
> 3 sec
< 1 sec
F. Height-of-Cut
G. Control Buttons
H. Message Panel
• Low Fuel
• Low Battery
• Change Oil
• Change Air Filter
• Sharpen Blades
I. Indicator Light (see Message Panel)
The built-in maintenance minder tells you when to change
the oil, air filter, or sharpen the blades. An amber indicator
light turns on to alert you and the required maintenance is
displayed on the message panel. The electronic dashboard
also includes a digital clock.
Cut Height
4
3
2
1
F
E
Oil Change
Total Trip / Hours AM PM
Air Filter Sharpen
RESET
SCROLL
MODE

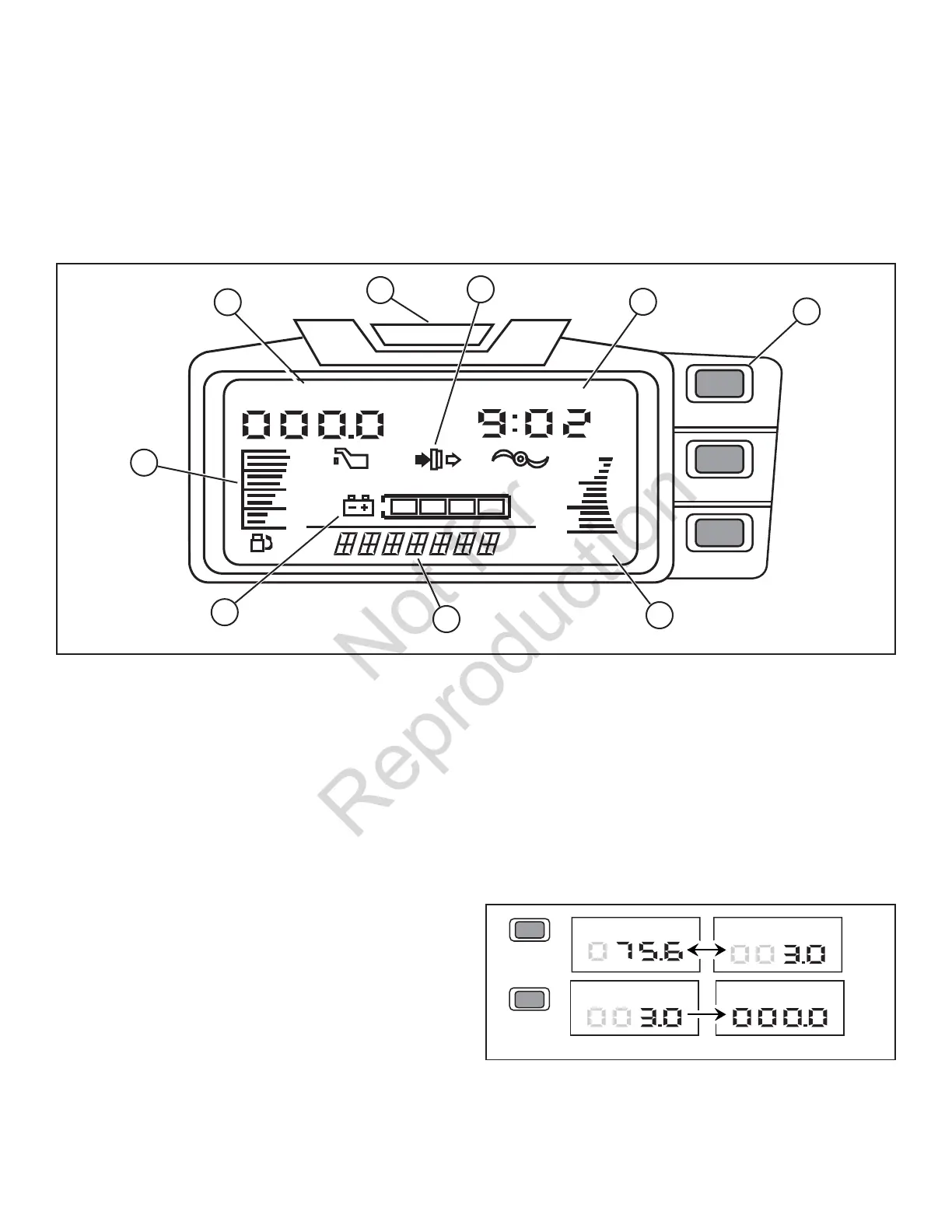

Figure 3
A
B
D
E
F
H
G
C
I
Display Total Hours, Trip Hours, and Clock
NOTE: Whenever you start up the unit, the Total Hours are
displayed. The Total Hours will automatically reset to 0 after
999.9.
1. Press MODE for less than 1 second to display the Trip
Hours.
2. Press RESET for greater than 3 seconds to reset the Trip
Hours to 0.
3. Press MODE for less than 1 second to display the Clock
(see Set the Clock section).
4. Press MODE for less than 1 second to return to Total
Hours.
