ASSEMBLY PROCEDURES

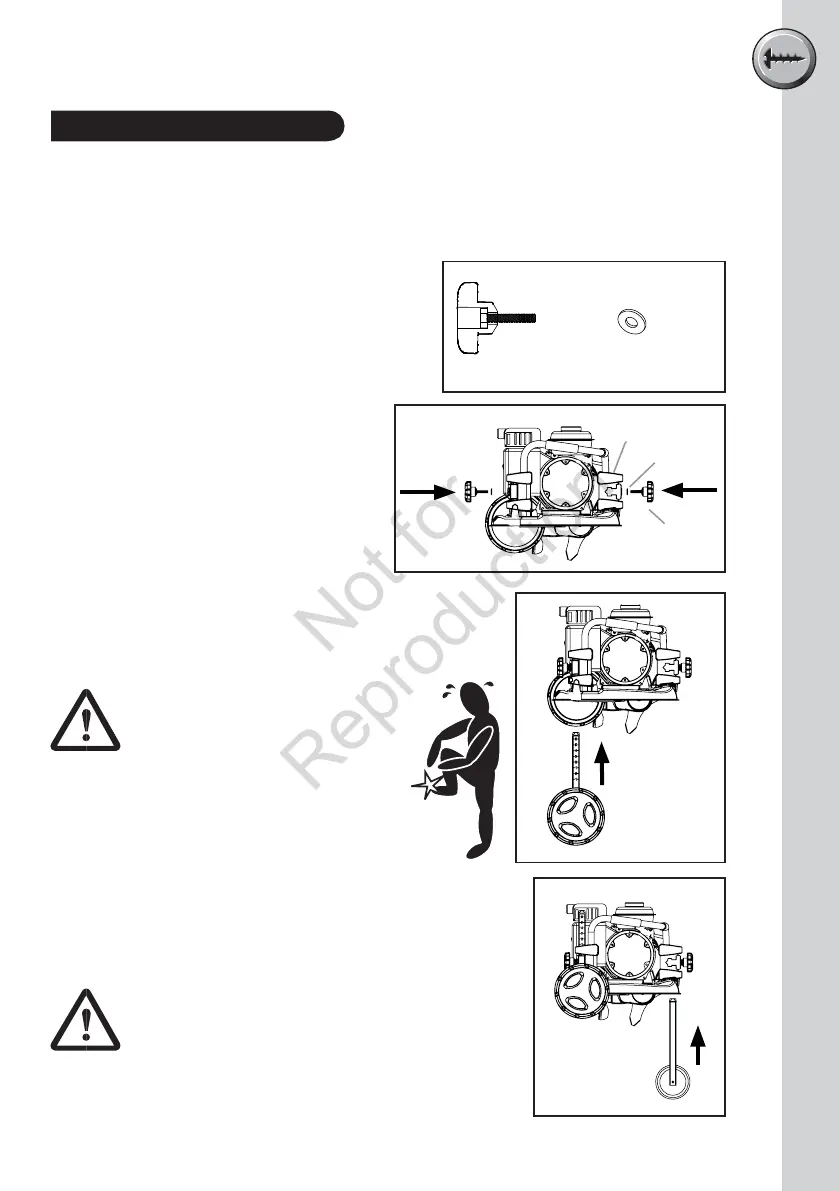

Assembling the wheels
1. Remove edger and components from the carton.
Note: Remove the upper handle and place on the ground before lifting the Edger
chassis from the carton.
2. Locate the mounting bracket tension knobs x 2,
M8 knob bolts x 2 and washers x 2
3. Screw knobs and washers into the bracket.
'SPOUXIFFMNPVOUJOHCSBDLFU
4. Repeat step 3 for the
3FBSXIFFMNPVOUJOHCSBDLFU
5. Locate the rear wheel assembly post and insert into the right
rear wheel mounting bracket.
Adjust to the desired height & tighten knob firmly.
6. Locate the front roller assembly and insert into the front wheel
UIFNPVOUJOHCSBDLFU4FUUJOHUIFIFJHIUPGCPUISPMMFS
XIFFMBUGPSTUBSUJOHBOETUPSBHFJTSFDPNNFOEFE
Adjust to the desired height & tighten knob firmly.
Wheel assembly
2.
3.
5.
6.
WARNING!
TAKE CARE WHEN ADJUSTING
HEIGHT - KEEP FEET & HANDS
AWAY FROM UNDER EDGER
TO PREVENT STRIKING FROM
UNIT HEIGHT DROPPING.
WARNING! HAND & FINGER PINCH HAZARD
TAKE CARE & USE CAUTION WHEN ASSEMBLING
TO PREVENT PINCHING.
x 2 x 2
Bracket
Knob
Washer
