LIGHT STANDBY UP DOWN ESC SET (Enter)
Press and Hold Press and Hold Press and Release Press and Release Press and Release Press and Release
Long press (>5
sec) Toggles light
on and o. If
LED is on, light is
activated
Places unit in
Standby Mode. If
LED is on. Device
is o.
Scrolls the menu
items Increases
the values. Long
press (>5 sec)
starts manual
defrost
Scrolls the menu
items Decreases
the values. Long
press (> 5 sec)
Starts deep
cooling cycle
Returns up one
level with respect
to the current
menu. Conrms
the parameter
value
Accesses
the machine
status menu
and displays
any alarms (if
present)

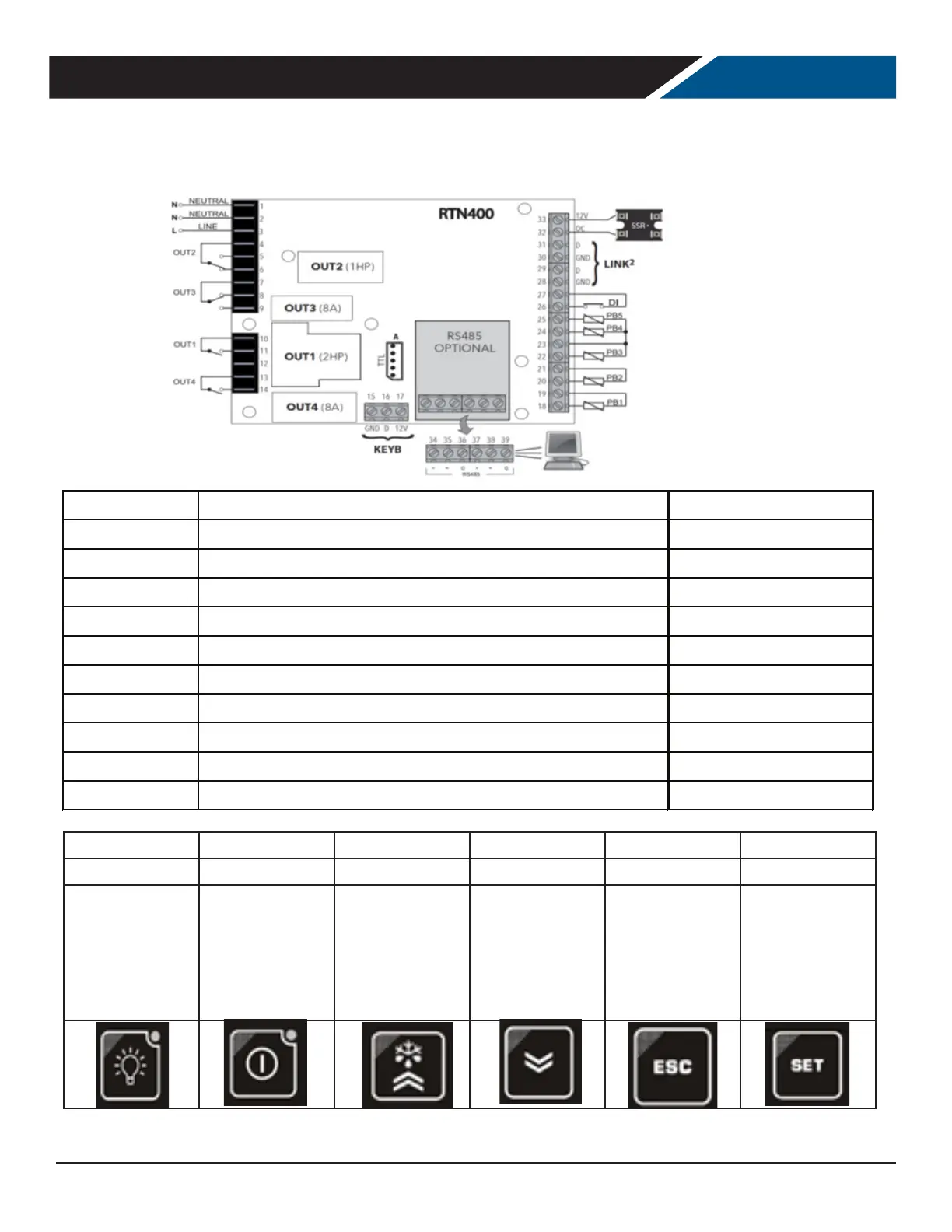

Relay/Probe Descrip�on Terminal
Out 1
Compressor 10,11
Out 2
Evaporator Fan 4, 5
Out 3
Defrost Element 7, 9
Out 4
Light (or alarm relay if electronic Lock model) 13, 14
PB1 –
Air/control probe 18, 19
PB2
Evaporator/defrost probe 20, 21
PB3
Evaporator 2 probe 22, 23
PB4&5
not used
DI
digital input/Door switch 26, 27
KEYB
Display connec�on 15, 16, 17
