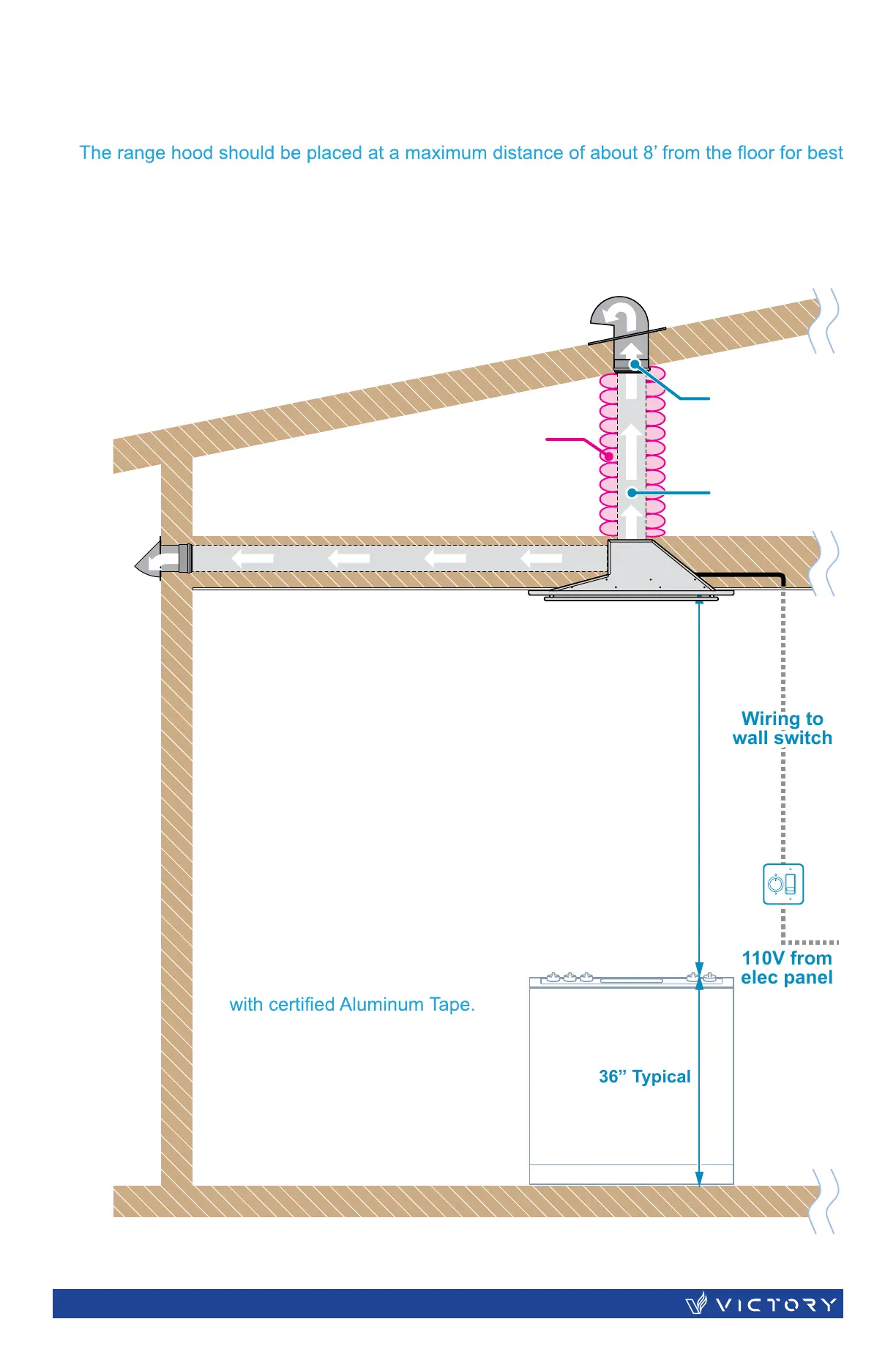

Standard
6” Wall
Vent Cap
6” Roof Vent Cap
Backdraft
Damper
Wrap insulation
required for
cold climates
6” Ø Duct
Recommende
d Height: 48-60
inches.
The hood will
become less
efficient if
installed at a
higher distance.
IMPORTANT:
• NEVER exhaust air or terminate
duct work into spaces between
walls, crawl spaces, ceiling, attics
or garages. The range hood must
be ducted to the outside.
• Use metal/aluminum duct work
only.
• Fasten all connections with sheet
metal screws and tape all joints
• Use caulking to seal exterior wall
or roof opening around the cap.
• If the duct is running though a cold
section of the house (attic space),
insulation of the duct will be
required to prevent condensation
(refer to sketch).
The ceiling should be able to
bear 18 kg (40 lbs) in weight.
•
performance.
• This range hood is factory set for venting through the roof or wall.
• Vent work can terminate either through the roof or wall.
| SUNSET14
