| TESNUS 13
Wall
Joist
Vent through ceiling
to roof cap option
6”- Ø Duct
Vent through ceilingVent through ceiling
to roof cap optionto roof cap option
6”- Ø Duct
6”- Ø Duct
Option side vent
leading to wall
cap 6”- Ø Duct

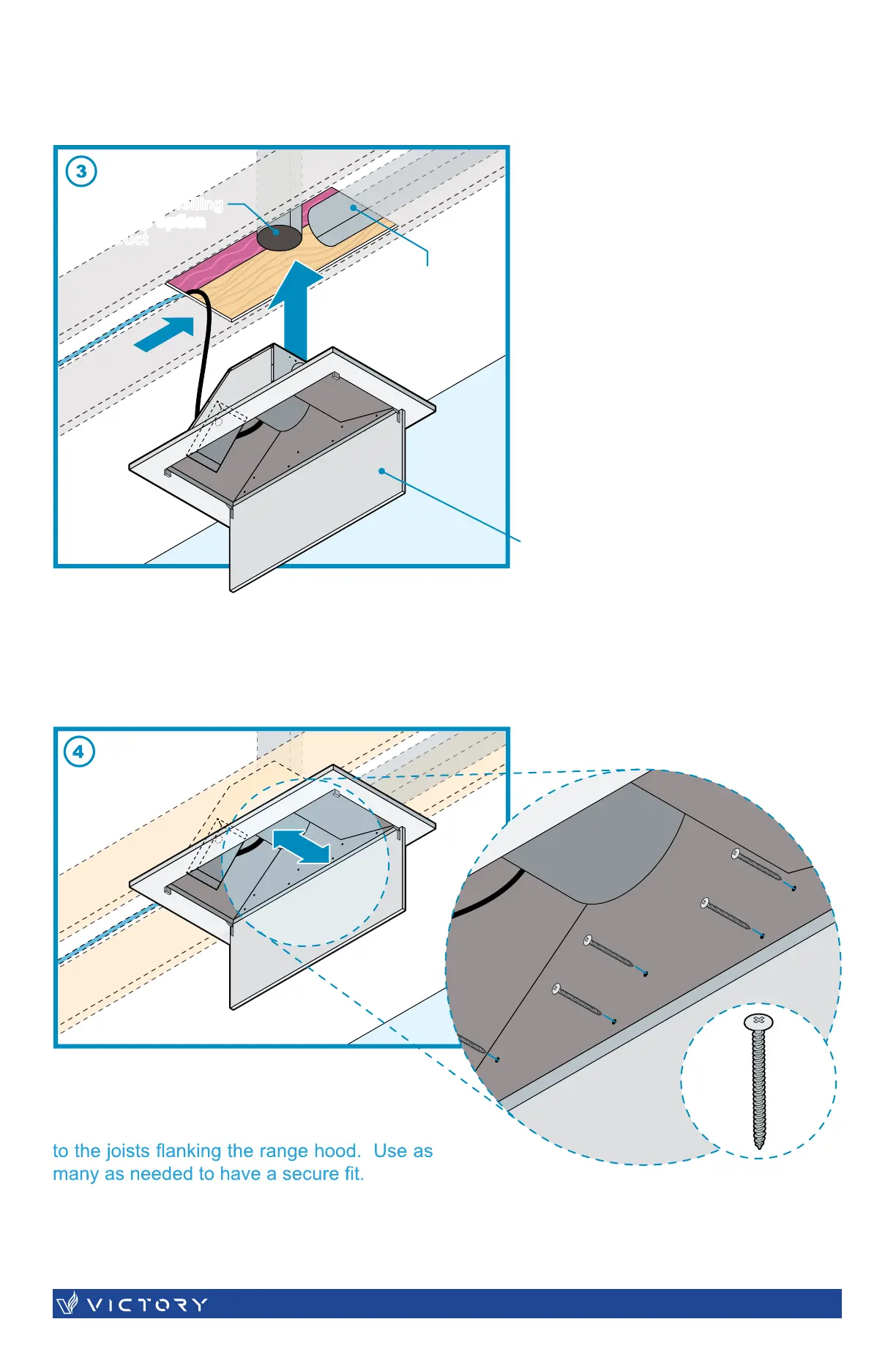

(3) Lift up range hood to attach the
exhaust vent to the 6” duct tube of
your option (top or side vent).
Wiring coming from wall switch panel
and entering into the electrical box
2 x 14-3 Cables
(6 conductors + ground)
INSTALLATION
(4) Anchor your range hood by fastening
woodscrews (not included) through the side
walls where the installations holes are located
NOTE: Woodblocking may be needed if there is more space in between joists for installation.
Panel door is non-reversible
