To Range Hood
Panel
Access to
Elec. Box
(Not included)
(Not included)
120V
120V
4 Speed
3 Speed
2 Speed
1 Speed
Load
Neutral
Ground
G
r
ound
Rotary Switch
for Fan Speed
(Colour of wires may vary.
Follow the labels of corresponding wires.)
ALL SWITCH:
• This hood will come with a Wall Switch to operate
the lights and motor.
•
The motor has a 4-speed switch.
FRONT PANEL SWITCH*
*The wall switch may slightly vary
***IMPORTANT NOTICE***
The wiring of the range
hood must be performed by
a CERTIFIED ELECTRICIAN .
VICTORY Range Hoods is not
responsible for any damages
due to improper connection.
| SUNSET18

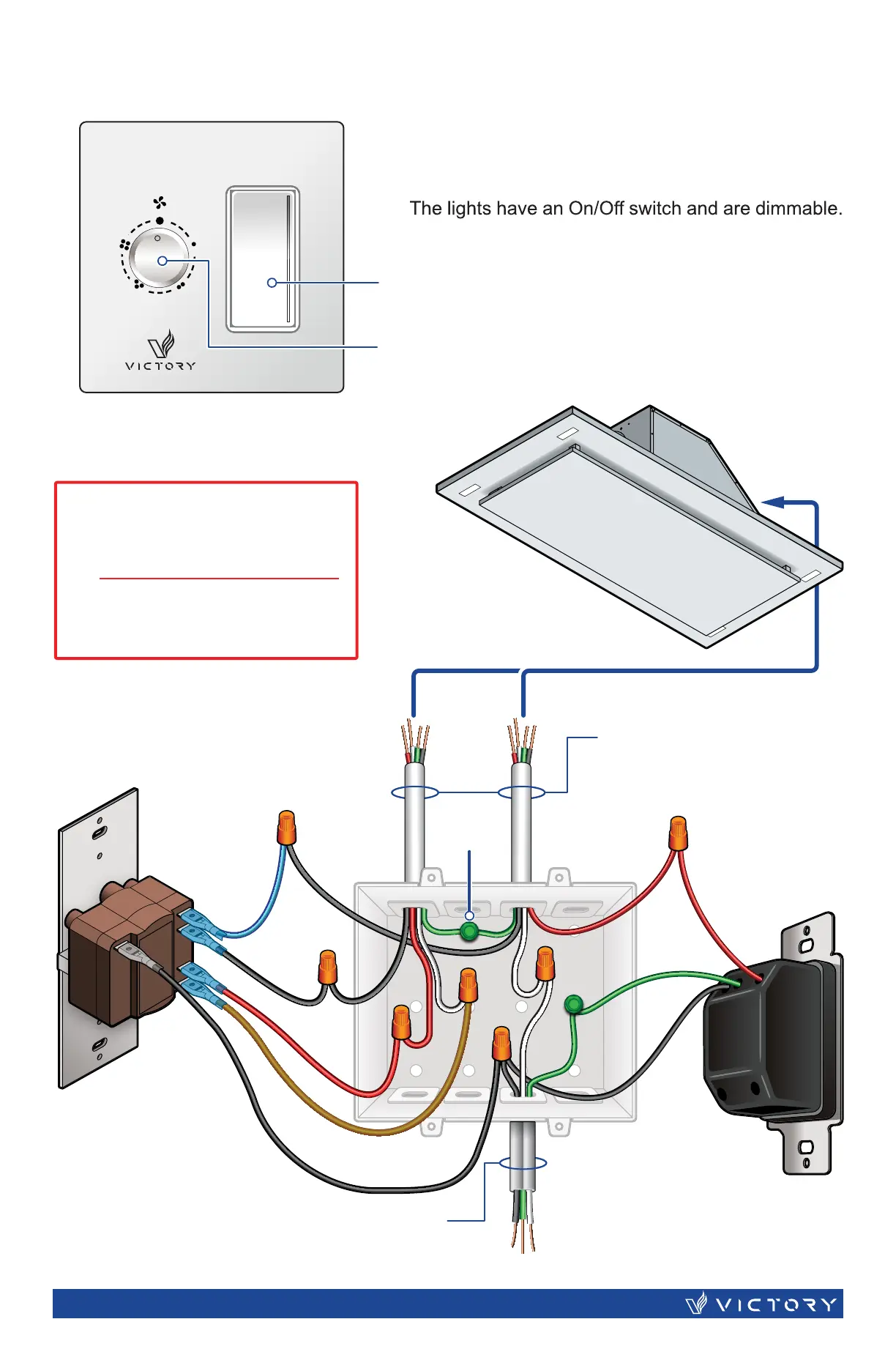

ELECTRICAL WIRING DIAGRAM (With Lights)
LED
Dimmer
14-3 Cables
14-2 Cable
Light Dimmer
W
Rotary Fan Switch
4 Speeds
From
To Next Page
