Victory SUNSET - Page 19

(+)
(-)
(L)
(N)
From light switch
(120 volts)
Cables from motor
LED
Driver
4 Speed
3 Speed
2 Speed
1 Speed
Neutral
Ground
Capacitor
14-3
14-3
12v DC
To LED lights
(12 volts)
Electrical Box Housing
(Colour of wires may vary. Follow the labels of corresponding wires.)

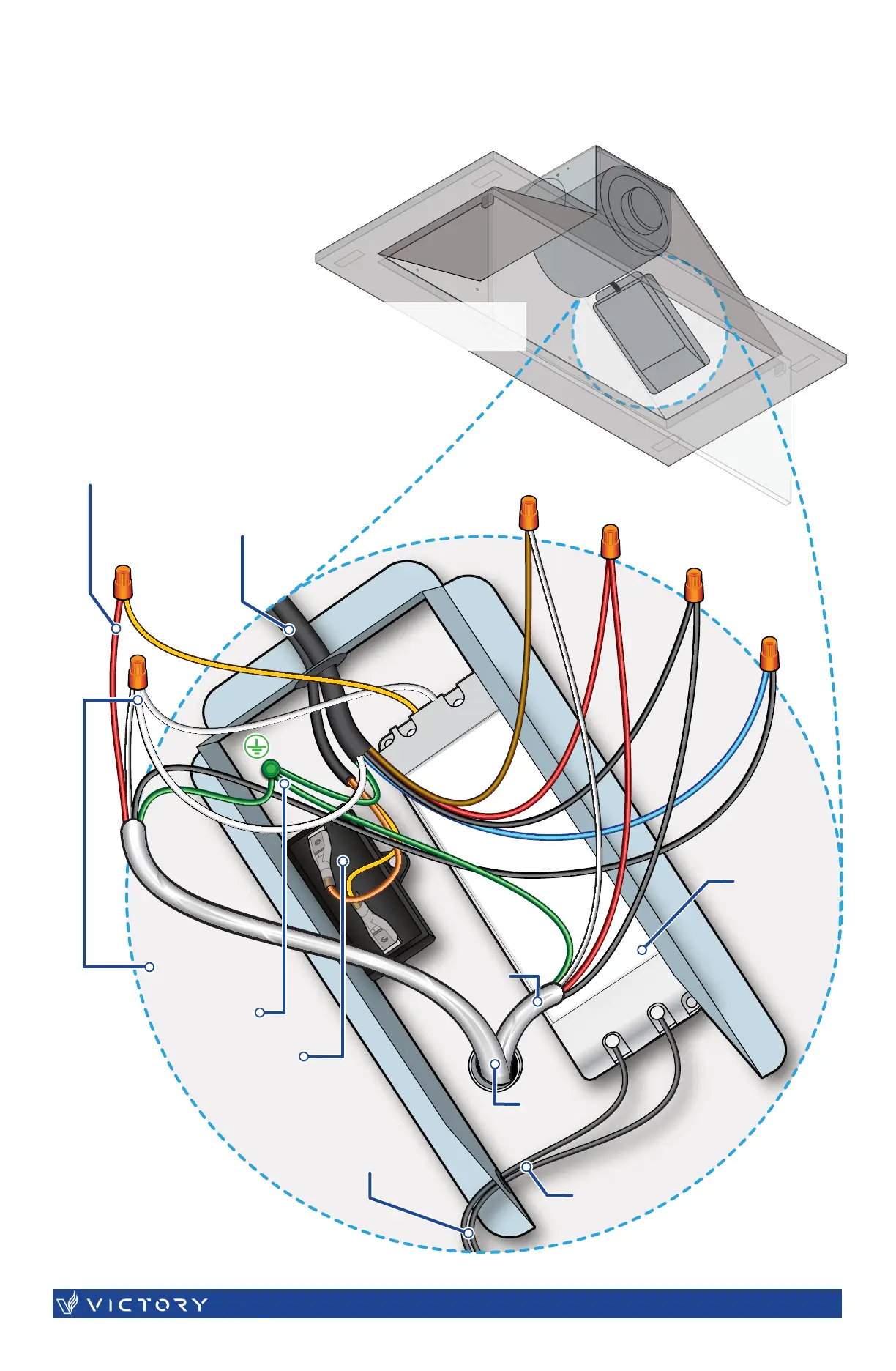

ELECTRICAL WIRING DIAGRAM (With Lights)
|TESNUS 19
