Body Design
l
Ampere
Noise Level
Single Motor
Motor Type
Fan Type
Wall Switch
Filtration Type
Lights (3000K) or No Lights

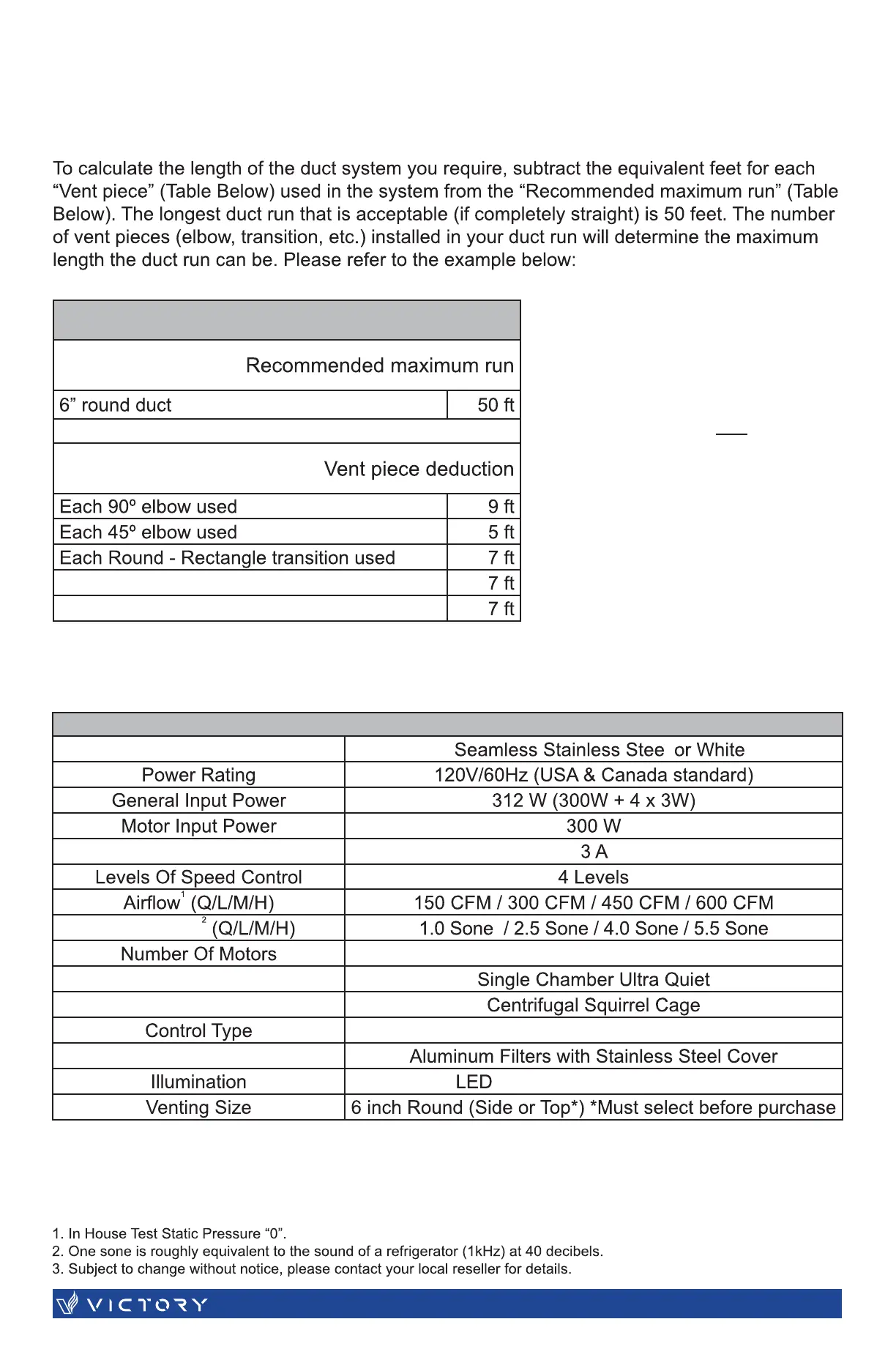

Duct Run Calculation:
Side wall cap with damper
Roof cap
Duct Run Calcuation example:
One roof cap, two 90º elbows, and
one 45º elbow used:
7ft + 9ft + 9ft + 5ft = 30ft used.
The above vent pieces used are
equivalent to 30ft of a straight
duct run. Subtract 30ft from the
allowable 50ft. The remaining
distance of 20ft is the longest that
the straight ducting (in addition to
the vent pieces) can be.
| TESNUS 7
CALCULATING VENT SYSTEM LENGTH
SPECIFICATIONS
