-3-
Basic Connection

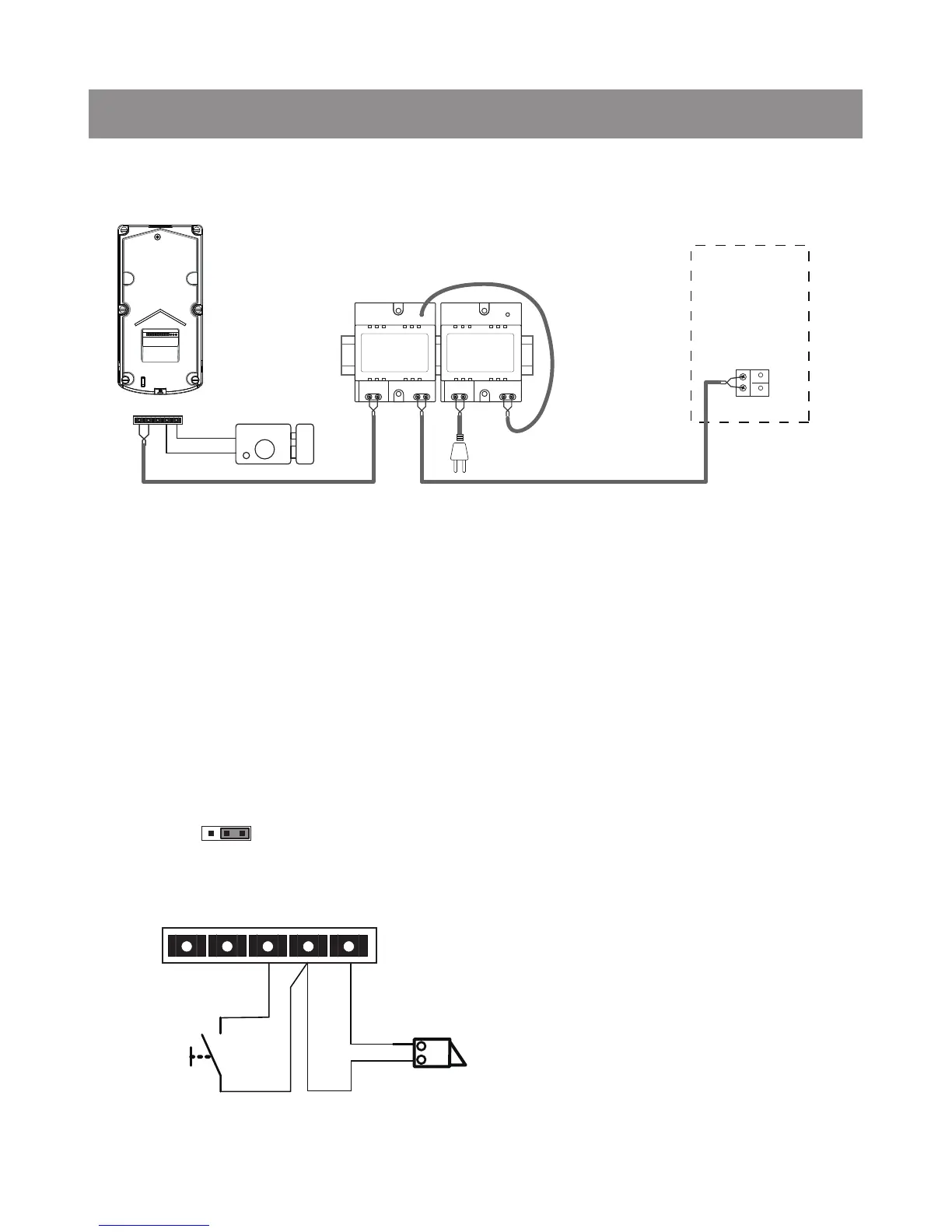

4.System Wiring and Connections
-
+
AC~
monitor
DPS PS4
L1 L2 PL S+ S-
Electric Lock Connection
Door Lock Controlled with Internal Power
Note:
1. Electronic lock of Power-on-to-unlock type should be used.
2. The door lock is limited to 12V, and holding current must be less than 250mA.
3. The door lock control is not timed from Exit Button(EB).
4. The
Unlock Mode
Parameter of Monitor must be set to 0 (by default).
EB
*
LOCK
BUS PL S
+
S-
Jumper position in
Connect one lock
2-3
1 2 3
