11

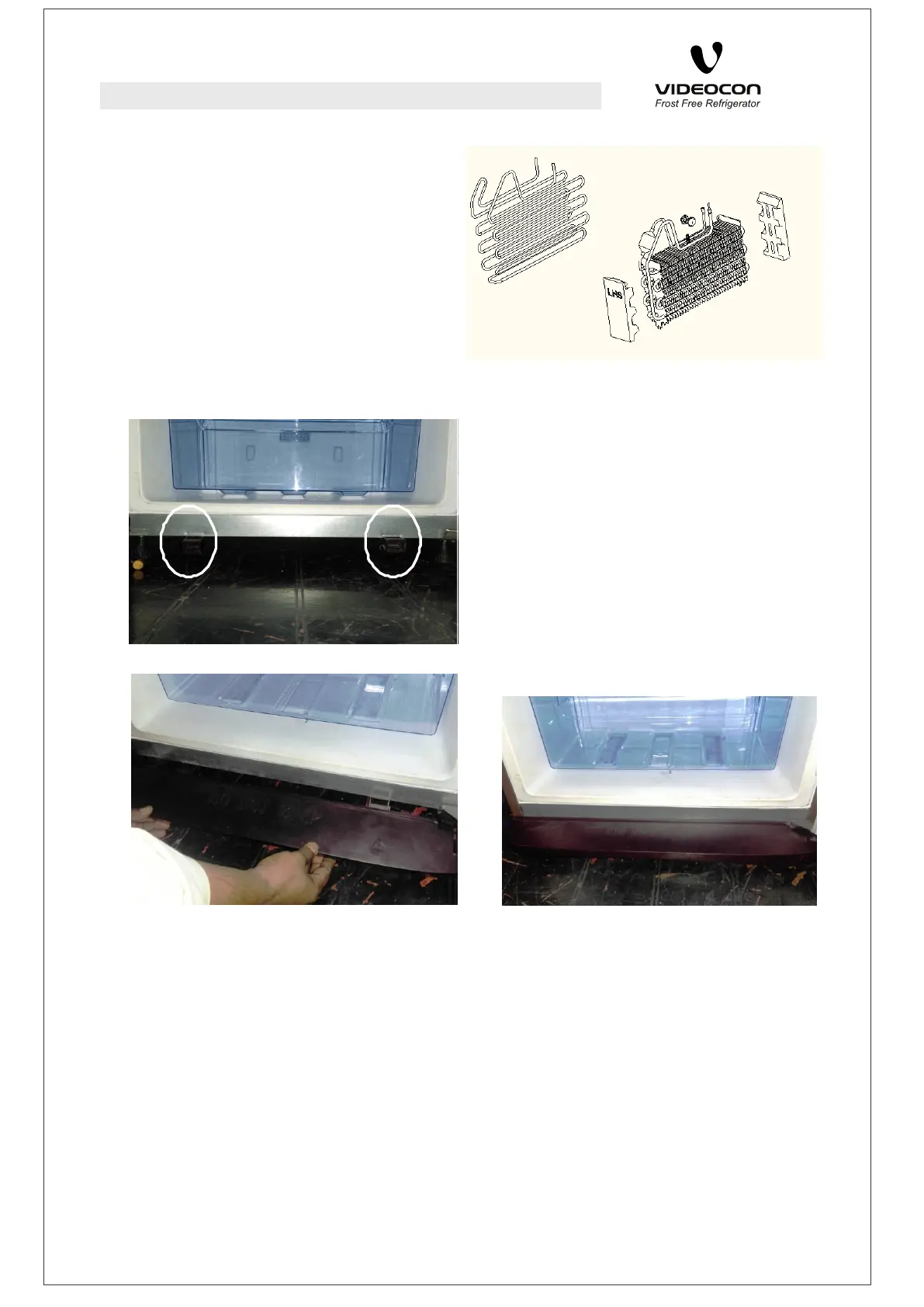

DISASSEMBLY
HEATER & HEATER CORD
In this refrigerator, Heater coil are used
for defrosting heater. During heating, the temperature
of heater very high Therefore, be careful not to burn
while servicing.
• After removing the F-Louver, separate the heater coil
by disconnecting the connectors.
• Exchanged Heater coil and connected the housing.
• If the Heater Cord is defected, disconnect the
connectors, and separate the Heater Cord with long
Nose.
• Replace and assembly the Heater Cord-L and
connect the connectors.
BOTTOM CAP
• Bottom cap is given in bottom of front side of refrigerator.
• It is mounted on two small re-enforcement pieces, as marked in the image, added just
below the front bottom panel.
• Carefully, put the snaps of bottom cap on the re-enforcement pieces and push it
towards the refrigerator in order to attach the bottom cap.
