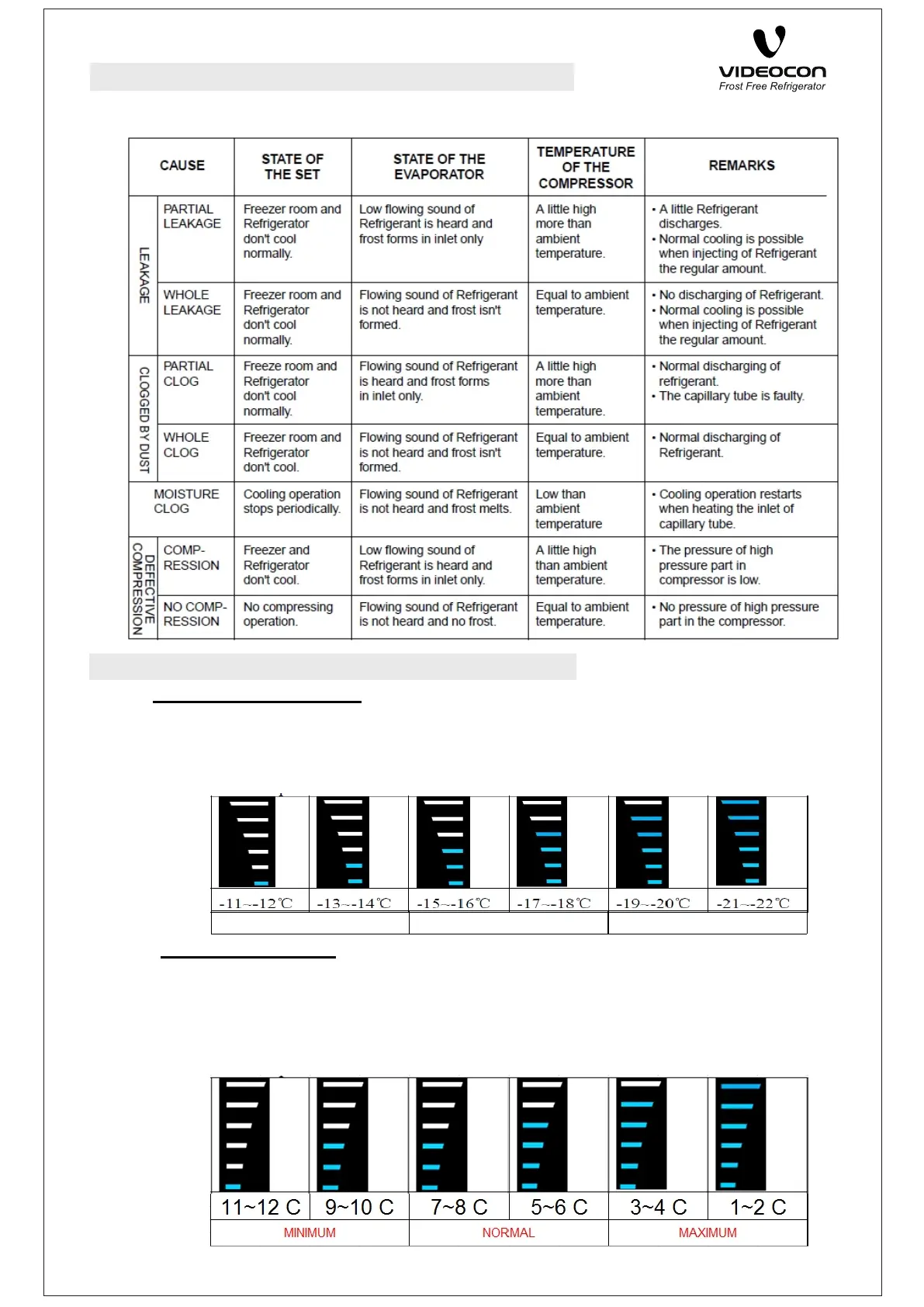

TROUBLESHOOTING
TEMPERATURE CONTROLS ( With Buttons )
For Freezer Compartment
In this mode you can select between 6 different preset cooling level (which appear in the form of a bar graph from 1
to 6)
Using Bottom to UP arrow keys . The LCD screen will display “Min” for 1st and 2nd levels. “Normal” for level 3 &4
“Max” for 5 and 6 . The default cooling level is level 4 which is Normal mode,
The Freezer and Refrigerator temperature is based on the amount of food stored as well as climate condition
Refer the following recommended setting for best usage
MINIMUM NORMAL MAXIMUMMINIMUM NORMAL MAXIMUM
Temp Bar
Freezer Temp
For Ref Compartment
In this mode you can select between 6 different preset cooling level (which appear in the form of a bar graph from 1
to 6)
Using Bottom to UP arrow keys . The LCD screen will display “Min” for 1st and 2nd levels. “Normal” for level 3 &4
“Max” for 5 and 6 . The default cooling level is level 4 which is Normal mode,
The Freezer and Refrigerator temperature is based on the amount of food stored as well as climate condition
Refer the following recommended setting for best usage
Temp Bar
Ref Temp
REFRIGERATING CYCLE
