Doorstation Installation Guide 11
FUTURO
5 Doorstation Installation Guide
FUTURO-CZ4 (Surface Mount)
With weatherhood (Optional)

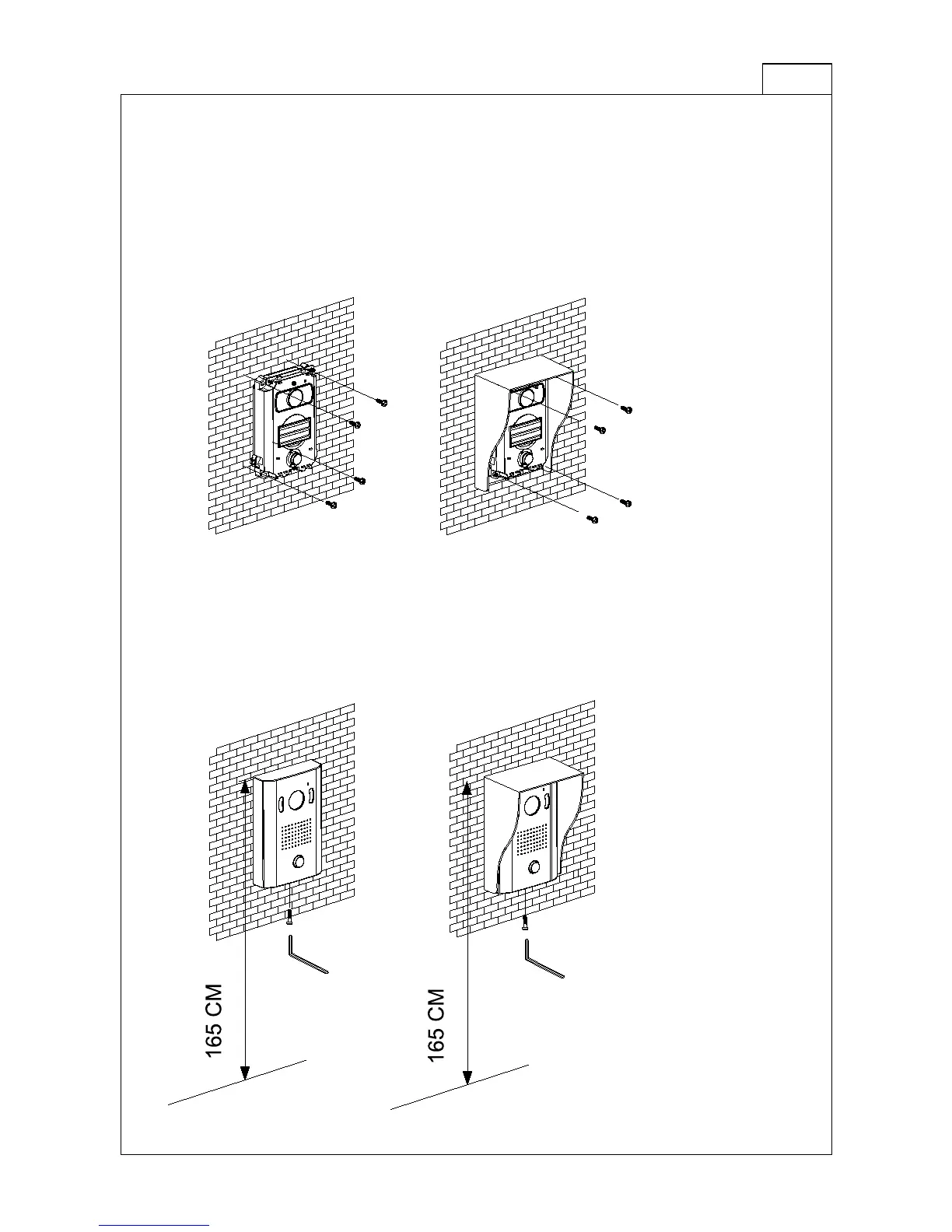

Remove the front metal
cover and install main body
to wall.
Connect wires to the
terminals.
Install the main body on the
wall approximately
155CM~165CM from the
ground.
Mount the front cover onto
the main body.
Note:
Keep the unit away from
direct snow, rain and direct
sunlight into the camera
lens.
If necessary, please use the
optional weather hood for
further protection from the
elements.
Dimensions(W/H/D) :
99 x 148 x 28mm
(overall)
