VIDEOMAN
FUTURO-CP4 (Flush Mount)

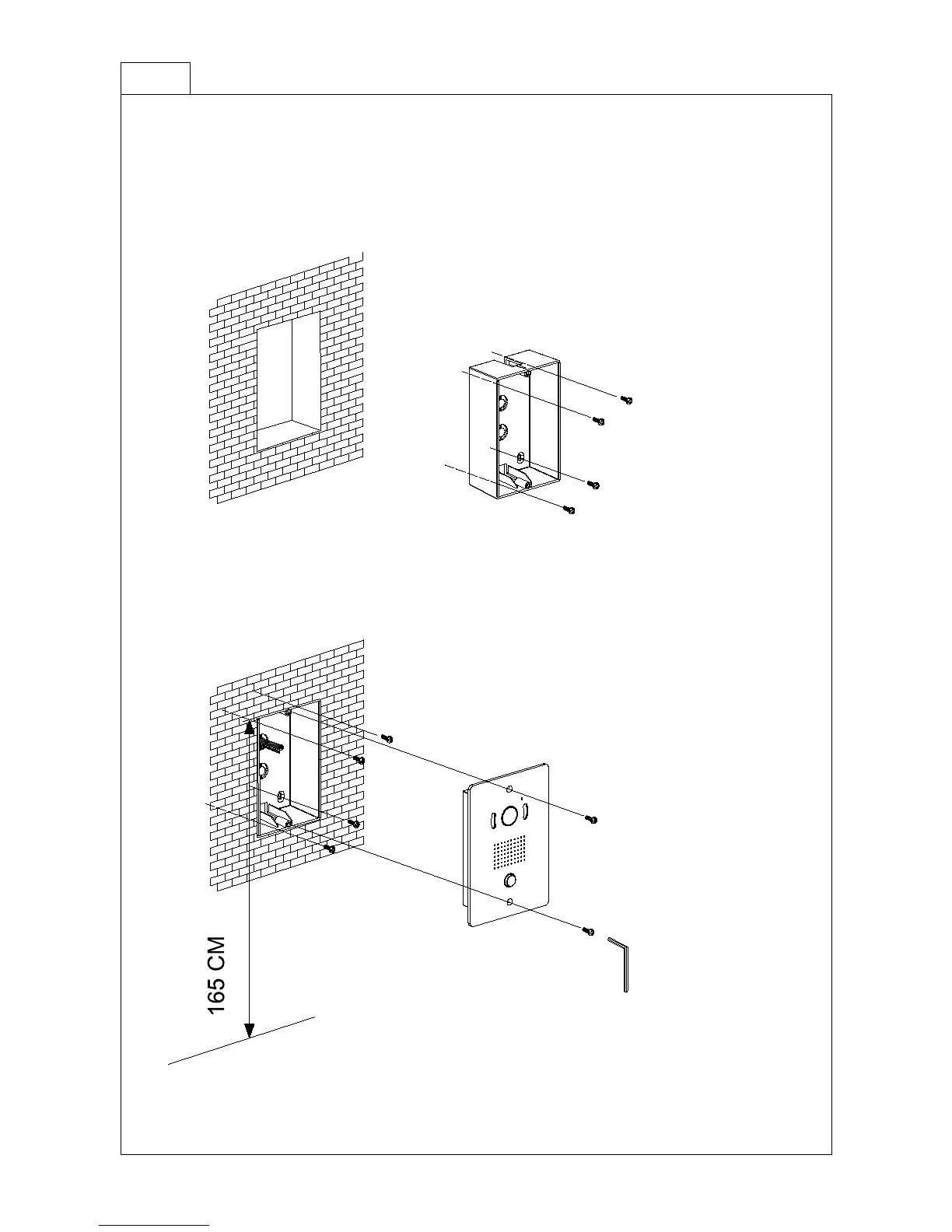

Mount the embedding
box inside wall
approximately
155CM~165CM from
the ground.
Dimensions(W/H/D):
98 x 155 x 55 mm
(Embedding Box)
Connect all the necessary
wires to the terminals.
Install the doorstation into
the embedding box
Dimensions(W/H/D) :
128 x 182 x 4 mm
(Cover Plate)
Note:
Keep the unit away from
direct snow, rain and direct
sunlight into the camera
lens.
