VIDEOMAN

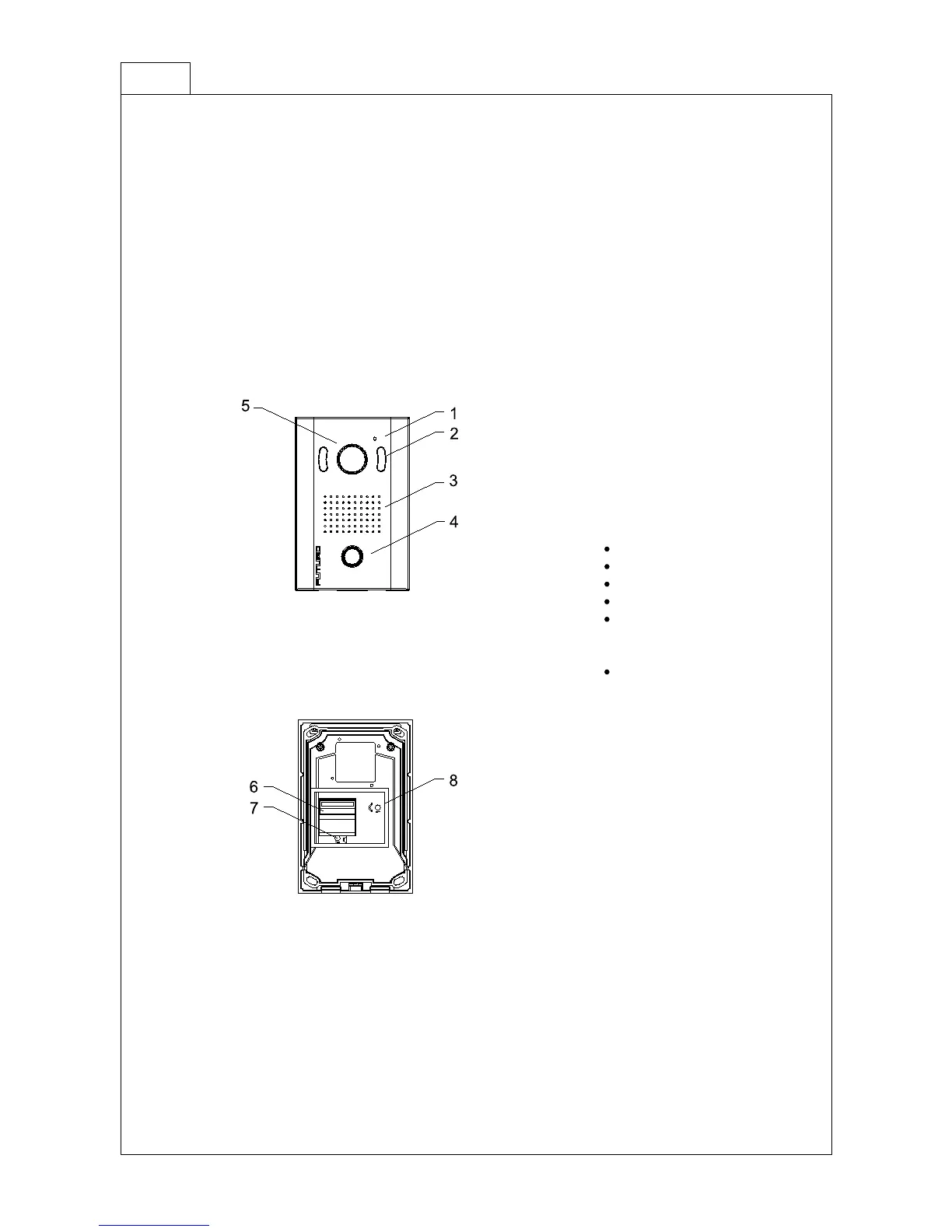

2 Doorstation Description
FUTURO-CZ4
1.
MICROPHONE
2.
LEDs for night vision
3.
SPEAKER
4.
CALL BUTTON
5.
CCD CAMERA
6.
TERMINAL
A: AUDIO
G: GROUND
B: B+
V: VIDEO
D/O: Door Open
Normally Open for an
Electric Door Latch
12V: Constant power for
the back light &
Advanced recording
7.
MICROPHONE SENSITIVITY
ADJUST
8.
SPEAKER OUTPUT ADJUST
