ESVK/6388 Series “2 wire Bus” videokit
ESVK/6388 Series - Installation handbook
System components and available versions
ESVKX/6388 Colour videokit with embended proximity key reader.
50
43,8
135,0
160,0
45,0 22,7
15,7
143,0
120,0
45,0
INDOOR
STATION
Videomonitor
Art.6388
pag. 23
ACCESSORIES
Power supply
Art.2321
pag. 28
Card format fob
Art.955/C
Tag format fob
Art.955/T
OUTDOOR
STATION
Flush
Mounting
Surface
Mounting
Camera unit
Art.4384X
pag. 10

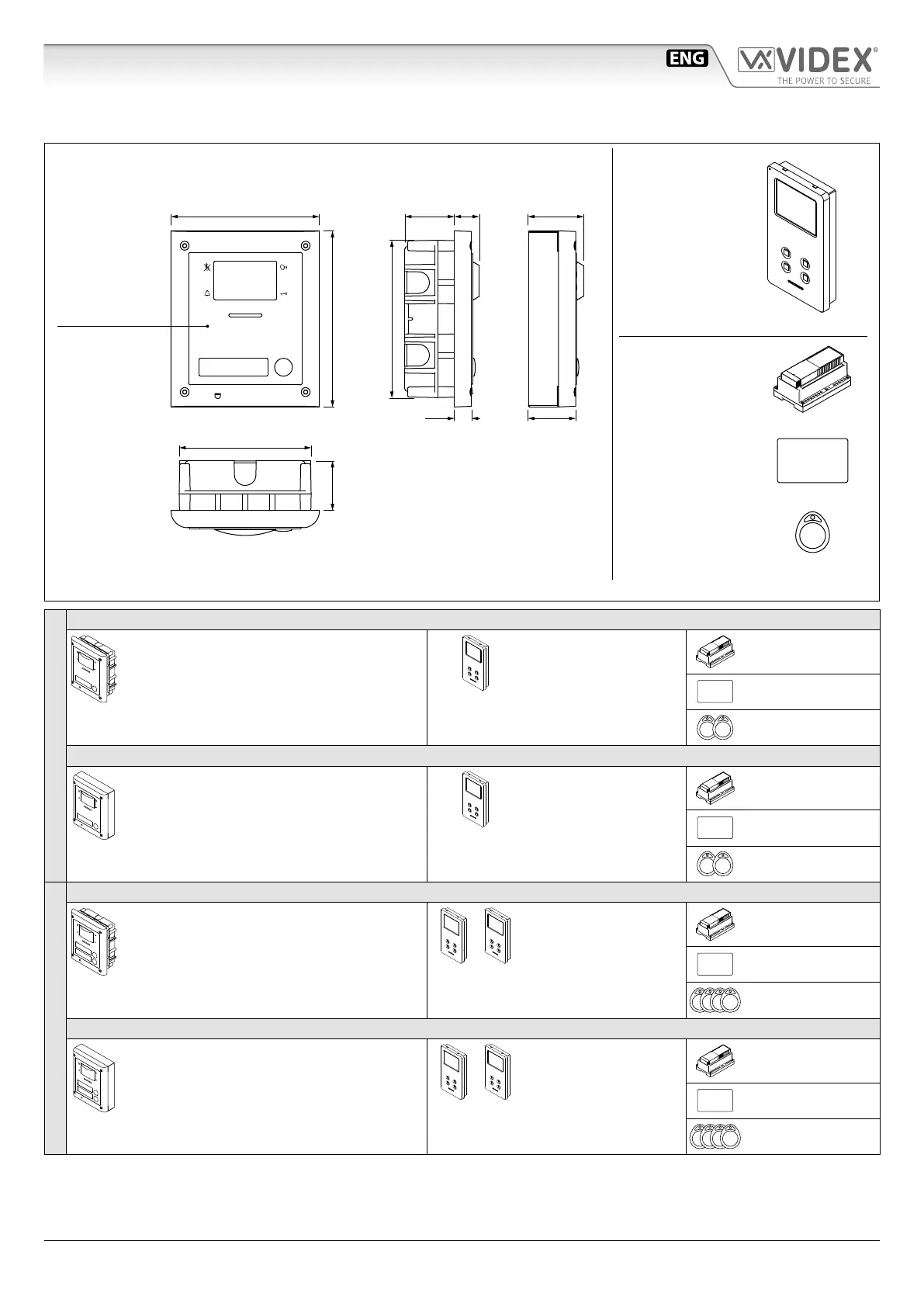

Fig. 2 - ESVKX/6388 components (measures in mm)
ONE WAY VERSIONS
ESVKX-1/6388 - ush mounting
1 Outdoor station composed of:
1 Art.4384X-1: 1 button camera unit
1 Art.4851: Flush mounting box
1 Colour videomonitor
Art.6388
1 Power supply
Art.2321
1 Card format fob
Art.955/C
2 Tag format fobs
Art.955/T
ESVKX-1S/6388 - surface mounting
1 Outdoor station composed of:
1 Art.4384X-1: 1 button camera unit
1 Art.4881: Surface mounting box
1 Colour videomonitor
Art.6388
1 Power supply
Art.2321
1 Card format fob
Art.955/C
2 Tag format fobs
Art.955/T
TWO WAY VERSIONS
ESVKX-2/6388 - ush mounting
1 Outdoor station composed of:
1 Art.4384X-2: 2 buttons camera unit
1 Art.4851: Flush mounting box
2 Colour videomonitors
Art.6388
1 Power supply
Art.2321
1 Card format fob
Art.955/C
4 Tag format fobs
Art.955/T
ESVKX-2S/6388 - surface mounting
1 Outdoor station composed of:
1 Art.4384X-2: 2 buttons camera unit
1 Art.4881: Surface mounting box
2 Colour videomonitors
Art.6388
1 Power supply
Art.2321
1 Card format fob
Art.955/C
4 Tag format fobs
Art.955/T
