VIDEX VproX-100
(2 DOOR, 100 KEY SYSTEM)
4

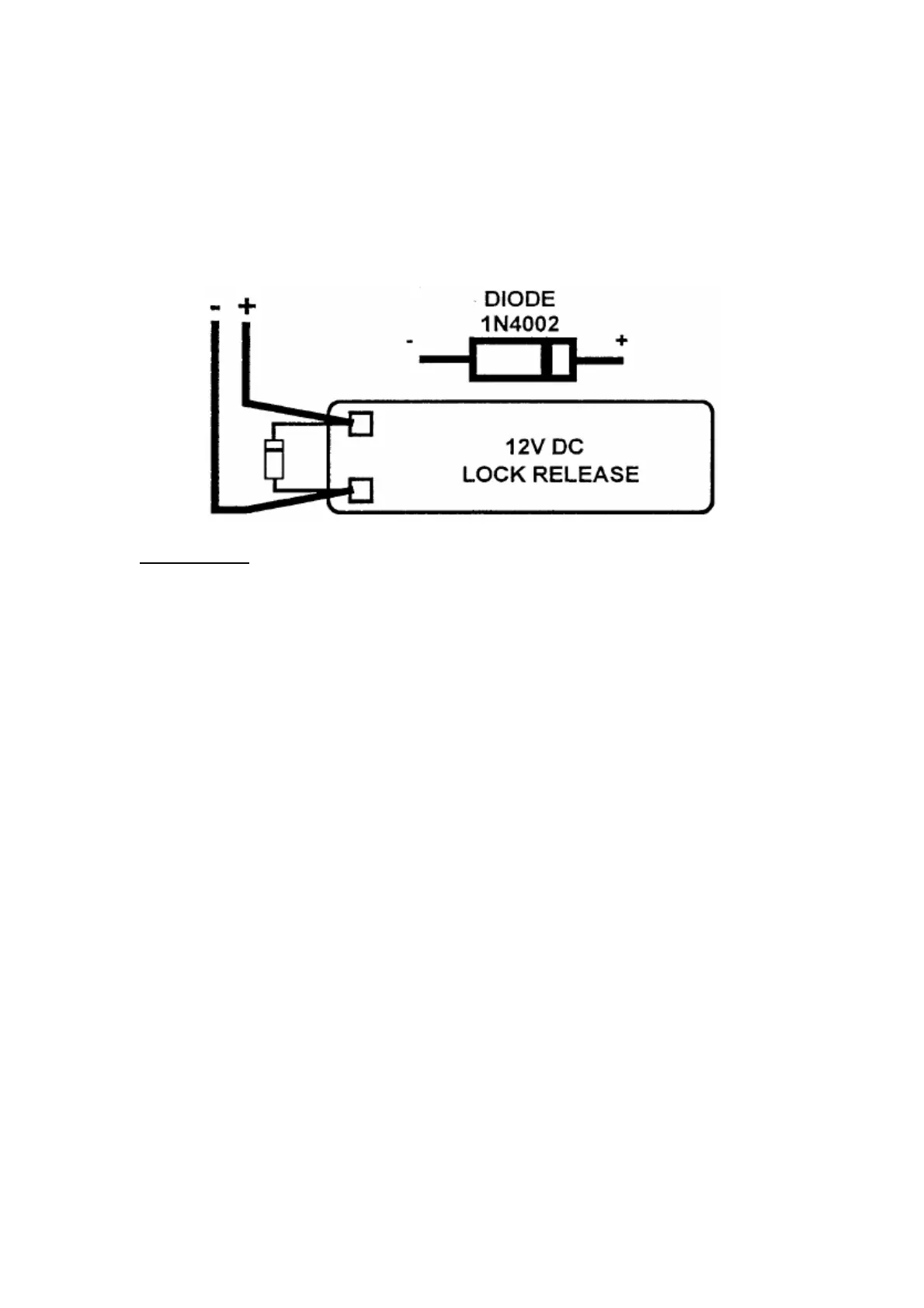

Lock release back EMF protection : A diode must be fitted across the
terminals on the lock release to suppress back EMF voltages. The diagram
below shows the polarity of the diode when fitted to the release.
Connections
+12V - + supply input
- - Negative
S1 - Door one push to exit trigger. (Short to -)
S2 - Door two push to exit trigger. (Short to -)
NO1 - Normally open contact (Door one)
NC1 - Normally closed contact (Door one)
C1 - Common contact (Door one)
NO2 - Normally open contact (Door two)
NC2 - Normally closed contact (Door two)
C2 - Common contact (Door two)
LG1 - Green LED’s (Door one)
LR1 - Red LED’s (Door one)
RK1 - Serial data (Door one)
- - Negative (Door one)
LG2 - Green LED’s (Door two)
LR2 - Red LED’s (Door two)
RK2 - Serial data (Door two)
- - Negative (Door two)
Technical Specification
Storage capacity - 100 keys or Tags
Number of doors - 2
Number of readers - 4
Working voltage - 12V DC +/- 10%
Current (Quiescent) - Approx. 100mA
Current (During operation) - 200mA max.
Working temperature - -10 +50 C degrees
Lock output - 5A 30VDC Dry contact
