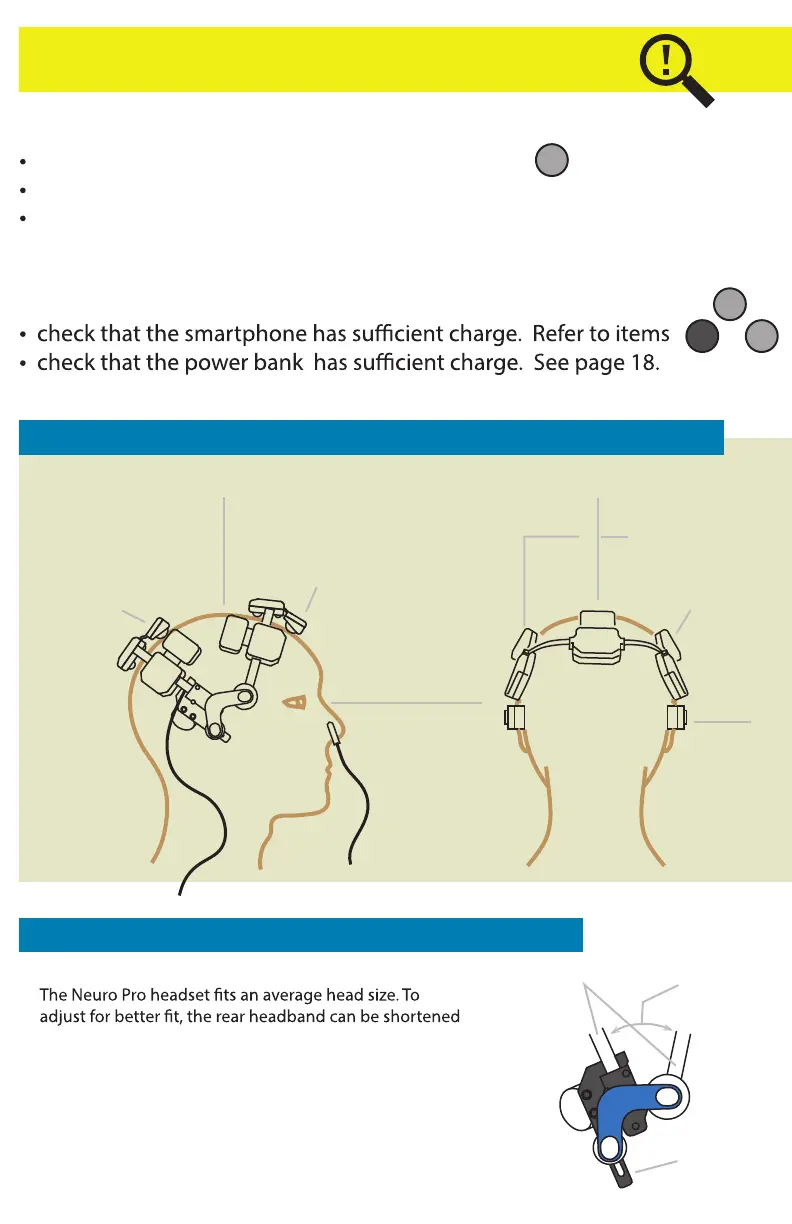

POSITIONING THE HEADSET MODULES IN DEFAULT POSITIONS
Position the front
module at midpoint
between eye level
and the apex.
Apex
Apex
Position the two
side rear
modules at the
midpoint
between the ear
and the apex.
Position the
middle rear
module about 3
to 4 inches (75 to
100 mm) from the
apex.
Eye level
Mid-ear
level
R
R
Push or pull
the extender
to suit head
size.
Adjust the Headset for Better Fit
or lengthened by sliding the left and right extender as
shown in the picture.
ADJUSTING THE SIDE PADS AND LIGHT DIODES
Adjustable
angle
Steel bands
Adjust the Steel Band Angle for Better Diode
Contact
Adjust the angle of the steel band to maximize diode
contact with the scalp.
The device can be used the following ways:
by powering the controller via the power adapter .
by powering the device via a power bank (optional). See pages 17 &18.
with or without the smartphone interface. See pages 5, 6, 7 and the GUI
Screenshots guide.
Before starting:
7
8
5
6
CONNECTING THE DEVICES & GETTING STARTED
