Note: If the adjustable supports are to long, cut them at their ends.
BASE OF THE EVAPORATOR UNIT
DIRECT PLASTIC NUTS
INWARDS
UP TO THE INDENT
ROOF
ADJUSTING SUPPORT
OR REINFORCEMENT
WEATHER STRIP
MINIMUM: 20 MM
NUT AND LOCKING NUT
TIGHTEN
4 SCREWS IN ROTATING SEQUENCE

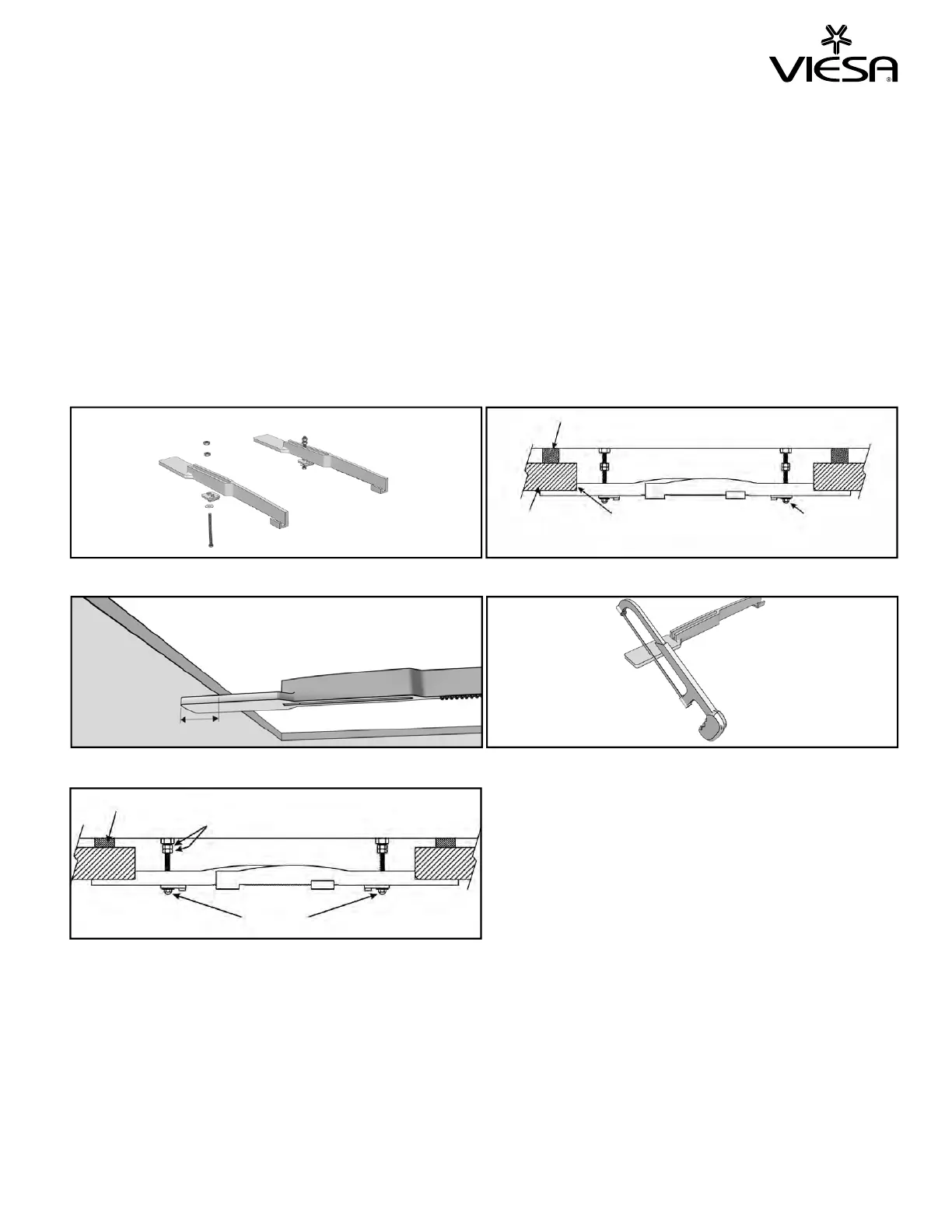

e) Place the adjustable roof supports in the interior against the ceiling.
f) Use the 4 screws (changeable length in accordance with the
thickness of the ceiling) and tighten until the weather strip is
compressed to 10 mm. approximately.
Important: In roofs without reinforcements some support must be
Note: If there is enough space, use a nut and locking nut
between the underside of the roof and the base of the evaporator unit.
provided in order to maintain rigidity to the cab.
WEATHER STRIP
