3
Assembly and installation information (cont.)

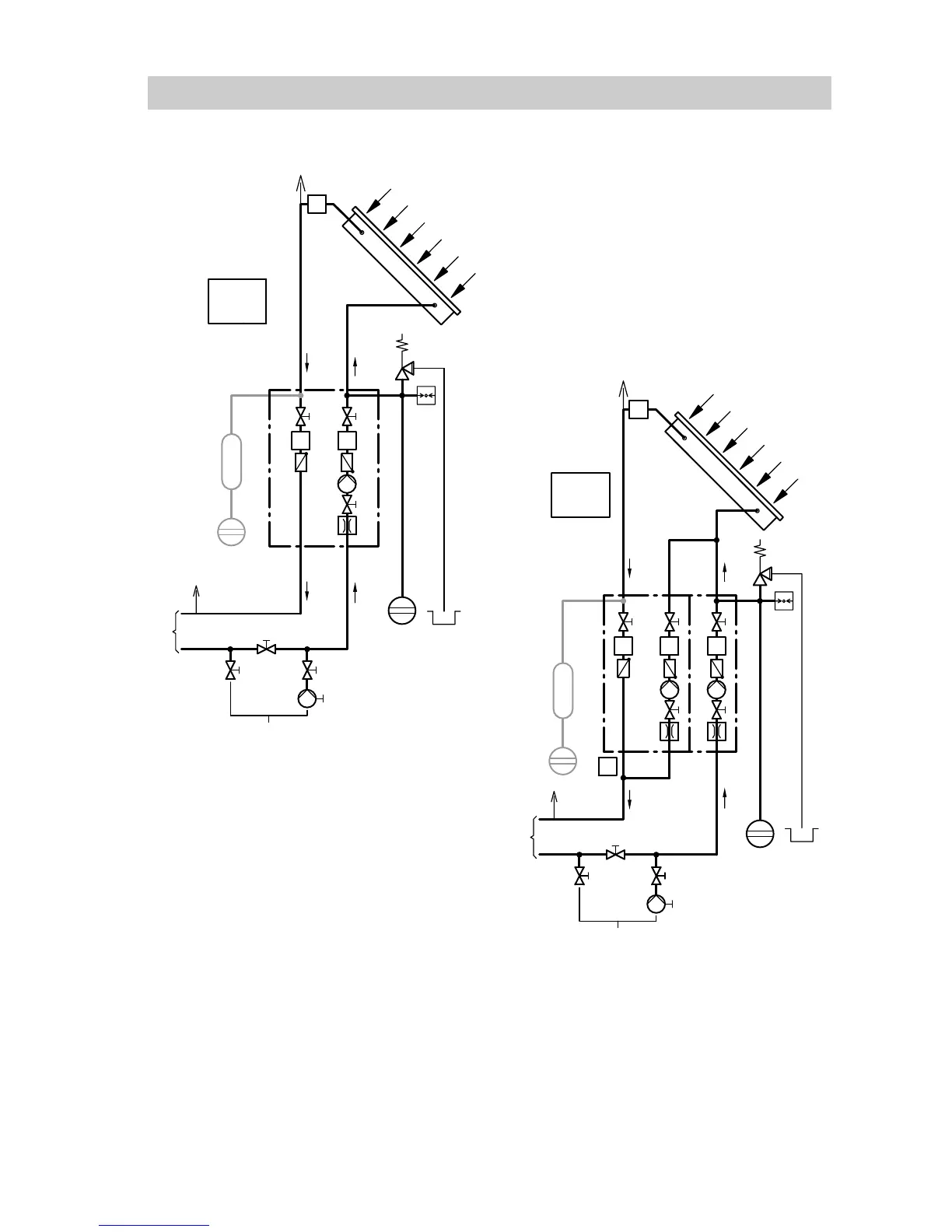

System with SolarDivicon
A SolarDivicon
B Solar circuit pump line
C Collector
D Expansion vessel
E Manual solar fill pump
F Fill valve
G Shut−off valve
H Drain valve
K Filling assembly
L Connections to the DHW cylinder
M Air separator
N Solar control unit
O Air vent valve
P Pre−cooling vessel (if required)
System with SolarDivicon and solar
circuit pump line
Position the solar circuit pump line
to the right near the Solar−Divicon.
The Solar−Divicon pump acts as a
bypass pump, the solar circuit pump
line pump as a solar circuit pump. In
this case fit the safety assembly onto
the solar circuit pump line.
RL Return
VL Flow
5862810GB
A
C
O
N
L
M
G
K
F
E
D
TT
T
VL RL
H
P
D
B
C
O
L
M
G
K
F
E
D
TT
VL
RL
T
T
A
H
T
N
P
D
