Fitting the solar circuit pump line (cont.)
1. Pull the upper section of the
thermal insulation forward and
remove the valve assembly.
2. Secure the retaining plate.
3. Insert the valve assembly.
4. Installation with copper pipes
Insert the support sleeves into the
interconnecting pipes of the solar
circuit.
Alternative:
Installation with stainless steel
solar circuit pipe
Trim (free of burrs) in the valley of
the corrugation; do not damage
the peak of the corrugation.
Fit the union nut, half washer (in
the fifth valley) and O−rings (in the
first and third valley).

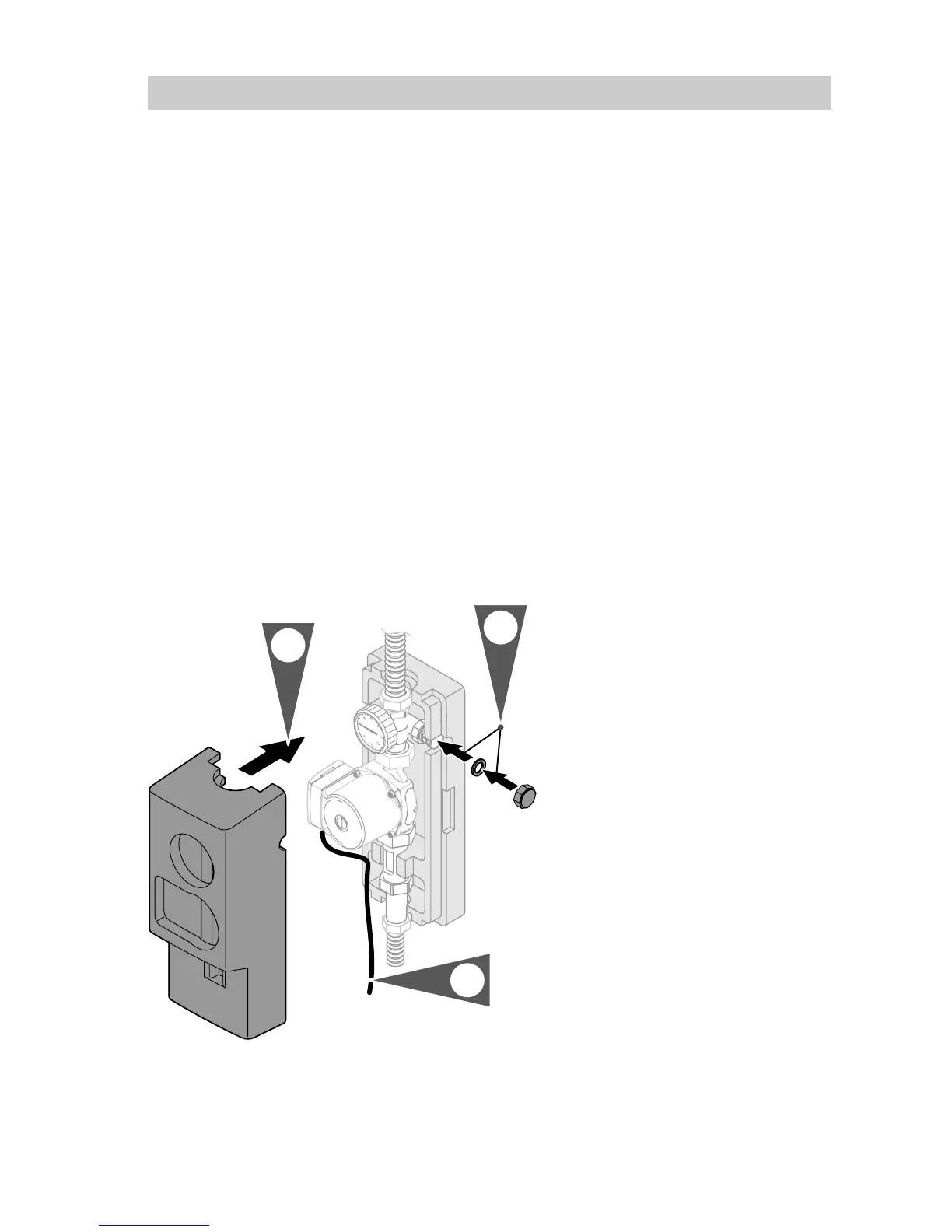

5. Slide the thermal insulation under
the assembly.
Follow the instructions below or
those on page8.
Fitting the solar circuit pump line separately or on
the left next to the Solar−Divicon.
5862810GB
6.
8.
7.
