Fitting the solar circuit pump line (cont.)
6. Close the opening of the solar
circuit pump line with the cap and
the flat packing supplied.
7. Route the connecting cable for the
circulation pump downwards
through the cable duct and
connect to the solar control unit.
Installation and service
instructions  solar
control unit
8. Push the thermal insulation over
the valve assembly and click it into
place.
9. Push the thermal insulation of the
pipework into the recesses of the
thermal insulation of the pump
line.

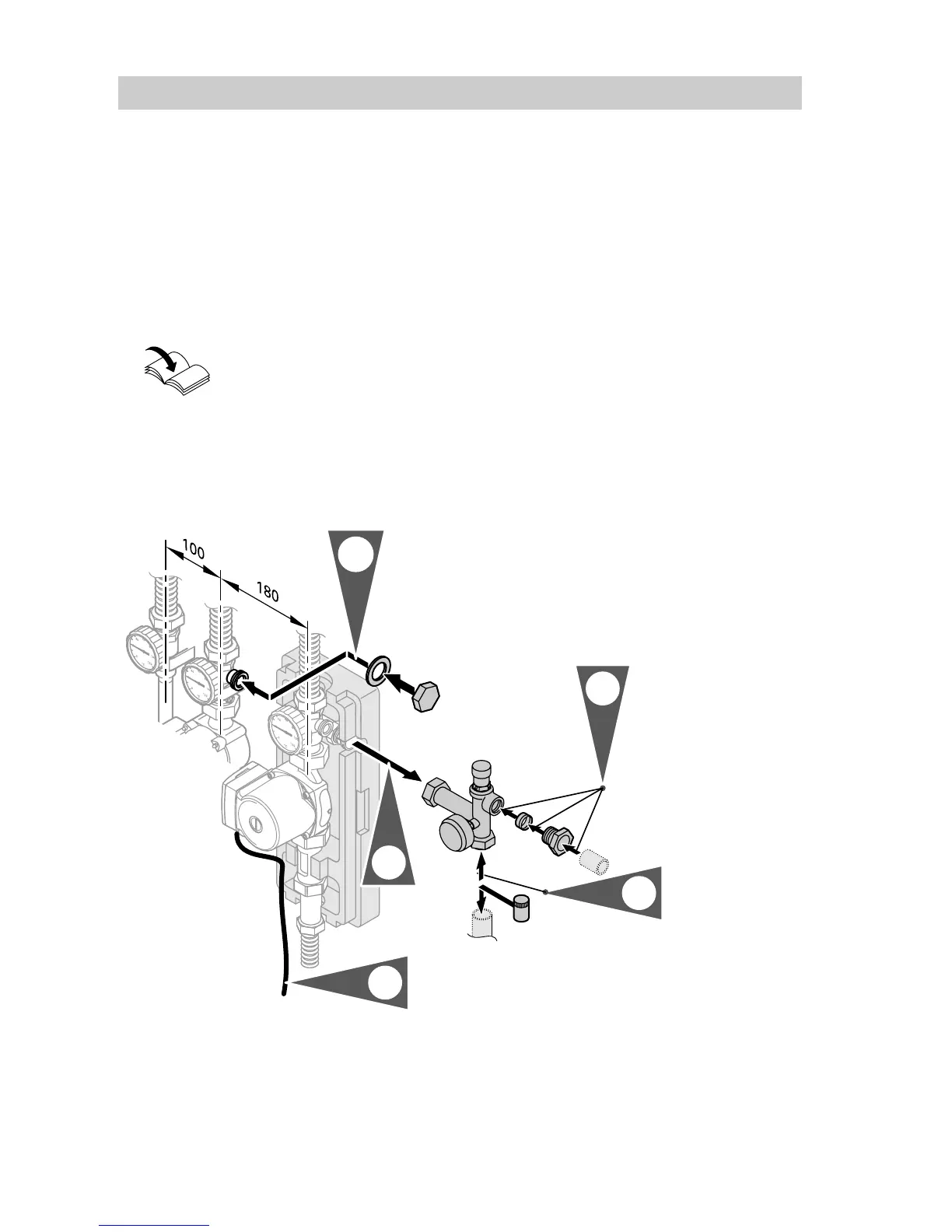

Fitting the solar circuit pump line to the right next to the
Solar−Divicon
5862810GB
9.
8.
7.
6.
10.
