Fitting the solar circuit pump line (cont.)
6. Dismantle the safety assembly of
the Solar−Divicon and secure it on
the solar circuit pump line.
7. Close the opening of the return
line of the Solar−Divicon with the
cap and the insert.
8. Insert a support sleeve into the
connection pipe to the expansion
vessel and secure on the safety
assembly.
9 Secure the blow−off line on the
safety valve of the safety
assembly; ensure the correct
orientation of the locking ring.
Note
The blow−off line must terminate
in an open container.
10. Route the connecting cable for
the circulation pump downwards
through the cable duct and
connect to the solar control unit.
Installation and service
instructions  solar
control unit
11. Remove the knock−out for the
safety assembly.

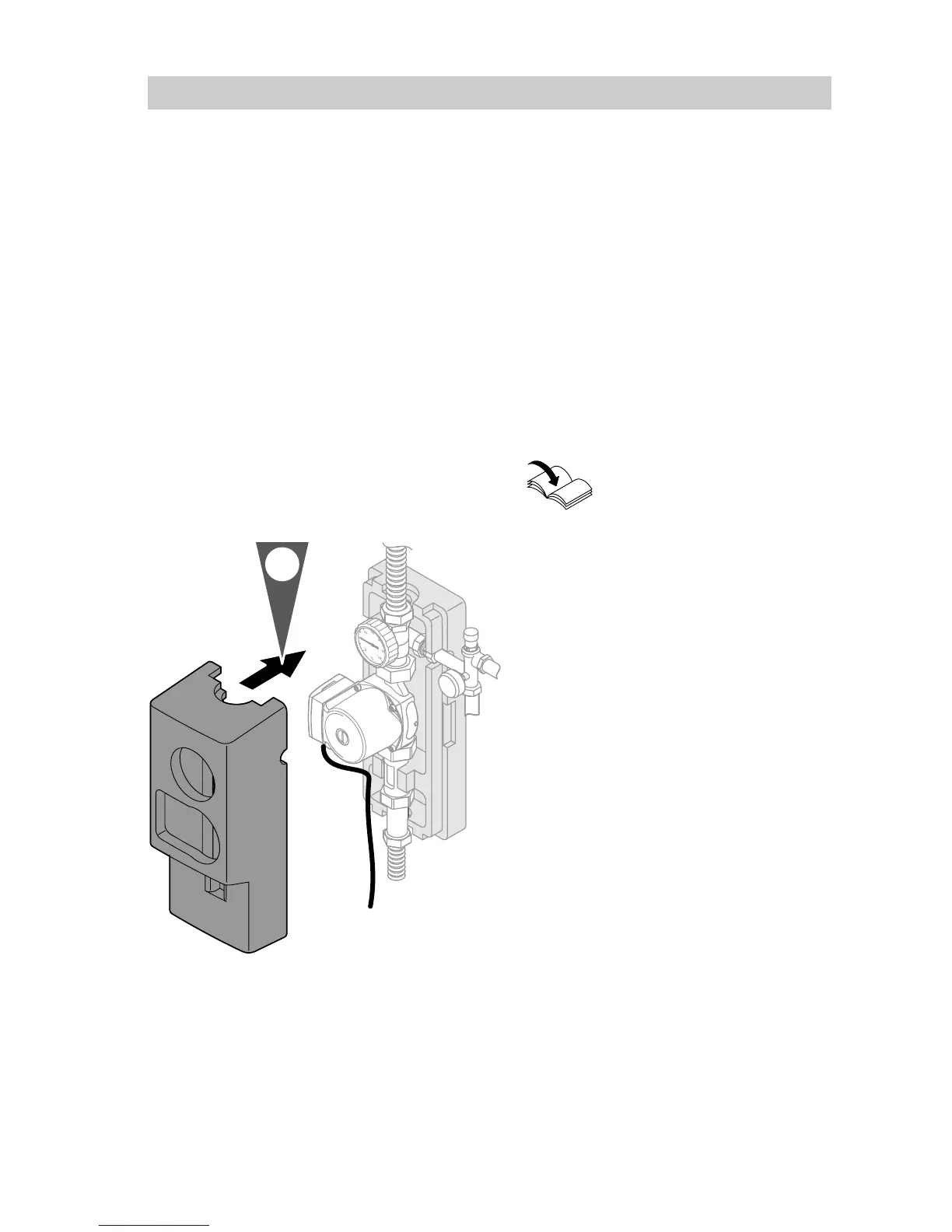

12. Push the thermal insulation over
the valve assembly and click it
into place.
13. Push the thermal insulation of
the pipework into the recesses of
the thermal insulation of the
pump line.
