23

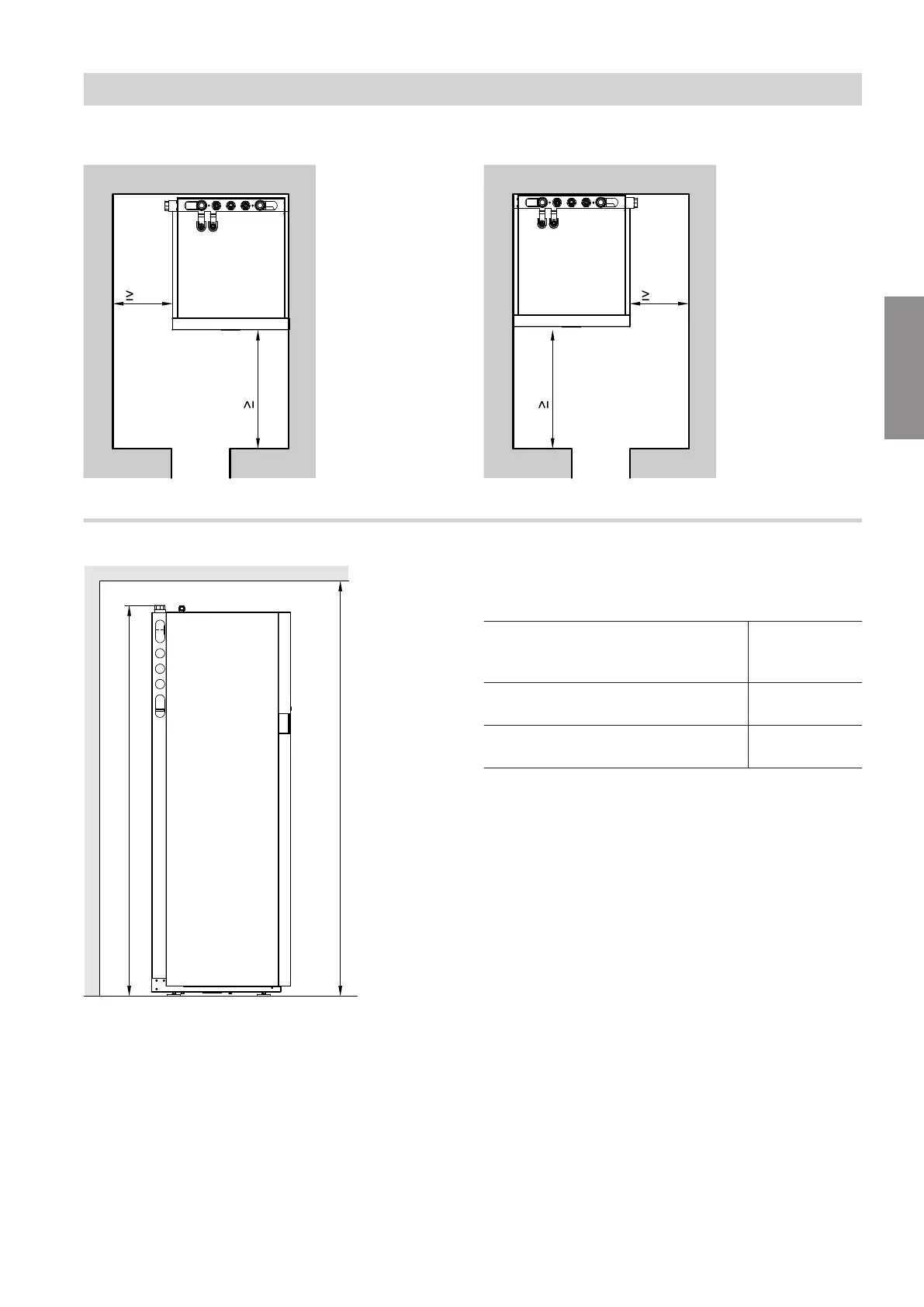

Secondary circuit connections, left/top
1000
250
Fig. 13
Secondary circuit connections, right/top
1000
250
Fig. 14
Minimum room height
1904
> a
A
B
Fig. 15
A
Indoor unit
B
Finished floor level or top edge of platform for
unfinished floors
Minimum room height a depends on the hydraulic con-
nection set used.
Hydraulic connection set Minimum
room height a
in mm
■
For surface mounting, for upward
connection
2200
■
For surface mounting to the left or
right
2000
Note
If applicable, remove the packaging box upwards
before installation.
Installation sequence
Installing the indoor unit (cont.)
6199592
Installation
