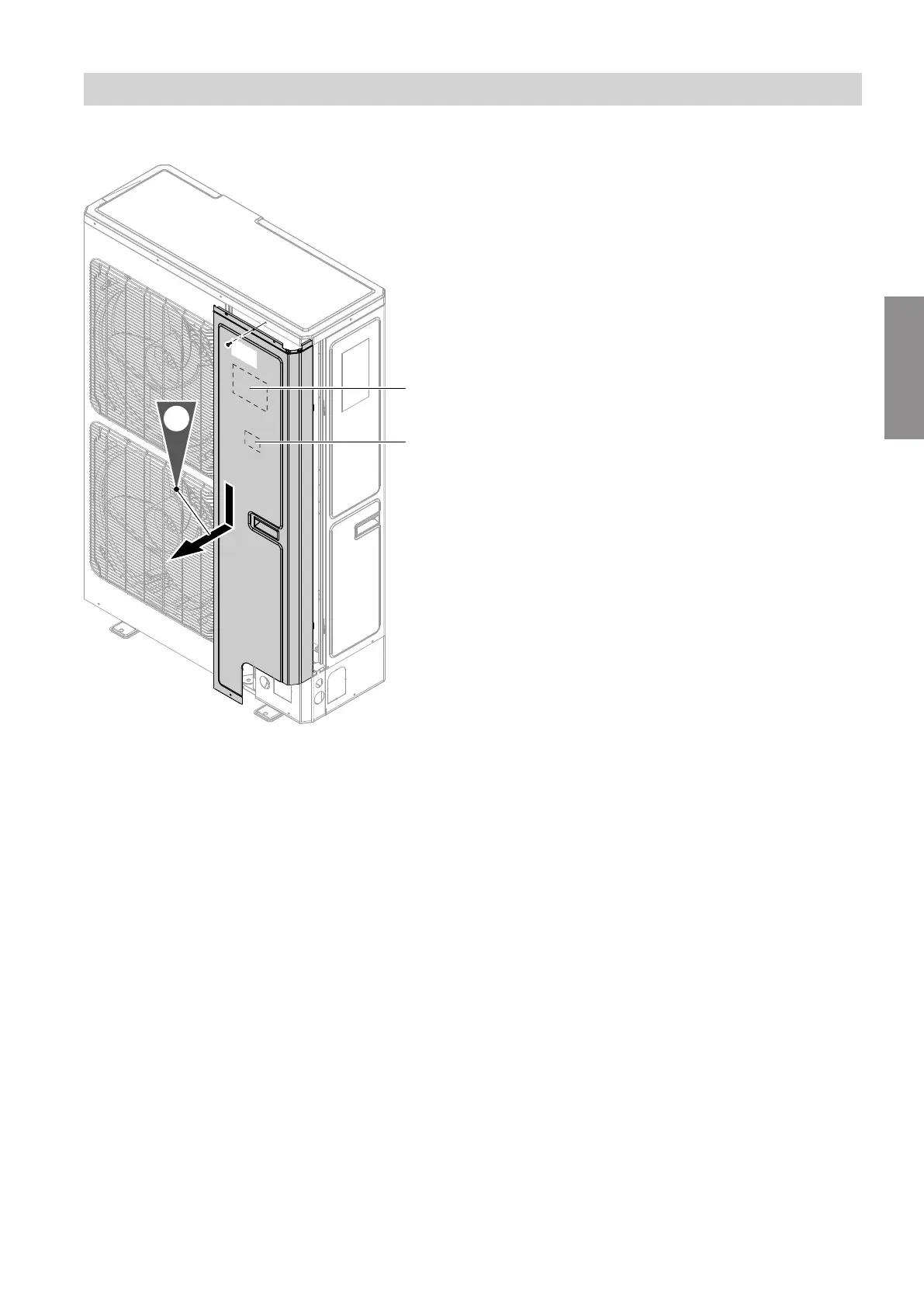

Outdoor unit with 2 fans: Open wiring chamber
2x
1.
A
B
Fig. 43
A
Modbus cable to the indoor unit
B
Compressor power supply
Installation sequence
Electrical connection (cont.)
