Standard Equipment
Product Installation
10
10 VITOCELL 100-V
Standard Equipment
Vitocell 100-V
42 to 79 USG / 160 to 300 ltr capacity
Domestic hot water storage tank of
high-grade steel with PUR Foam insulation
(HCFC-free) and Ceraprotect two-coat
enamel finish with:
H thermometer
H adjustable leveling feet
H built-in aquastat well
H Magnesium anode
The following is packed separately and
attached to the crate:
H installation fittings package: with the
necessary brass adaptors, other necessary
hardware, and hemp
H temperature and pressure relief valve.
Electrostatically powder-coated sheet metal
enclosure panel in a Vitosilver finish.
Vitocell 100-V
119 USG / 450 ltr capacity
Domestic hot water storage tank of
high-grade steel with wrap-around soft PET
insulation (HCFC-free) and Ceraprotect
two-coat enamel finish with:
H thermometer
H adjustable leveling feet
H built-in aquastat well
H Magnesium anode
The following is packed separately and
attached to the crate:
H installation fittings package: with the
necessary brass adaptors, other necessary
hardware, and hemp
H temperature and pressure relief valve.
Synthetic wrap-around enclosure panel in a
Vitosilver finish.

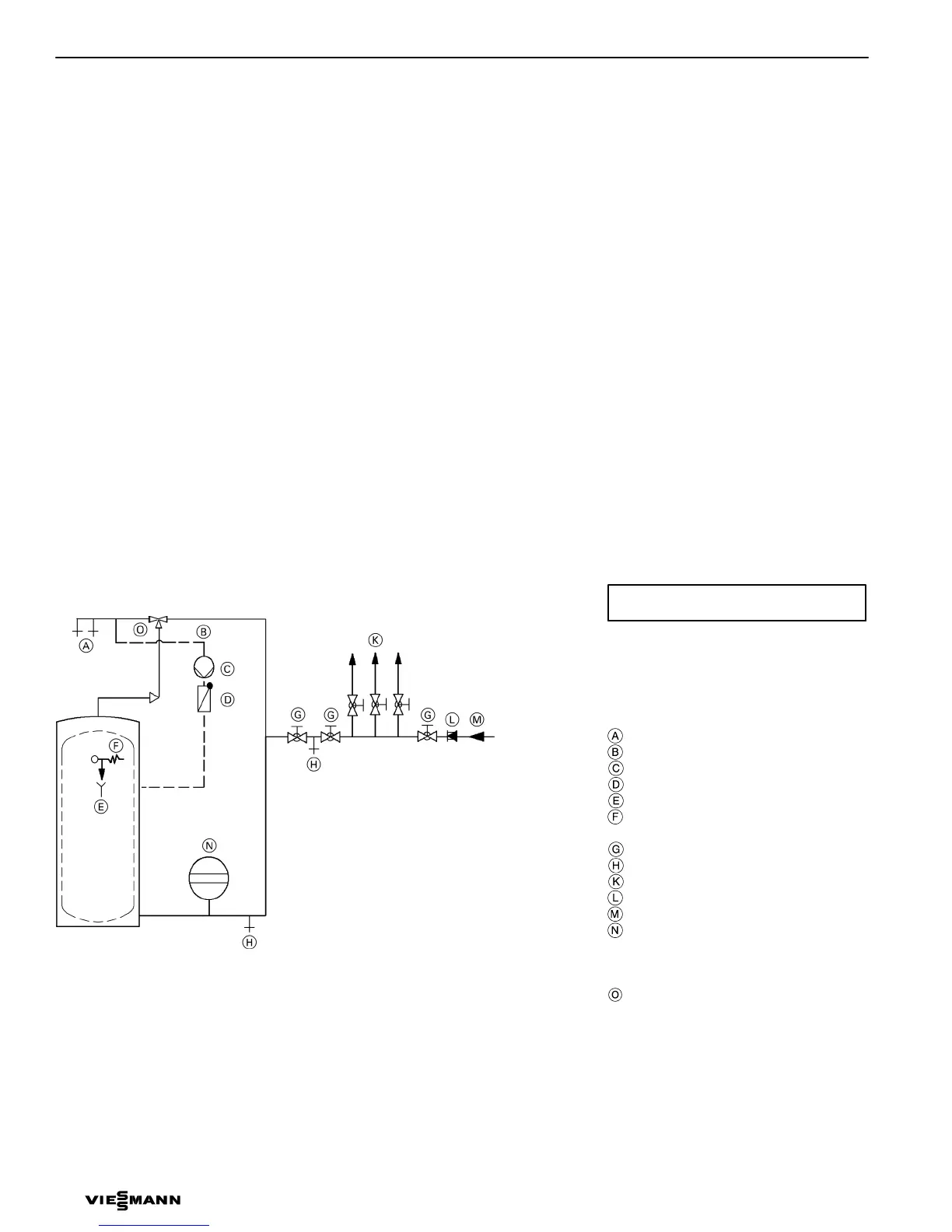

Domestic hot water connections
This is a simplified conceptual drawing
only! Piping and necessary componentry
must be field verified. Proper installation
and functionality in the field is the
responsibility of the heating contractor.
Domestic hot water supply
DHW recirculation line
DHW recirculation pump
Spring-loaded flow check valve
Discharge pipe
Temperature and pressure relief valve
(TPV)
Shut-off valve
Drain
Domestic cold water supply lines
Backflow preventer
Domestic cold water inlet
Precharged expansion tank
(required where backflow preventer
is installed; check local plumbing
codes and requirements)
Thermostatic mixing valve/anti-scald
valve for solar applications
(field
supplied)
IMPORTANT
