Cross-Section
Product may not be exactly as illustrated.
3

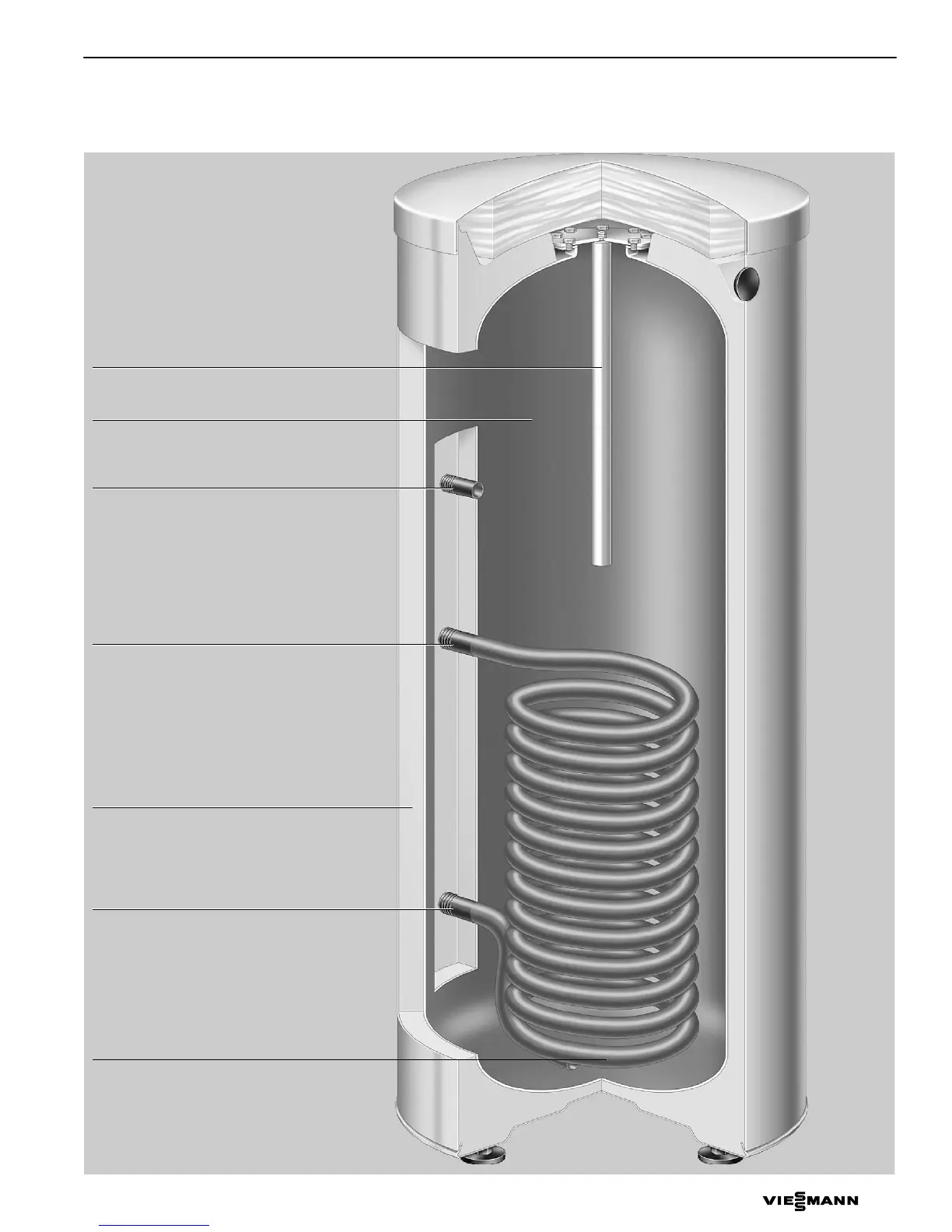

VITOCELL 100-V
Magnesium anode
Steel domestic hot water storage tank,
with Ceraprotect two-coat enamel finish
Recirculation tapping
Boiler water supply
2¼”/58 mm PUR Foam or 4”/100 mm
wrap-around PET insulation (HCFC-free)
Boiler water return
Non-finned tubular steel heat exchanger coil with
Ceraprotect finish extends to tank bottom -
the entire water volume is heated, preventing
cold spots where bacteria growth could occur
