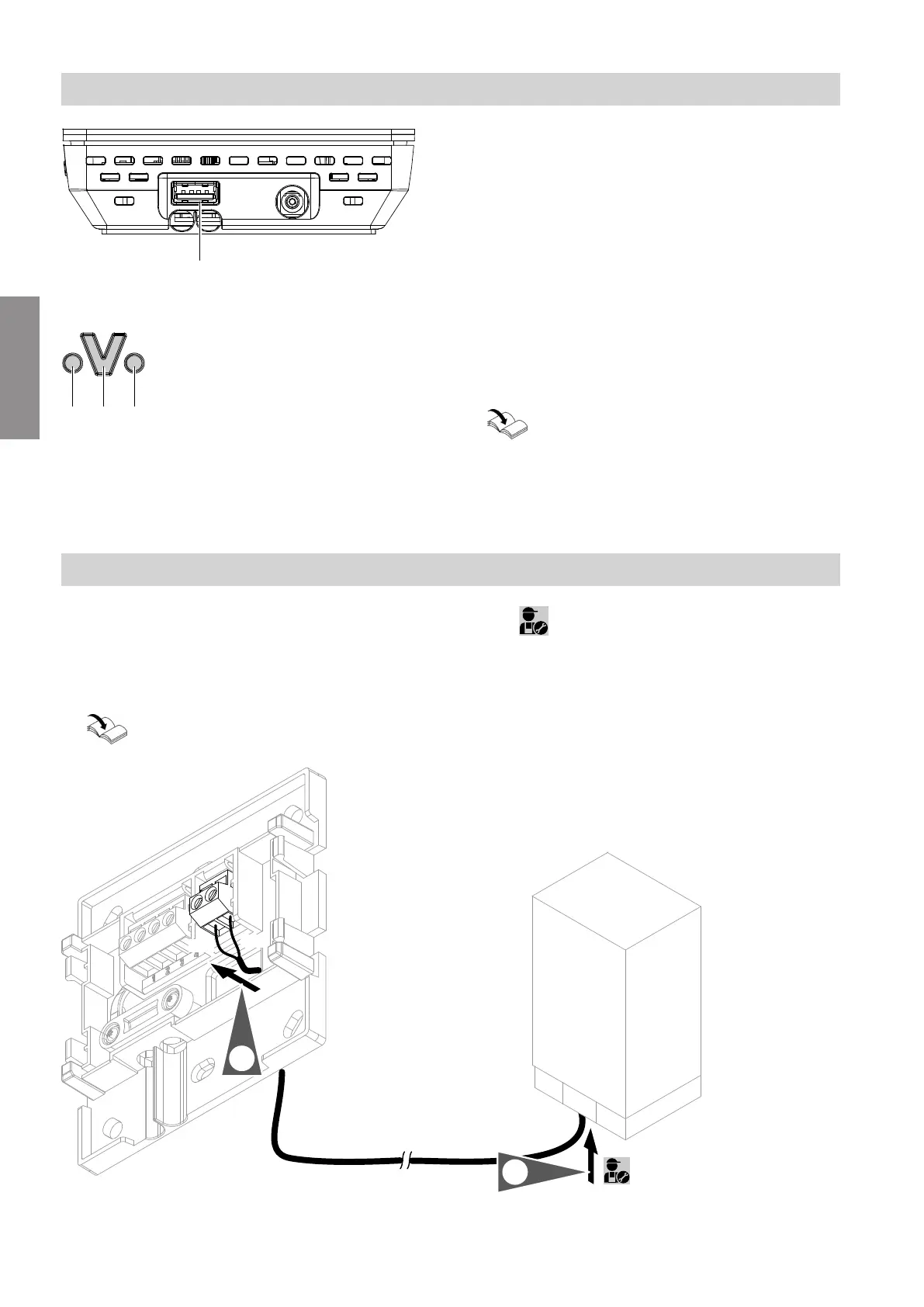

Fig. 6
1. Insert the USB plug of the Optolink/USB connect-
ing cable into connection
A
of the Vitoconnect.
C DB
Fig. 7
B
Fault display
C
Optolink interface
D
Operation indicator
2. Connect the Optolink plug of the Optolink/USB
connecting cable with the Optolink interface
C
at
the control unit of the heat generator.
Connection to the heat generator
Operating instructions of the heat generator
Connecting Vitoconnect, type OT2
Connecting Vitoconnect, type OT2 to the heat generator
1. Connect the OpenTherm connecting cable to the
heat generator.
Heat generator installation and service
instructions
2.
5
6
OT+
OT-
1.
Fig. 8
Installation sequence
Vitoconnect, connect type OPTO2 to heat generator
5813605
Installation
