Installation
Selection of installation equipment

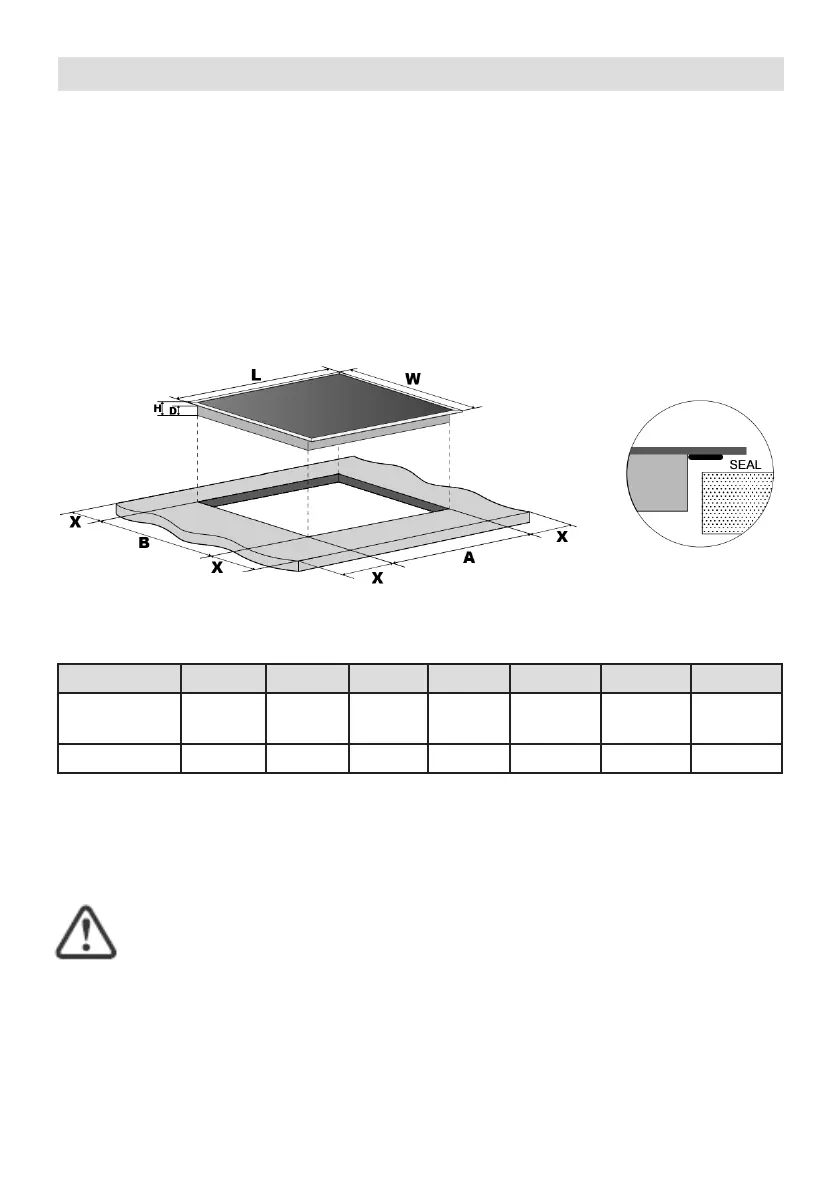

Cut out the work surface according to the sizes shown in the drawing.
For the purpose of installation and use, a minimum of 5 cm space shall be
preserved around the hole.
Be sure the thickness of the work surface is at least 30mm. Please select
heat-resistant work surface material to avoid larger deformation caused by the
heat radiation from the hotplate. As shown below:
Under any circumstances, make sure the induction cooker hob is well
ventilated and the air inlet and outlet are not blocked. Ensure the Induction
cooker hob is in good work state. As shown below
Model L(mm) W(mm) H(mm) D(mm) A(mm) B(mm) X(mm)
Viesta I4Z
Viesta I3Z
590 520 62 58 560 490 50 mini
Viesta I2Z 288 520 62.5 58.5 268
+ 4 500 + 4 50 mini
Note: The safety distance between the hotplate and the cupboard above
the hotplate should be at least 760mm.
