Viewpro A30TR - Control Box Printing (Viewport Version)

The input voltage cannot be higher than 6S.
The pin insertion interface cannot be connected with
power supply.
The yellow jumper cap cannot be removed
Front Side

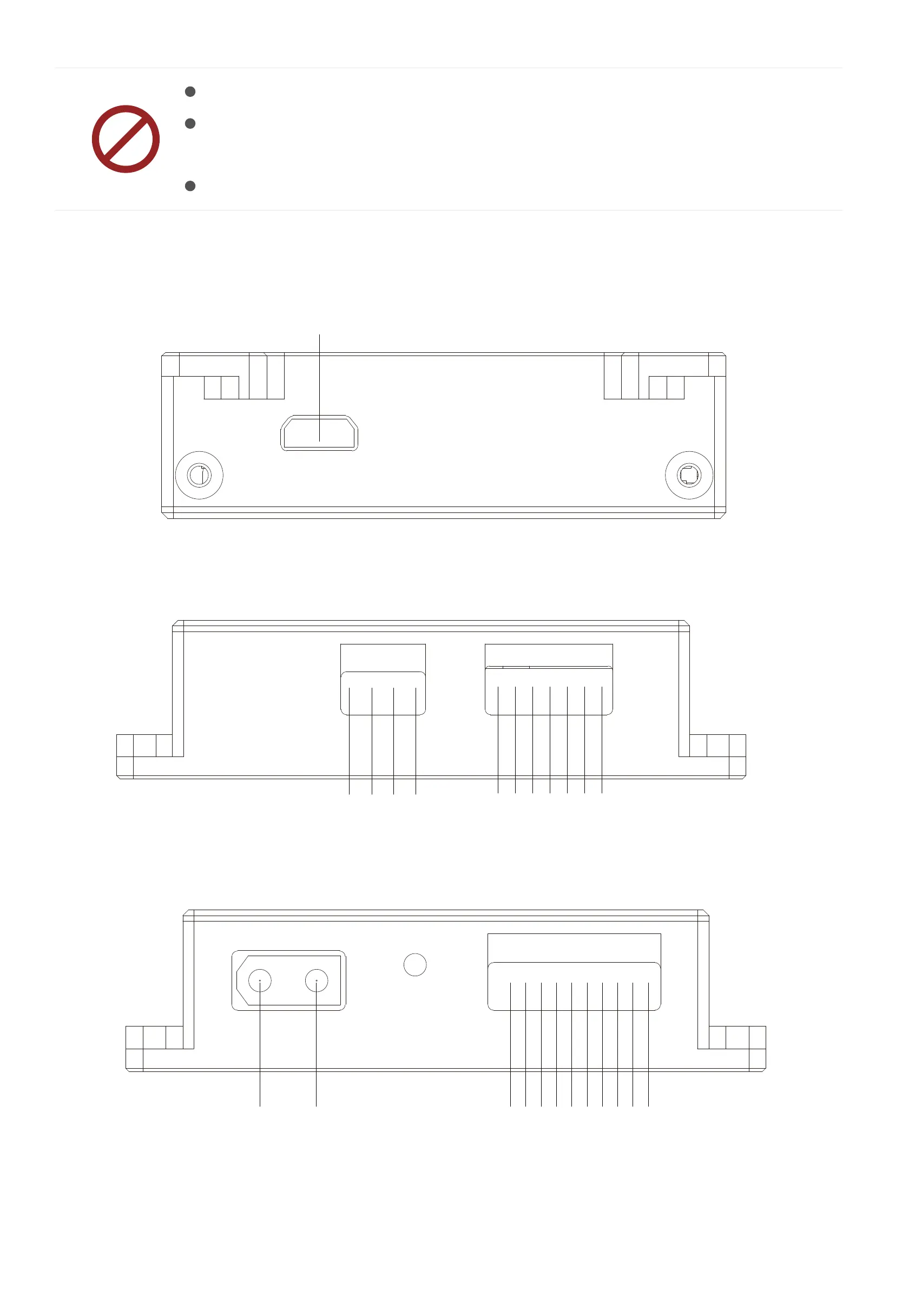

2.2.2 Control Box Printing (Viewport Version)
6.
Left Side
Right Side
HDMI
RX-
GND 5V S.BUS TTX GND RXD TXD
CVBS GND OUT MULTI FOCUS / PPM ZOOM MODE
YAW
PITCH
GND 3S~6S
PIC / REC
RX+ TX- TX+
