Viewpro ZIR35T - 3.1.3 PWM Control Operation: Zoom, Focus, Pic;Rec

16.

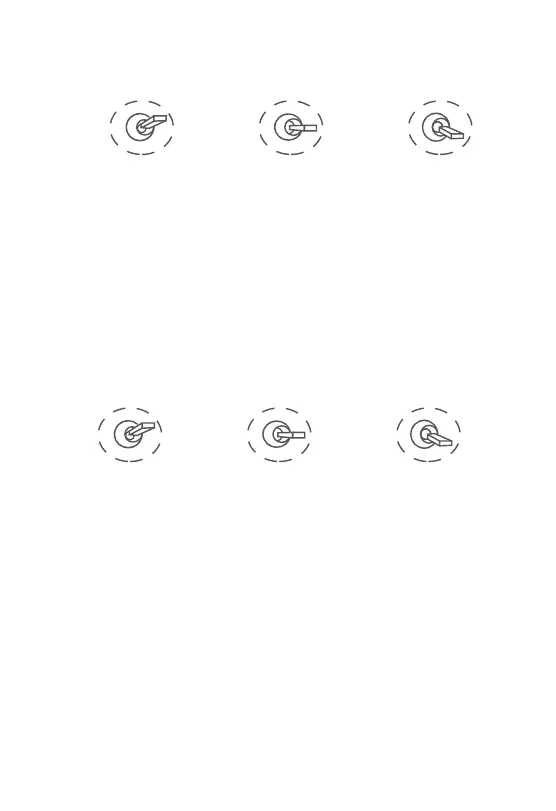

4) Zoom (PWM Zoom channel in to control Zoom. Joystick, rotary
knob or 3-gear switch on remote control are optional. 3-gear switch as
example.)
5) Focus (PWM Focus channel is to control IR color palette switch.
3-gear switch as example.)
6) Pic/Rec (PWM Pic/Rec channel in to control take picture and
record. Joystick, rotary knob or 3-gear switch on remote control are
optional. 3-gear switch as example.)
Switch from Position 2 to 3: IR color switching: white hot, black hot,
pseudo color.
Switch from Position 2 to 1: IR color switching: white hot, black hot,
pseudo color.
Switch from Position 2 to 3: IR digital zoom: 3x, 6x, 9x, 12x.
Low Gear
IR digital zoom
Position 1
Middle Gear
No control
Position 2
High Gear
IR color palette switch
Position 3
Low Gear
No control
Position 1
Middle Gear
No control
Position 2
High Gear
IR color palette switch
Position 3
