ViewSonic CDX4652-L - Daisy-chaining Displays

13

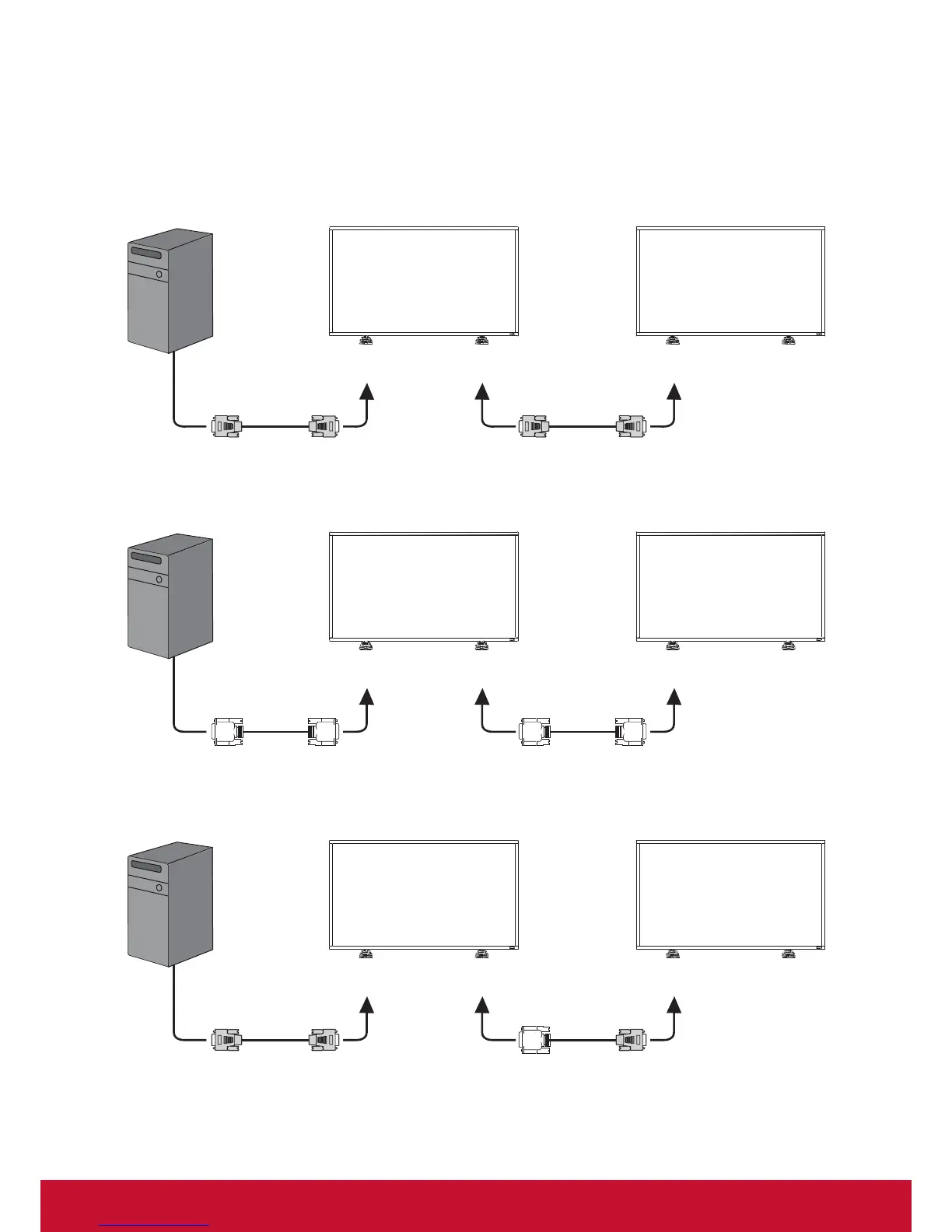

3.4. Connecting Multiple Displays in a Daisy-chain Configuration
<RXFDQLQWHUFRQQHFWPXOWLSOHGLVSOD\VWRFUHDWHDGDLV\FKDLQFRQ¿JXUDWLRQIRUDSSOLFDWLRQVVXFKDVDYLGHR
wall.
NOTE: 0D[LPXPGLVSOD\V[FDQEHXVHGLQDGDLV\FKDLQFRQ¿JXUDWLRQ
3.4.1. Display control connection
Connect the [RS232C OUT] connector of DISPLAY 1 to the [RS232C IN] connector of DISPLAY 2.
PC
DISPLAY 1 DISPLAY 2
[RS-232C IN][RS-232C] [RS-232C OUT] [RS-232C IN]
3.4.2. Digital video connection
Connect the [DVI OUT / VGA OUT] connector of DISPLAY 1 to the [DVI IN] connector of DISPLAY 2.
PC
DISPLAY 1 DISPLAY 2
[DVI IN][DVI] [DVI/VGA OUT] [DVI IN]
3.4.3. Analog video connection
Connect the [DVI OUT / VGA OUT] connector of DISPLAY 1 to the [VGA IN] connector of DISPLAY 2.
PC
DISPLAY 1 DISPLAY 2
[VGA IN][VGA] [DVI/VGA OUT] [VGA IN]
