ViewSonic E70F - 17" CRT Display - Page 70

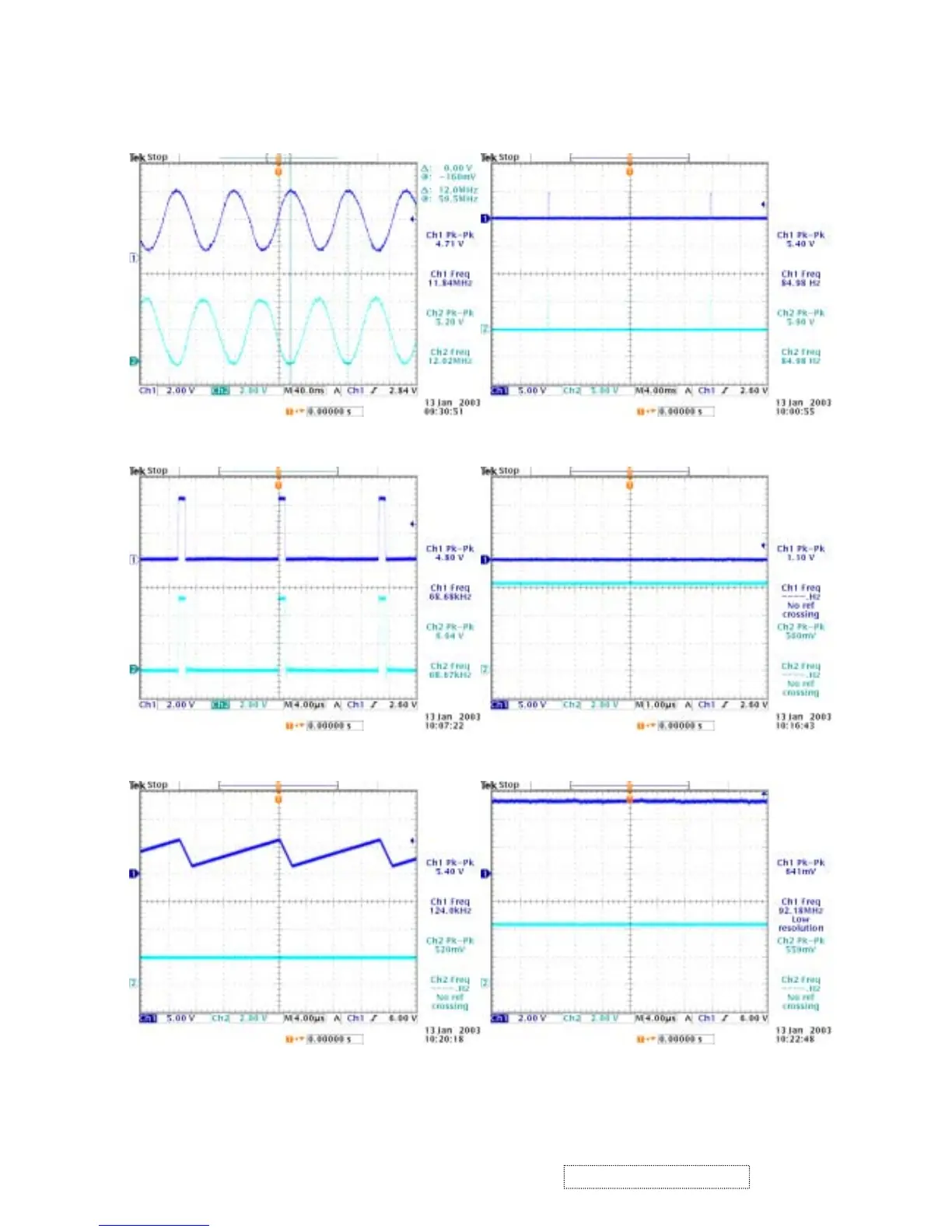

13
11
16
12
1=> Pin 42 (V-SYNC I) IC301
2=> Pin 33 (V-SYNC O) IC301
1=> Pin 8 (OSD O) IC301
2=> Pin 9 (OSD I) IC301
17
14
18
15
1=> Pin 3 (HLOCK) IC401
2=> Pin 4 (FC) IC401
1=> Pin 41 (H-SYNC I) IC301
2=> Pin 34 (H-SYNC O) IC301
2119
20 22
1=> Pin 6 (CO) IC401
2=> Pin 5 (HREF) IC401
1=>
2=> Pin 8 (RO) IC401
67
