Connecng the System Control Box to the Floor Base
1. Carefully unfold the System Control Box panel. Ensure the main system control
board is on the le.
NOTE: Use cauon as the System Control Box panel will be separated into two
pieces, however the wires are connected.

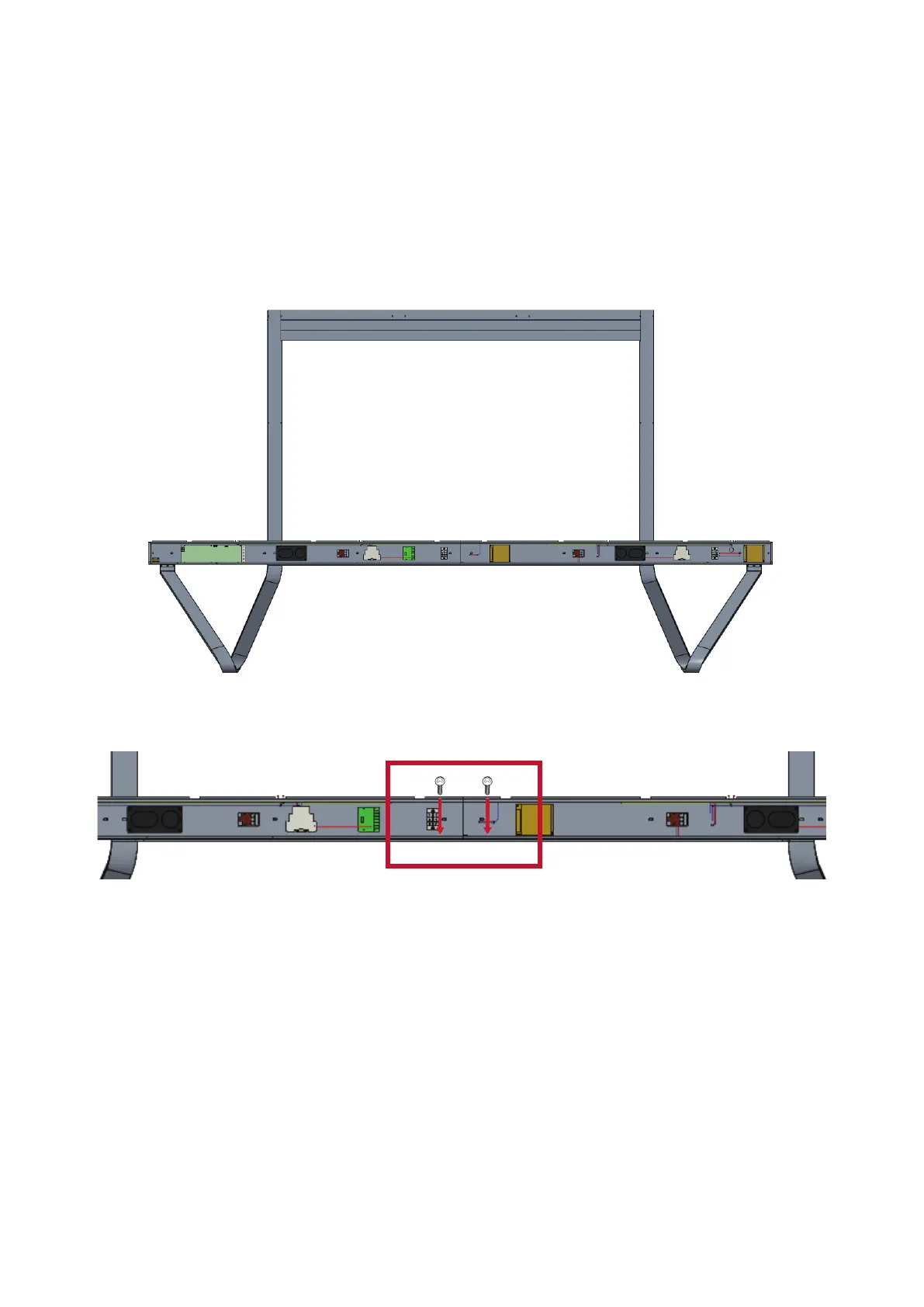

2. Align the System Control Box to the eight (8) holes on the Boom Cross Beam and
secure it with eight (8) screws (M6x10mm).
3. Install two (2) addional screws (M6x10mm) to connect the two halves of the
System Control Box.
