ViewSonic va1616w-8 - Page 27

- 27 –
Function Test Display Pattern
Item Test Content Pattern Specification Remark
1
Frequency &
Tracking
Fine Line Moire
Eliminate visual wavy
noise.
Figure 1
2
Contrast/Bright
ness
16 Gray Scale
16 gray levels sh should
be distinguishable.
Figure 2
3 Boundary
Horizontal & Vertical
Thickness
Horizontal and Vertical
position of video should
be adjustable to be
within the screen frame.
Figure 3
4
RGB Color
Performance
RGB Color Intensities
Contrast of each R, G,
B, color should be
normal.
Figure
4,5,6
5
Screen
Uniformity &
Flicker
Full White
Should be compliant
with the spec.
Figure 7
6
Dead
Pixel/Line
White Screen & Dark
Screen
The numbers of dead
pixels should be
compliant with the spec.
Figure 7,8
7 White Balance White & Black Pattern
The screen must have
the pure white and black
pattern, no other color.
Figure 9

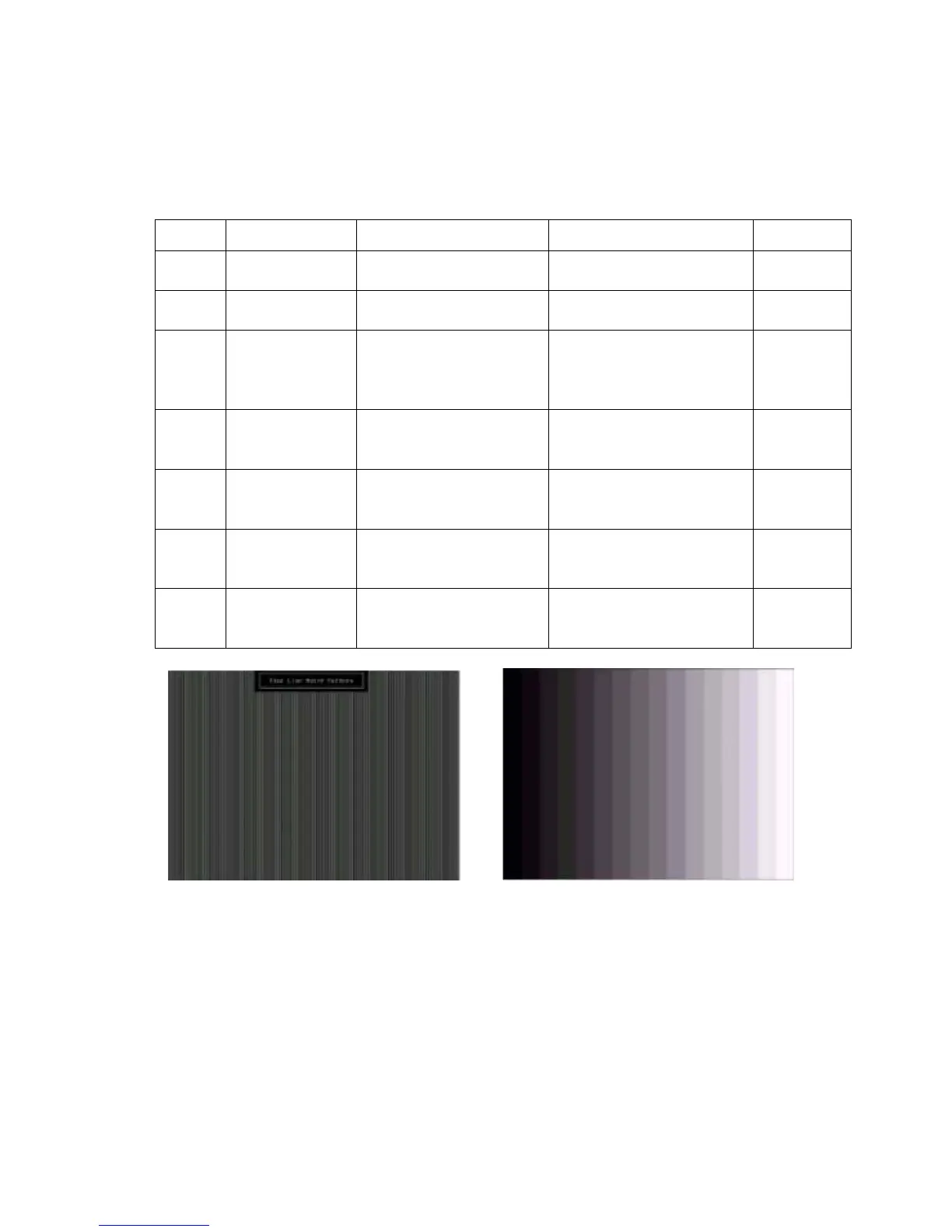

Fine Line Morie Pattern (Figure1) Gray Scale Pattern (Figure2)
