ViewSonic VA1721WMB - Page 33

- 33 –
ViewSonic Corporation
Confidential - Do Not Cop VA1721wmb

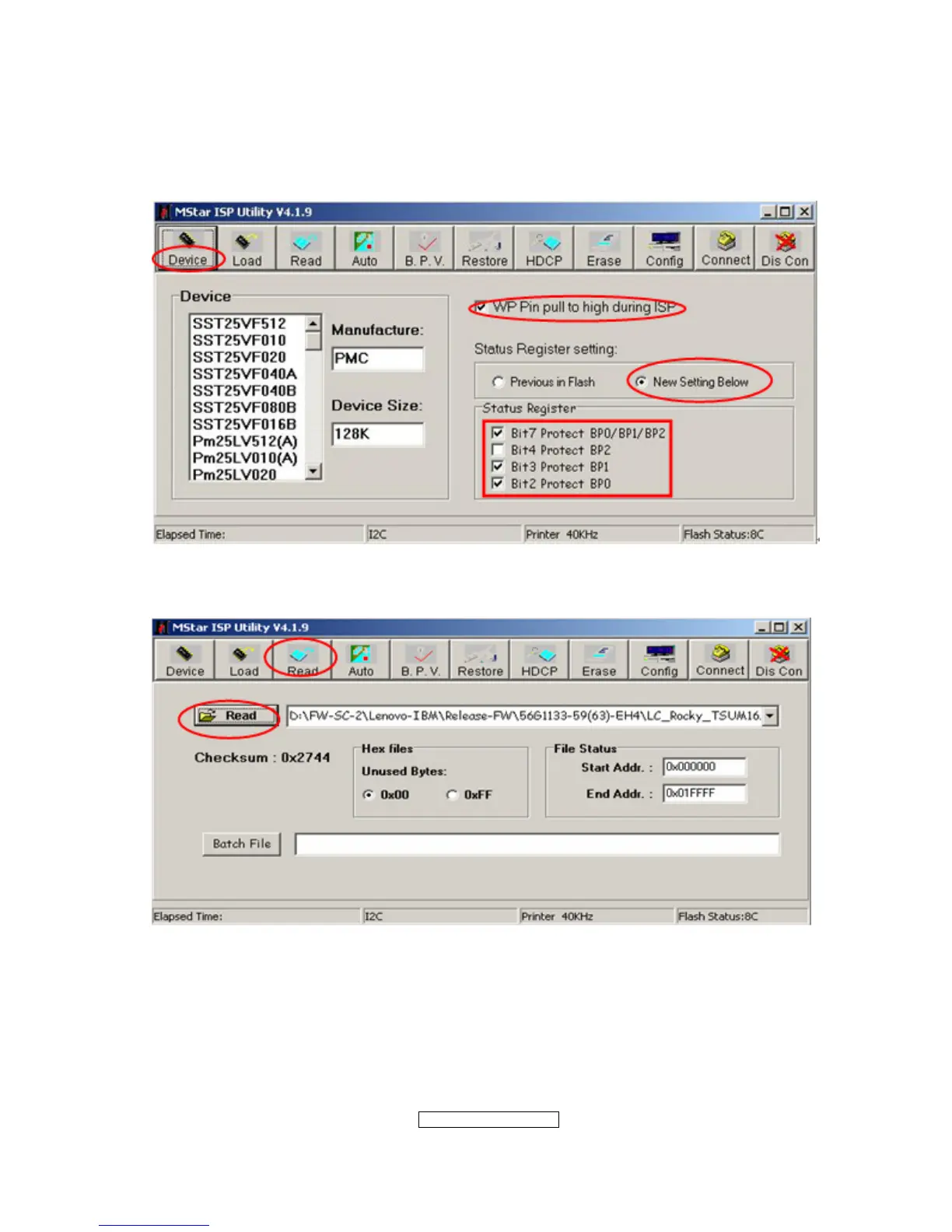

Step 3. Click “Device” button . Make sure that parameters relative to WP# is followed
bellow.
Step 4. Click “Read” button. Select the object bincode on your corresponding directory.
Step 5. Click “Auto” button. Be sure that function of Erase Device (File Area), Blank,
Program and Verify is selected, then execute the flashing action by clicking the “Run”
button.
