ViewSonic VA1912w-3 - Exploded Diagram and Exploded Parts List

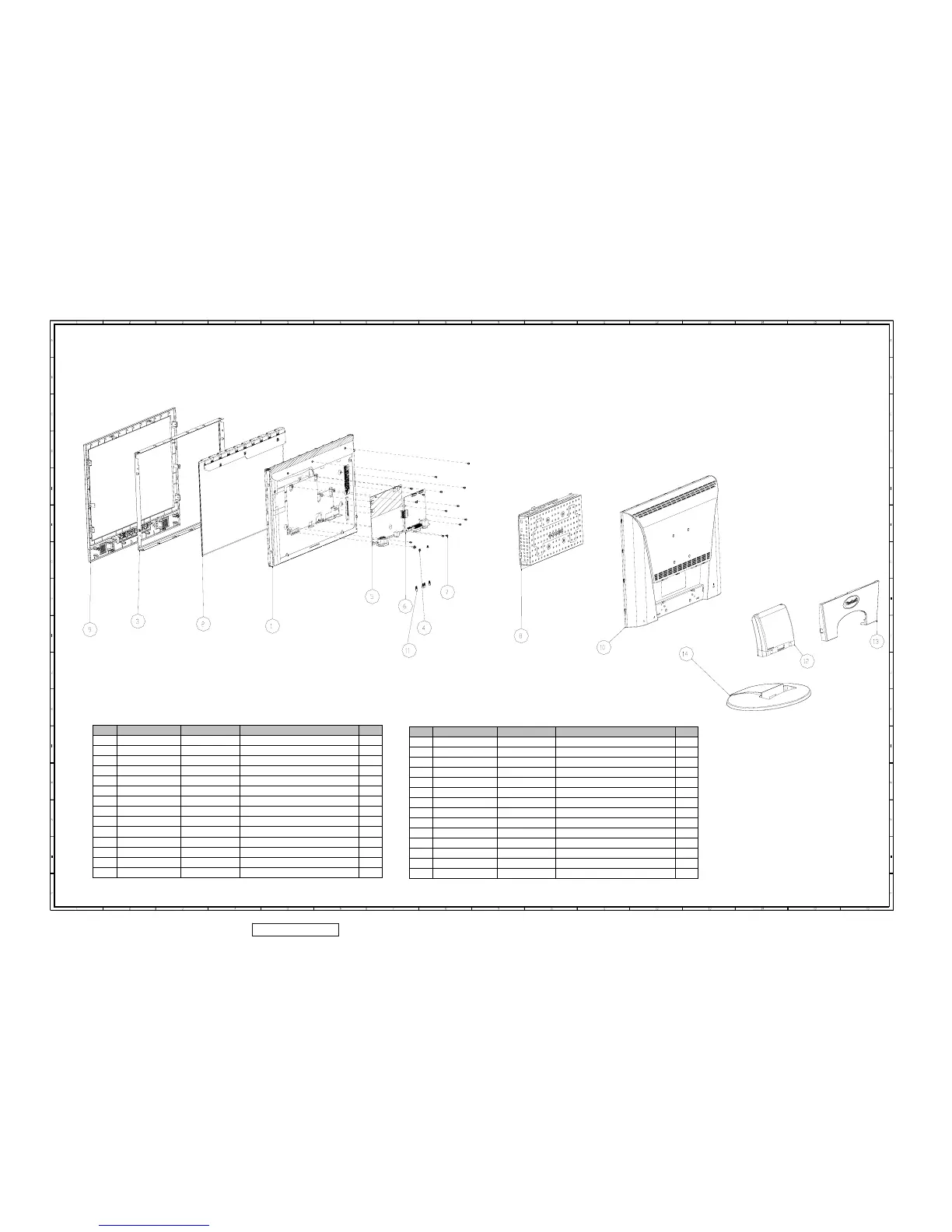

8. Exploded Diagram and Exploded Parts List
49
ViewSonic Corporation Confidential - Do Not Copy VA1912w-4_VA1912wb-4
ViewSonic Model Number: VS10866
Rev: 1a
Serial No. Prefix: QBK
Item ViewSonic P/N Ref. P/N Description Q'ty
1 N/A 44-D003584 BACKLIGHT UNIT 1
2 N/A L3J009XXXX PANEL ASSY 1
3 N/A 41-D000643 BACKLIGHT FRONT COVER 1
4 HW-00000553 42A9930008 SCREW M3*4L 2
5 B-00006039 27-D003247 POWER PCB ASSY 1
6 B-00005599 35-D005694 AD PCB ASSY 1
7 HW-00000553 42A9930008 SCREW M3*4L 7
8 C-00005686 41-D003772 AD COVER 1
9 C-00004281 40-D004255 BEZEL ASSY 1
10 C-00004282 40-D004257 REAR ASSY 1
11 N/A 42A9230001 SCREW D3*8L 4
12 C-00004283 40-D004252 STAND ASSY 1
13 C-00004284 40-D004250 COVER HINGE 1
14 C-00004285 40-D004259 SEAT ASSY 1
EXPLODED PARTS LIST (VA1912W-3)
ViewSonic Model Number: VS10866
Rev: 1a
Serial No. Prefix: QBN
Item ViewSonic P/N Ref. P/N Description Q'ty
1 N/A 44-D003584
BACKLIGHT UNIT 1
2 N/A L3J009XXXX
PANEL ASSY 1
3 N/A
41-D000643 BACKLIGHT FRONT COVER 1
4 HW-00000553 42A9930008
SCREW M3*4L 2
5 B-00006039
27-D003247 POWER PCB ASSY 1
6 B-00005599
35-D005694 AD PCB ASSY 1
7 HW-00000553
42A9930008 SCREW M3*4L 7
8 C-00005686
41-D003772 AD COVER 1
9 C-00004281
40-D004255 BEZEL ASSY 1
10 C-00004282 40-D004257
REAR ASSY 1
11 N/A 42A9230001
SCREW D3*8L 4
12 C-00004283 40-D004252
STAND ASSY 1
13 C-00004284 40-D004250
COVER HINGE 1
14 C-00004285
40-D004259 SEAT ASSY 1
EXPLODED PARTS LIST (VA1912WB-3)
