ViewSonic VE1920wmb-2 - Exploded Diagram and Exploded Parts List

Model
Title
Date Rev:
ViewSonic Corporation
Exploded chart

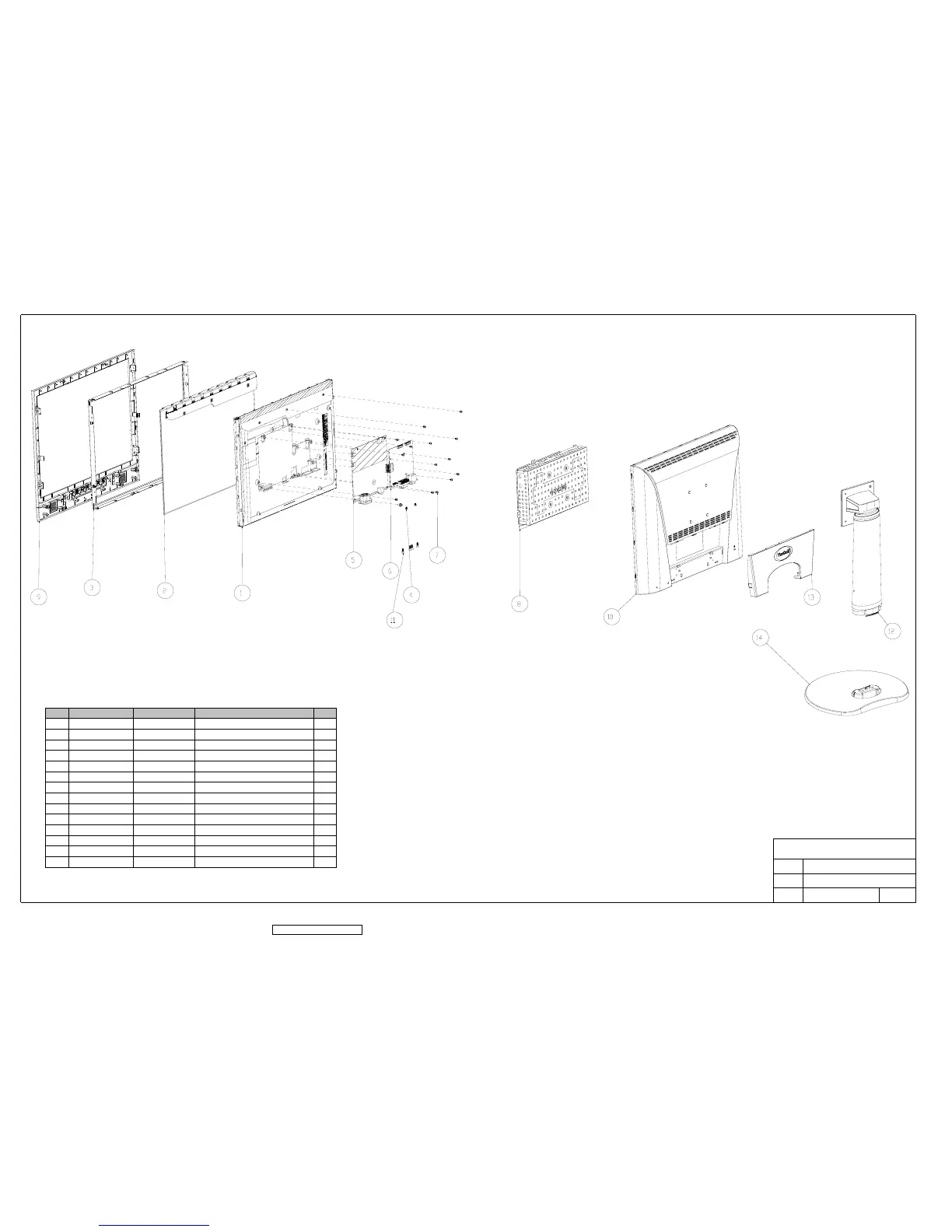

8. Exploded Diagram and Exploded Parts List
42
ViewSonic Corporation Confidential - Do Not Copy VE1920wmb-2
ViewSonic Model Number: VS10866
Rev: 1a
Item ViewSonic P/N Reference P/N Description Q'ty
1 N/A
44-D003904
BACKLIGHT ASSY 1
2 E-00005747
MJ0A10AK01
PANEL ASSY 1
3 N/A 41-D004053 BACKLIGHT FRONT COVER 1
4 HW-00000553 42A9930008 SCREW M3*4L 2
5 B-00006039 27-D003247 POWER PCB ASSY 1
6
B-00005705
35-D005062 AD PCB ASSY 1
7 HW-00000553 42A9930008 SCREW M3*4L 7
8 N/A 41-D002610 AD COVER 1
9 C-00006042 40-D010962 BEZEL ASSY 1
10 C-00006043 40-D008950 REAR ASSY 1
11 HW-00004042 42-D000649 SCREW D3*8L 4
12 C-00006044 40-D008951 STAND ASSY 1
13 C-00004284 40-D004250 COVER HINGE 1
14 C-00005847 40-D008680 SEAT ASSY 1
EXPLODED PARTS LIST (VE1920wmb-2)
