ViewSonic VX2240w User Manual

ViewSonic VX2240w 7
Wall Mounting (Optional) For use only with UL Listed Wall Mount Bracket
To obtain a wall-mounting kit, contact ViewSonic
®
or your local dealer. Refer to the
instructions that come with the base mounting kit. To convert your LCD display from a desk-
mounted to a wall-mounted display, do the following:
Step 1. Verify that the power button is turned Off, then disconnect the power cord.
Step 2. Lay the LCD display face down on a towel or blanket.
Step 3. Remove the plastic cover from the back of the LCD display.
Step 4. Remove the four screws attaching the base.
Step 5. Remove the rubber plugs from inside the four VESA screw holes.
Step 6. Attach the mounting bracket from the VESA compatible wall mounting kit (100 mm
x 100 mm distance), using screws of correct length.
Step 7. Attach the LCD display to the wall, following the instructions in the wall-mounting
kit.

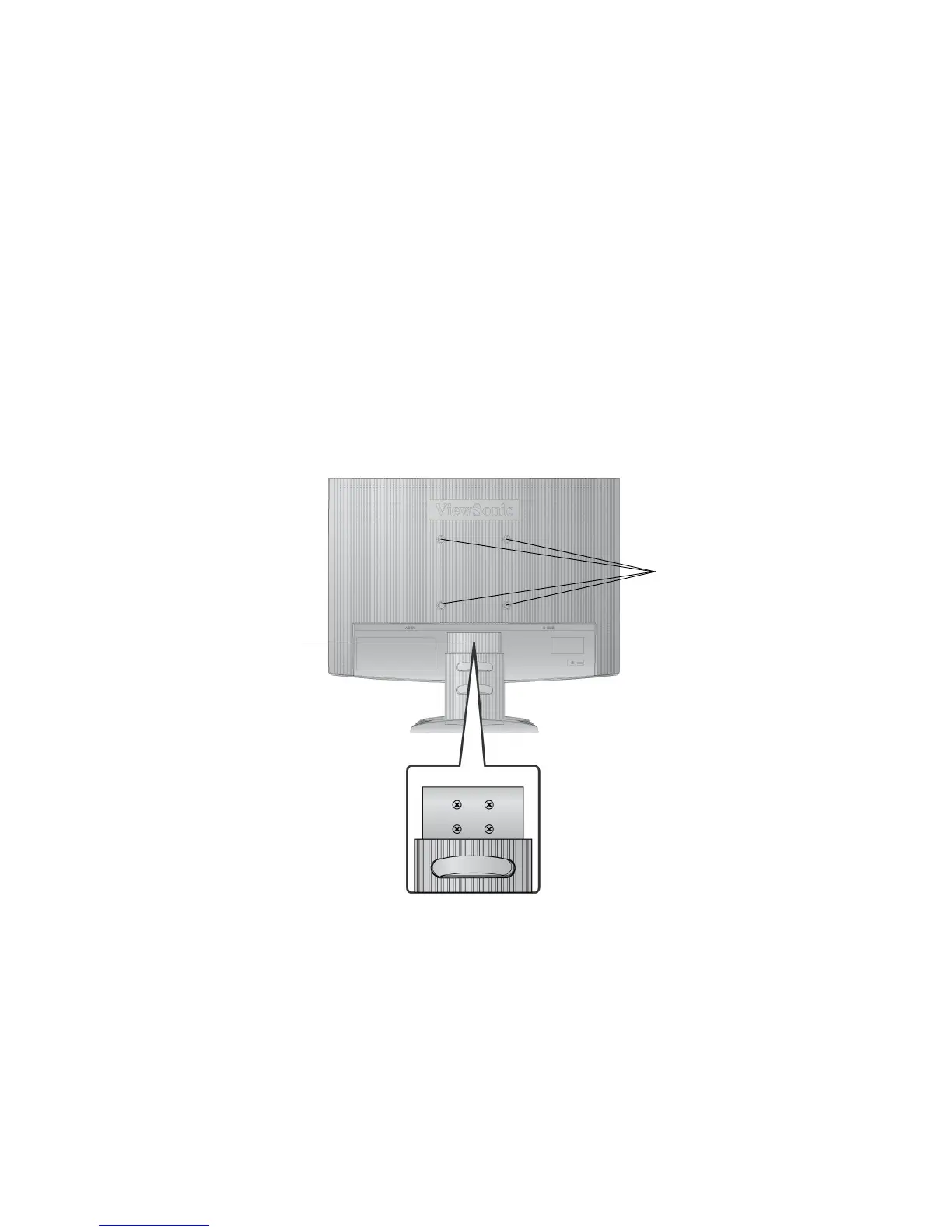

Step 5-6. Four
VESA screw holes
Step 3. Plastic cover
Step 4. Four screws
attaching the base

ViewSonic VX2240w Specifications

General

Pixel pitch	0.282 x 0.282 mm
Response time	2 ms
Display diagonal	22 \
Display resolution	1680 x 1050 pixels
Vertical scan range	50 - 75 Hz
Horizontal scan range	24 - 82 kHz
Contrast ratio (dynamic)	4000:1
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	170 °
Display brightness (typical)	300 cd/m²
HDCP	Yes
DVI-I ports quantity	0
Power requirements	AC 100 - 240 V, 50/60 Hz
Panel mounting interface	100 x 100 mm
Power consumption (typical)	38 W
Power consumption (PowerSave)	1 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Market positioning	-

Weight and Dimensions

Depth (with stand)	225 mm
Height (with stand)	432 mm
Depth (without stand)	61 mm
Width (without stand)	510 mm
Height (without stand)	55 mm
Weight (without stand)	5000 g
