ViewSonic VX2240w User Manual

ViewSonic VX2240w 10
Do the following to adjust the display setting:
1. To display the Main Menu, press button [1].
NOTE: All OSD menus and adjustment screens disappear automatically after about 15
seconds. This is adjustable through the OSD timeout setting in the setup menu.
2. To select a control to adjust, pressSorTto scroll up or down in the Main Menu.
3. After the desired control is selected, press button [2]. A control screen like the one shown
below appears.
4. To adjust the control, press the up S or down T buttons.
5. To save the adjustments and exit the menu, press button [1] twice.
The following tips may help you optimize your display:
• Adjust the computer's graphics card so that it outputs a 1680 x 1050 @ 60Hz video signal to
the LCD display. (Look for instructions on “changing the refresh rate” in the graphics card's
user guide.)
• If necessary, make small adjustments using H. POSITION and V. POSITION until the
screen image is completely visible. (The black border around the edge of the screen should
barely touch the illuminated “active area” of the LCD display.)

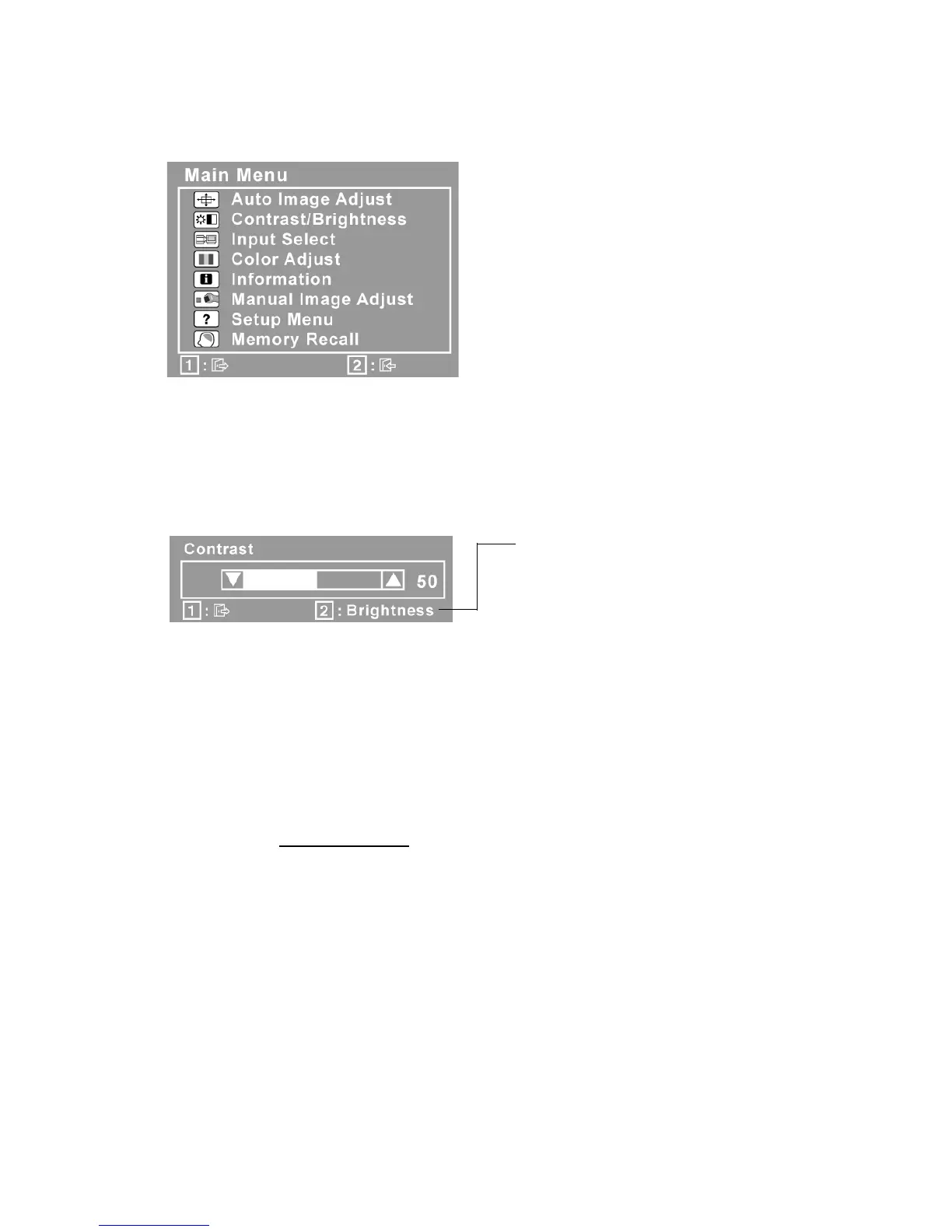

The line at the bottom of the screen shows
the current functions of buttons 1 and 2:
Exit or select the Brightness control.

ViewSonic VX2240w Specifications

General

Pixel pitch	0.282 x 0.282 mm
Response time	2 ms
Display diagonal	22 \
Display resolution	1680 x 1050 pixels
Vertical scan range	50 - 75 Hz
Horizontal scan range	24 - 82 kHz
Contrast ratio (dynamic)	4000:1
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	170 °
Display brightness (typical)	300 cd/m²
HDCP	Yes
DVI-I ports quantity	0
Power requirements	AC 100 - 240 V, 50/60 Hz
Panel mounting interface	100 x 100 mm
Power consumption (typical)	38 W
Power consumption (PowerSave)	1 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Market positioning	-

Weight and Dimensions

Depth (with stand)	225 mm
Height (with stand)	432 mm
Depth (without stand)	61 mm
Width (without stand)	510 mm
Height (without stand)	55 mm
Weight (without stand)	5000 g
